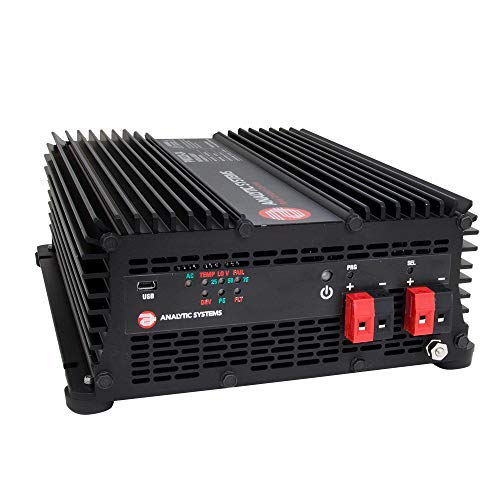

Analytic Systems PWI320-12 Intelligent AC Power Supply 12V 20/25A 300W

The Analytic Systems PWI320-12 is a Digital Signal Processor-controlled intelligent power supply that delivers 300 watts of reliable output power for communications equipment, control systems, and a wide range of electronic devices. Designed for professional applications, this rugged power supply features universal input voltage capability from 85-265 VAC at 50/60 Hz with Active Power Factor Correction for maximum efficiency.

The unit is factory preset to 13.6V (optimal for 12V battery charging applications) and delivers 20A continuous with 25A peak output current. Output voltage can be easily adjusted using the front panel controls or via the free PowerWizard software available from the manufacturer's website, providing flexible configuration for various applications.

Key Features:

• Digital Signal Processor (DSP) controlled for precise regulation
• Universal worldwide AC input (85-265 VAC, 50/60 Hz)
• Active Power Factor Correction for efficient operation
• Computer programmable via PowerWizard software
• Seven dual-color LEDs display output current levels and fault conditions
• Simple front panel voltage adjustment controls
• High vibration rugged duty construction
• Dry contact output fail relay for system integration
• CANbus, RS232, and remote control port options
• Integrated carrying handle for portability

Comprehensive Protection:

• Over-temperature shutdown with automatic recovery
• Current limiting and short circuit protection
• Input under-voltage shutdown
• Output overvoltage protection
• All protective features include automatic recovery

The PWI320-12 is backed by a five-year parts and labor warranty. For applications requiring MIL connectors, additional input/output filtering, and IP66-rated sealing, the PWI320MW variant is available.
