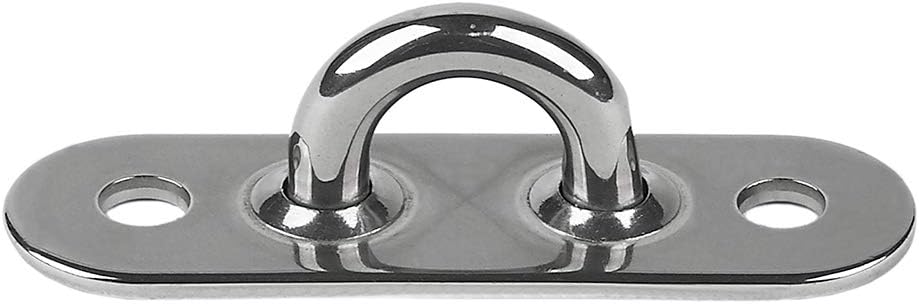

Schaefer Marine 78-03 Stainless Steel Welded Pad Eye 1/2-Inch

The Schaefer Marine 78-03 is a heavy-duty stainless steel welded pad eye designed for secure attachment points on boats and marine applications. This compact yet robust fitting features a fully welded construction that provides superior strength and reliability compared to cast alternatives.

Key Features:

• Marine-grade stainless steel construction resists corrosion in harsh saltwater environments
• Welded design eliminates weak points for maximum strength and durability
• Safe Working Load (SWL) of 650 lbs (295 kg) for securing lines, rigging, and equipment
• 1/2-inch (13mm) eye opening accommodates standard shackles and hardware
• Compact 2-inch (51mm) mounting length fits in tight spaces
• Pre-drilled for two #10 fasteners with 1-7/16-inch (37mm) center-to-center spacing
• Low profile design minimizes snag hazards on deck

Specifications:

• Eye Width: 1/2 inch (13mm)
• Eye Height: 1/2 inch (13mm)
• Eye Stock Diameter: 3/16 inch (5mm)
• Base Length: 2 inches (51mm)
• Base Width: 5/8 inch (16mm)
• Mounting: Two #10 fasteners (not included)
• Fastener Center-to-Center: 1-7/16 inches (37mm)
• Safe Working Load: 650 lbs (295 kg)

Ideal for deck hardware installations, anchor line management, sail control systems, and securing equipment aboard sailboats, powerboats, and workboats. The welded construction and marine-grade materials ensure long-lasting performance in demanding marine conditions.
