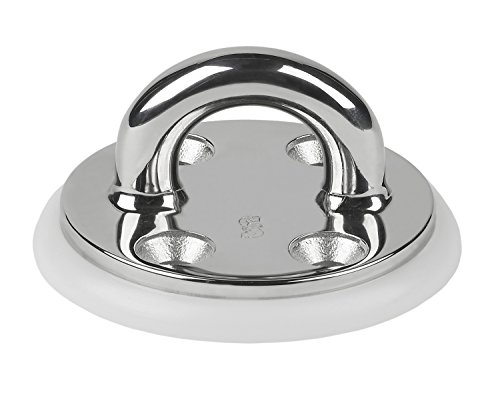

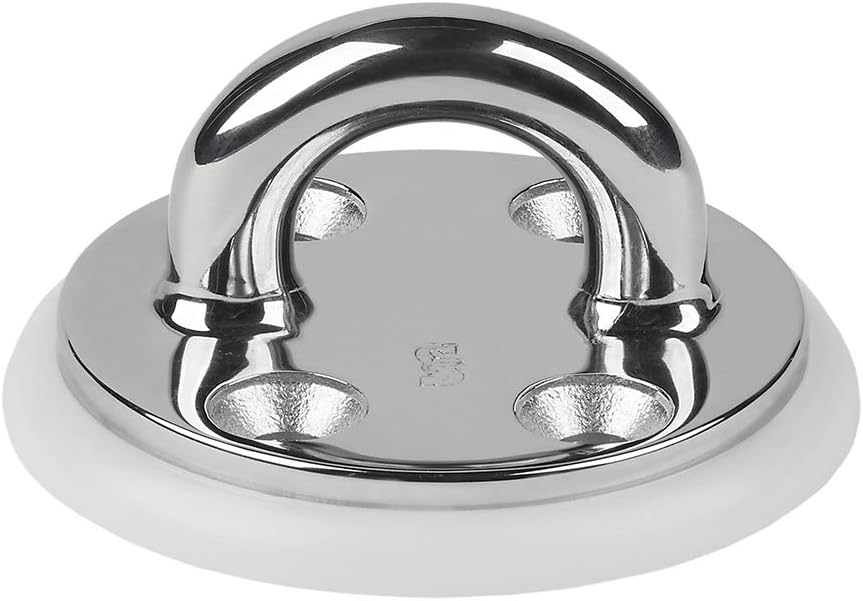

Schaefer Marine 78-07 Investment Cast Stainless Steel Pad Eye 2-1/2" Round Base

The Schaefer Marine 78-07 is a heavy-duty investment cast pad eye featuring a 2-1/2" diameter round base, designed for secure deck mounting on sailboats and marine applications. Constructed from premium 316 stainless steel for superior corrosion resistance in harsh marine environments, this pad eye includes an integrated Delrin™ base to protect deck surfaces and prevent corrosion between the hardware and mounting surface.

Key Features:

• Investment cast 316 stainless steel construction for maximum strength and durability
• Safe Working Load (SWL) of 4,000 lbs (1,800 kg)
• Integrated Delrin™ base protects deck finish and prevents galvanic corrosion
• 2-1/2" round base with 4-hole mounting pattern
• Eye dimensions: 1" width (25mm), 13/16" height (21mm), 3/8" stock diameter (10mm)
• Requires four 1/4" flathead fasteners (6mm, not included)
• Compatible with backing plate 97-53 (sold separately, recommended for maximum strength)

Specifications:

• Base Diameter: 2-1/2" (64mm)
• Mounting Hole Centers: A-C/C 1" (25mm), B-C/C 1-1/2" (38mm)
• Overall Height: 2-1/2" (64mm)
• Fastener Size: 1/4" flathead (6mm), quantity 4

Ideal for jib sheets, halyards, reef lines, and other high-load deck applications. The investment casting process ensures consistent quality and superior strength compared to stamped alternatives. For maximum holding power, use with Schaefer backing plate 97-53.
