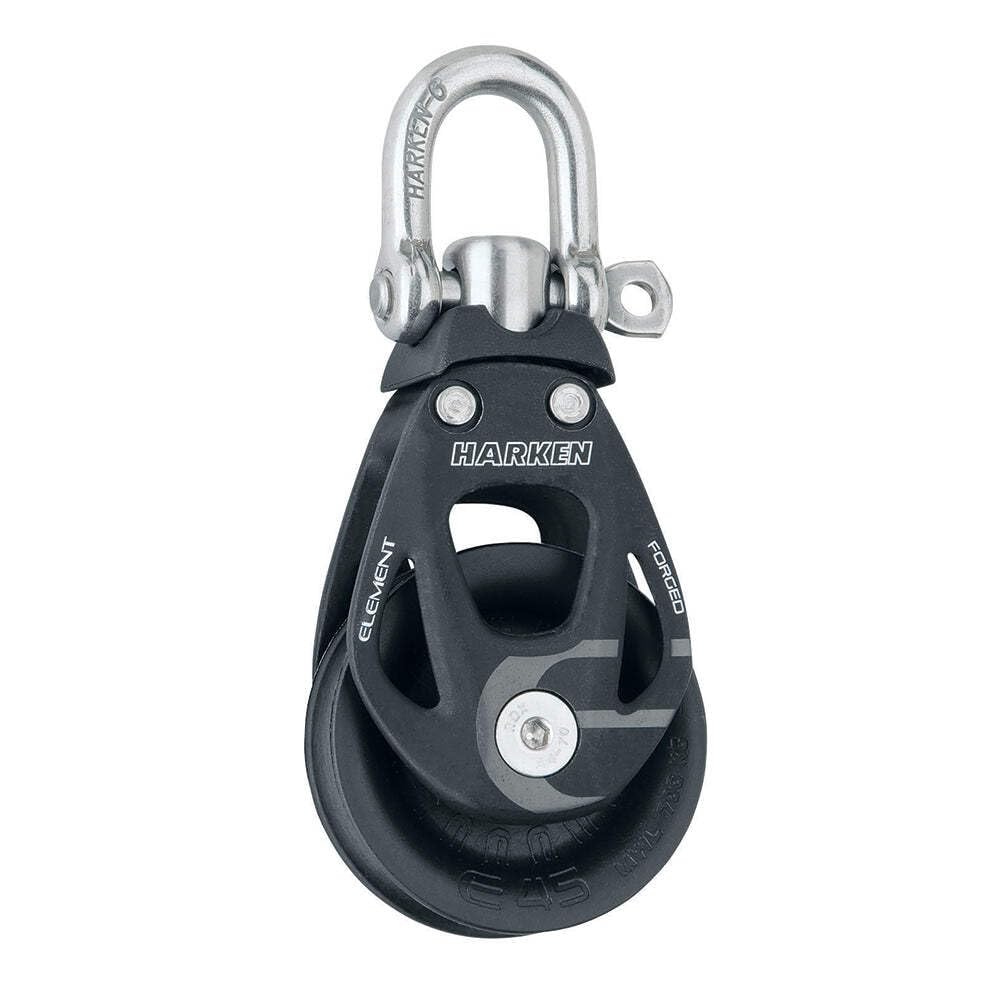

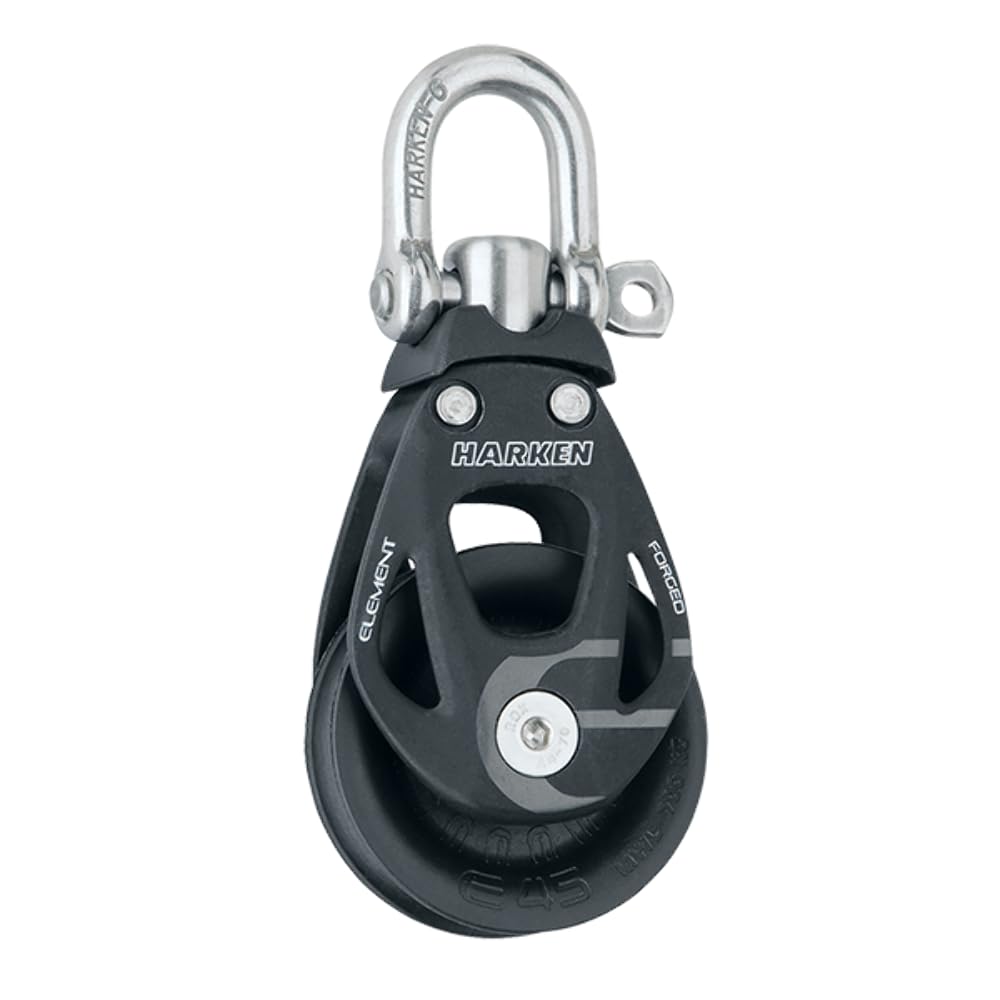

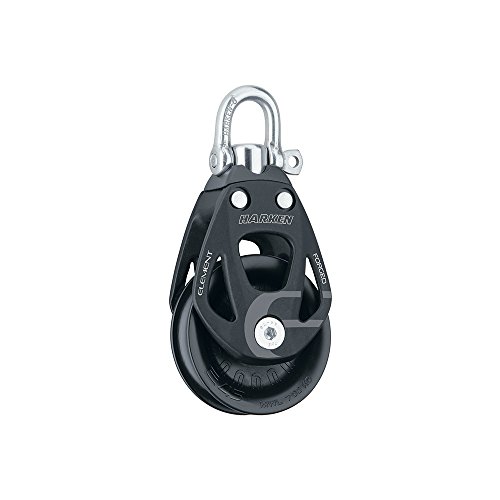

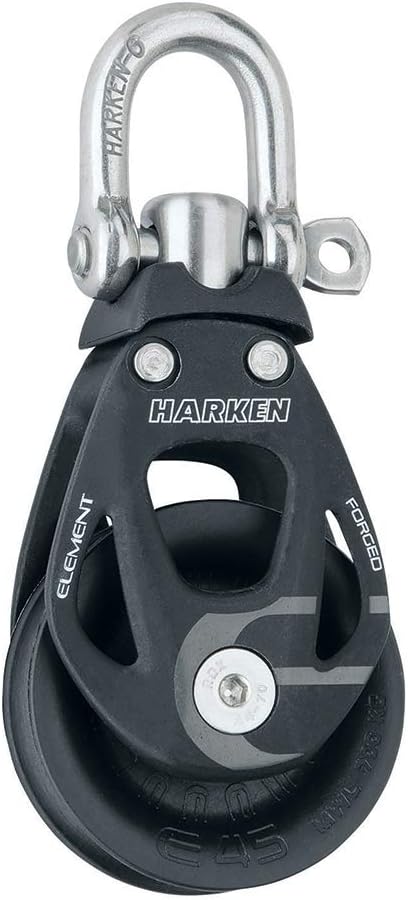

Element blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing.
Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.
| Specifications | |
| Sheave | 45 mm / 1 3/4" |
| Length | 102 mm / 4" |
| Weight | 103 g / 3.6 oz. |
| Shackle Pin | 6 mm / 1/4" |
| Maximum Line | 12 mm / 1/2" |
| Maximum Working Load | 700 kg / 1543 lb. |
| Breaking Load | 1400 kg / 3086 lb. |
