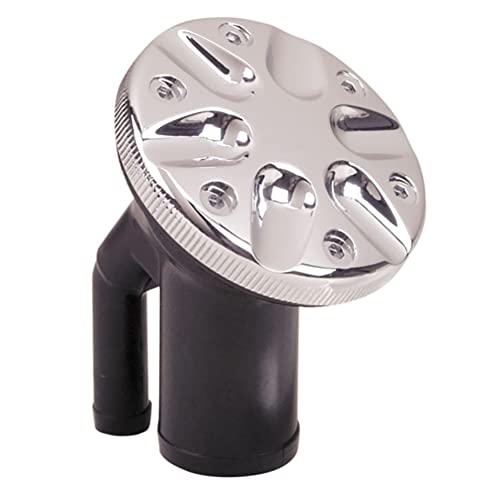

Perko 0590DPWCHR Vented Water Fill Deck Fitting 1-1/2" Hose Angled Neck Chrome Cap

The Perko 0590DPWCHR is a marine-grade vented water deck fill designed for freshwater tank filling aboard boats and other watercraft. Featuring an angled neck design that simplifies installation in tight deck spaces, this fitting accommodates 1-1/2" fill hose and includes an integral tank vent port for 5/8" vent hose — allowing air to escape the tank during filling without requiring a separate deck vent fitting.

The water-marked chrome-plated bronze cap is clearly labeled to prevent accidental fuel or diesel contamination of the freshwater system. A stainless steel bead chain keeps the cap tethered to the fitting at all times, preventing loss overboard. The body is constructed from a durable black polymer that resists corrosion in harsh marine environments. No deck plate key is required for operation.

Key Features:

• Chrome-plated bronze cap marked with water symbol for easy identification
• Black polymer body — corrosion resistant and durable
• Stainless steel bead chain retains cap to prevent loss
• Angled neck design for easier installation in confined deck areas
• Integral tank vent port accommodates 5/8" vent hose
• No deck plate key required

Specifications:

• Fill Hose Size: 1-1/2"
• Vent Hose Size: 5/8"
• Mounting Hole Diameter: 2-1/8"
• Flange O.D.: 3-3/8"
• Neck Length: 2-7/16"
• Mounting Screw Size: #8

Part of Perko's trusted 0590 series of angled vented fills, the 0590DPWCHR is a reliable and clean-looking solution for freshwater tank access on power boats, sailboats, and other marine applications.
