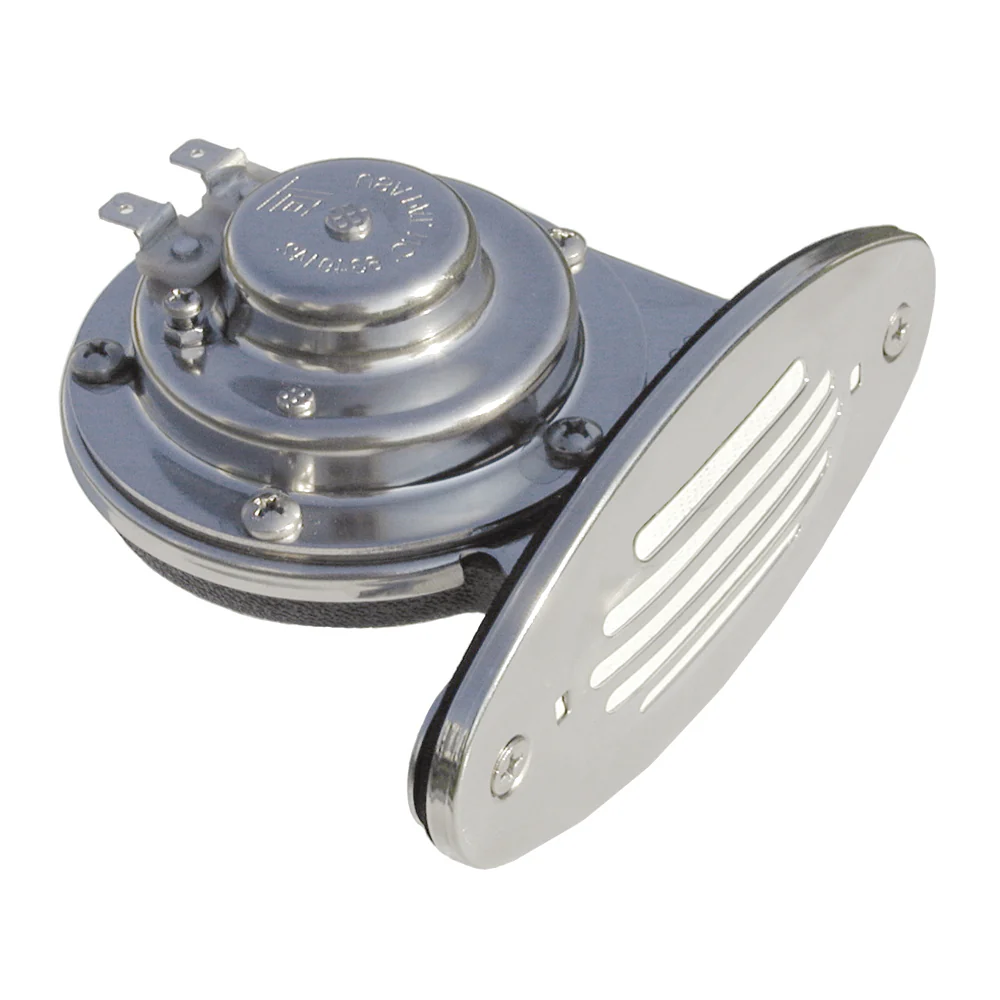

Schmitt Marine 10050 Mini Stainless Steel Single Drop-In Horn with SS Grill 12V Low Pitch

The Schmitt Marine 10050 is a compact, waterproof marine horn built entirely from 304 stainless steel — inside and out — for lasting corrosion resistance in harsh saltwater and freshwater environments. The sealed sound unit and included stainless steel grill provide a clean, low-profile installation that drops into existing helm cutouts without modification.

Delivering a powerful 106 dB at 1 meter, this 12V low-pitch horn produces a deep, resonant tone that carries clearly over open water. It meets ABYC A-23 standards for vessels up to 12 meters (approximately 39 feet), making it a compliant signaling solution for a wide range of powerboats and sailboats.

Key Features:

• 304 Stainless Steel construction inside and out, including the sealed sound unit — no rust, no corrosion
• 106 dB @ 1 meter installed — strong, audible low-pitch signal
• Meets ABYC A-23 requirements for boats up to 12 meters (approx. 39 ft)
• Pre-wired for fast, straightforward installation
• Drop-in design fits existing hole patterns — no new cutouts required
• Includes stainless steel waterproof grill
• 5-year warranty

Specifications:

• Voltage: 12V DC
• Pitch: Low
• Max Amp Draw: 3 Amps
• Horn Dimensions: 3" L x 3-1/4" W x 1-3/4" H
• Grill Dimensions: 4-7/8" x 2-3/8" with 4" hole centers
• Sound Rating: 106 dB @ 1 meter installed
• UPC: 768170100509

The Schmitt Marine 10050 is an ideal replacement or upgrade horn for boats where space is limited and corrosion resistance is critical. The drop-in design simplifies retrofits on both new and existing installations.
