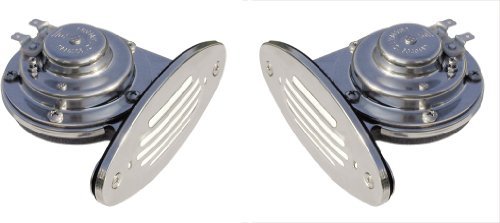

Schmitt Marine 10055 Mini Dual Drop-In Marine Horn with Stainless Steel Grills High & Low Pitch

The Schmitt Marine 10055 is a mini dual drop-in marine horn engineered for maximum corrosion resistance in harsh saltwater environments. Built entirely from 304 stainless steel inside and out — including a fully sealed sound unit and matching stainless steel grills — this 12V horn delivers reliable, powerful signaling rated at 114 dB at 1 meter installed. A waterproof gasket ensures moisture cannot compromise performance, making this an ideal replacement or upgrade horn for any vessel up to 12 meters.

Key Features:

• All 304 Stainless Steel construction — interior components, housing, and grills resist rust and corrosion
• Sealed sound unit with waterproof gasket for full marine-grade protection
• High & Low pitch dual horn set — both units included
• ABYC A-23 compliant for vessels up to 12 meters
• Pre-wired for quick, straightforward installation
• Drop-in design fits existing hole patterns for easy replacement
• 5-year warranty against rust and corrosion

Specifications:

• Voltage: 12V DC
• Sound Rating: 114 dB @ 1 meter installed
• Fundamental Frequency: 410 Hz ± 20
• Max Amp Draw: 6 Amps
• Lo Pitch Dimensions: 3" L x 3-1/4" W x 1-3/4" H (7.5 x 8 x 4.5 cm)
• Hi Pitch Dimensions: 3" L x 3-1/4" W x 1-3/4" H (7.5 x 8 x 4.5 cm)
• Grill Dimensions: 4-7/8" x 2-3/8" with 4" hole centers
• UPC: 768170100554

Whether replacing a worn-out horn or upgrading to a fully stainless setup, the Schmitt Marine 10055 offers a polished look and proven durability that stands up to the demands of saltwater boating.
