AFI 11034 Mini Hidden Marine Horn with Grill Mounting Bracket

The AFI 11034 Mini Hidden Horn with Grill Bracket is a compact, concealed electric marine horn built to withstand the demands of the harsh marine environment. Engineered by Marinco — the marine industry's leading horn supplier — this unit shares the same proven horn motor as the AFI 11031, with the addition of a grill mounting bracket for a clean, hidden-mount installation.

Critical components including the trumpets, motor cover, diaphragm, and all assembly and mounting hardware are constructed from stainless steel for long-lasting corrosion resistance. The Type 304 stainless steel diaphragm delivers a strong, reliable 105 dB(A) output at one meter with a fundamental frequency of 440 Hz — loud enough for compliance and safety on the water.

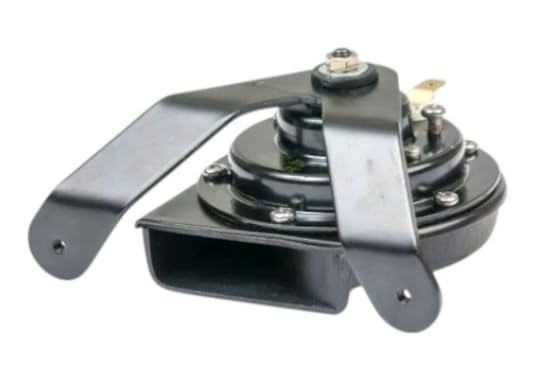

The included grill mounting bracket features 4 inches between mounting holes and is designed to accept the optional stainless steel fabric-lined grill (AFI part #11088, sold separately), allowing for a fully concealed installation. Operates at 12V DC with a maximum draw of just 3 amps.

Key Features:

• Same horn motor as AFI part number 11031
• Type 304 stainless steel diaphragm and critical components
• Output: 105 dB(A) at one meter
• Fundamental frequency: 440 +/- 20 Hz
• Maximum amp draw: 3 amps at 12V DC
• Dimensions: 3.25" W x 1.75" H x 3" L
• Mounting hole spacing: 4" between holes
• Includes grill mounting bracket
• Compatible with optional AFI stainless steel grill #11088 (sold separately)
• Not designed for installation in fully exposed areas

The AFI 11034 is ideal for OEM and aftermarket installations on powerboats, pontoons, wake boats, and other vessels where a concealed, low-profile horn solution is required.
