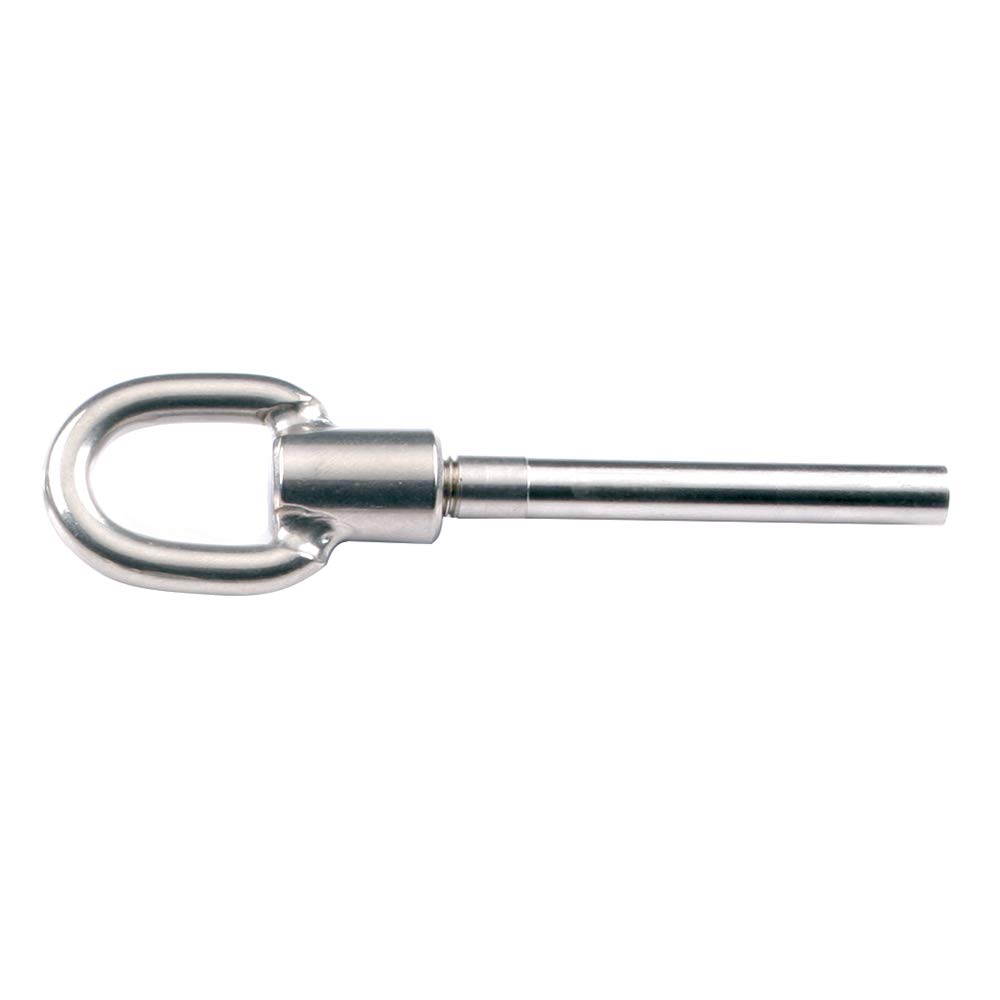

C. Sherman Johnson 27-407 Single Threaded Gate Eye for 3/16" Wire

The C. Sherman Johnson 27-407 is a single threaded gate eye terminal designed for use on marine lifeline gate openings. Constructed from 316 stainless steel, this fitting delivers excellent corrosion resistance and lasting durability in harsh saltwater environments. The crimp stud terminal threads directly into an eye nut, positioning the eye on the standing part of the lifeline wire to prevent slack when the gate is opened.

This single gate eye is used on one end of the gate area to provide a secure attachment point for pelican hooks. The threaded design allows the lifeline to be installed from any direction and links the lifeline and gate together for a solid, reliable connection. Installation requires a hand-crimp tool following the manufacturer's specified procedure.

Key Features:

• Constructed from 316 stainless steel for superior strength and marine-grade corrosion resistance
• Single threaded gate eye — crimp stud terminal threads into eye nut
• Designed for 3/16" lifeline wire
• Provides an attachment point for pelican hooks at gate openings
• Eye on the standing part of the wire prevents lifeline from going slack when gate is opened
• Hand-crimp terminal — properly installed fittings hold approximately 65–70% of the breaking strength of 7x7 stainless steel cable
• Not intended for standing rigging or other high-load applications

The C. Sherman Johnson 27-407 is a trusted component in sailboat lifeline systems, compatible with standard gate hardware and sold individually. Professional installation following the manufacturer's instructions is required for correct and safe application.
