Ronstan RC72504 Series 25 Composite Jib Lead Car for T-Track

The Ronstan RC72504 is a Series 25 composite jib lead car engineered for 25mm (1") T-track systems. Designed for small keel boats and sportsboats, this lightweight slide delivers a high-performance headsail sheet lead solution without the weight and corrosion penalties of traditional metal hardware.

The two-piece car body is molded from toughened, glass fibre reinforced nylon, providing low friction directly on anodised aluminium track — no separate inserts required. Virtually all metal components have been replaced with high-strength polymer and fibre equivalents, optimised using finite element analysis for maximum strength-to-weight characteristics.

Key Features:

• Lightweight composite construction — toughened glass fibre reinforced nylon body; weighs only 107g (3.8 oz)
• Integrated becket at the forward end accommodates 2:1 headsail sheet systems
• Removable M4 threaded pin — compatible with Dyneema® Link or a standard shackle for easy block and accessory changes
• Ergonomic plunger stop toggle at the rear of the car for easy one-handed adjustment from the cockpit
• Flush, contoured profile eliminates snagging of lines and sails
• Position indicator arrow on the side of the car for repeatable, precise sheeting angle settings
• Low-profile, compact design provides a low lead aft for the lead block

Specifications:

• Length: 102mm (4")
• Track Profile: T-Track (25mm)
• Maximum Working Load (M.W.L.): 500kg (1,100 lbs)
• Breaking Load (B.L.): 1,000kg (2,200 lbs)
• Weight: 107g (3.8 oz)
• Material: Toughened, glass fibre reinforced Nylon

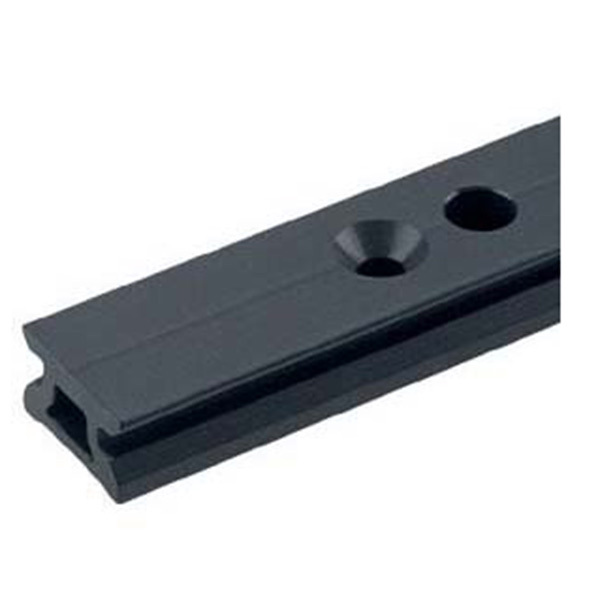

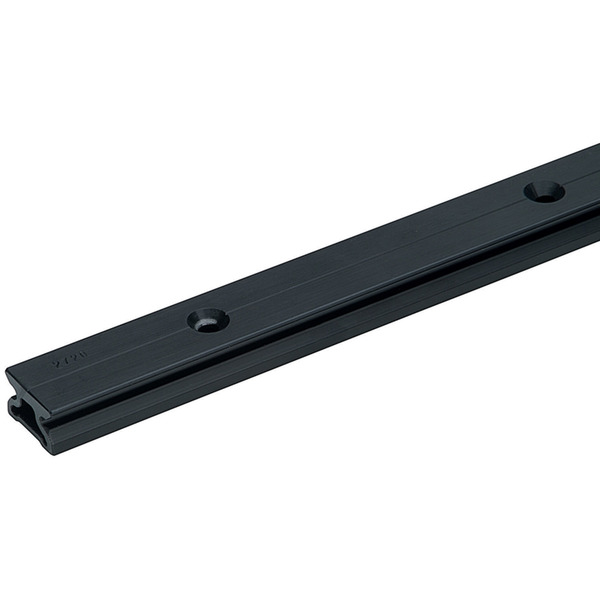

The Ronstan RC72504 is ideal for headsail sheet leads on sailboats up to 8m (26ft) LOA and pairs with Ronstan's Series 25 anodised aluminium T-track. Compatible with Ronstan's racing track featuring 25mm stop-hole spacing for enhanced precision.
