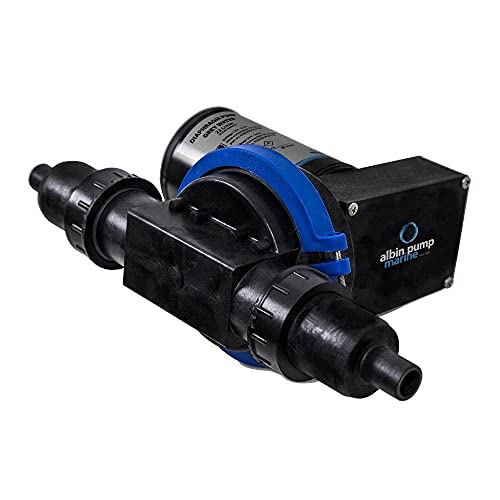

Albin 03-01-001 Waste Water Diaphragm Pump 22L 12V

The Albin 03-01-001 is a single-chamber, self-priming diaphragm pump designed for marine grey water and bilge water applications. With a flow capacity of 22 liters per minute (5.8 GPM), this 12-volt pump is ideal for shower drains, transfer operations, and pump-out systems on boats and RVs.

Key Features:

• Flexible installation with 360-degree rotational ports for easy plumbing configuration
• Quiet operation with low power consumption (4.5A fuse rating)
• Self-priming design operates without the need for an inlet filter
• Includes both 19mm (3/4") and 25mm (1") straight hose connectors
• Interchangeable with Johnson Pump model 10-13350-03

Technical Specifications:

• Voltage: 12V DC
• Flow Rate: 22 L/min (5.8 GPM)
• Fuse Rating: 4.5A
• Pump Type: Single chamber diaphragm
• Application: Bilge water, grey water, shower drain

This pump is CE marked and compliant with 94/25/ECC, ISO 8846 Small Craft standards, Electromagnetic Compatibility directive 89/336/EEC, and EN 51014 1993 radio disturbance requirements, ensuring reliable and safe operation in marine environments.
