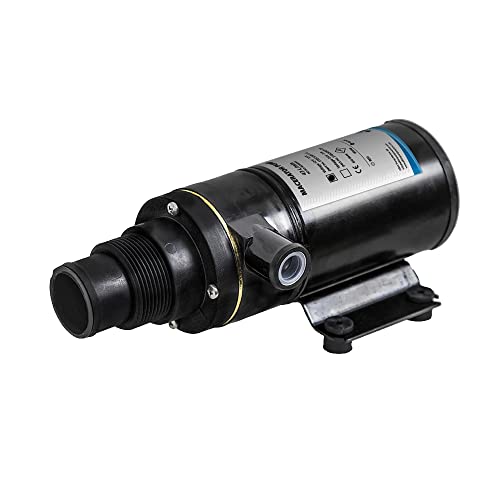

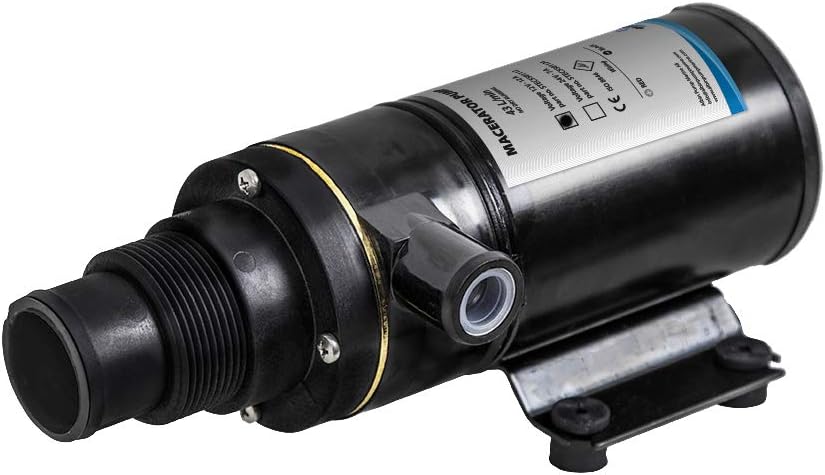

Albin 03-01-005 Waste Water Macerator Pump 12V 11.5 GPM

The Albin 03-01-005 is a heavy-duty 12V macerator pump designed for efficient black water discharge in marine applications. Equipped with a rotary cutter and impeller, this pump maccerates and pumps waste water at a high capacity of 43 liters per minute (11.5 GPM) at 4 meters total head.

Key Features:

• High-capacity output: 43 L/min (11.5 GPM) at 4m total head
• Self-priming up to 3 meters vertical lift for flexible installation
• Durable construction with brass and stainless steel internal components
• Thermopolymer pump body with long-lasting impeller
• Standard port sizes: 38mm (1.5") inlet and 25mm (1") outlet
• 12A fuse protection included
• Direct replacement for Jabsco 18590-2092 and Johnson Pump 10-24453-04

Technical Specifications:

• Voltage: 12V DC
• Type: Black water macerator
• Weight: 4.4 lbs (1.98 kg)
• Dimensions: 9.4"L x 3.5"H x 5.1"W
• CE marked to 94/25/ECC standards
• Compliant with ISO 8846 (Small Craft) and EN 50014 (Radio Disturbance)

This reliable macerator pump is ideal for marine sanitation systems on boats, yachts, and RVs requiring dependable waste water discharge. The rotary cutter effectively macerates solids while the robust impeller handles high-volume pumping with minimal maintenance.
