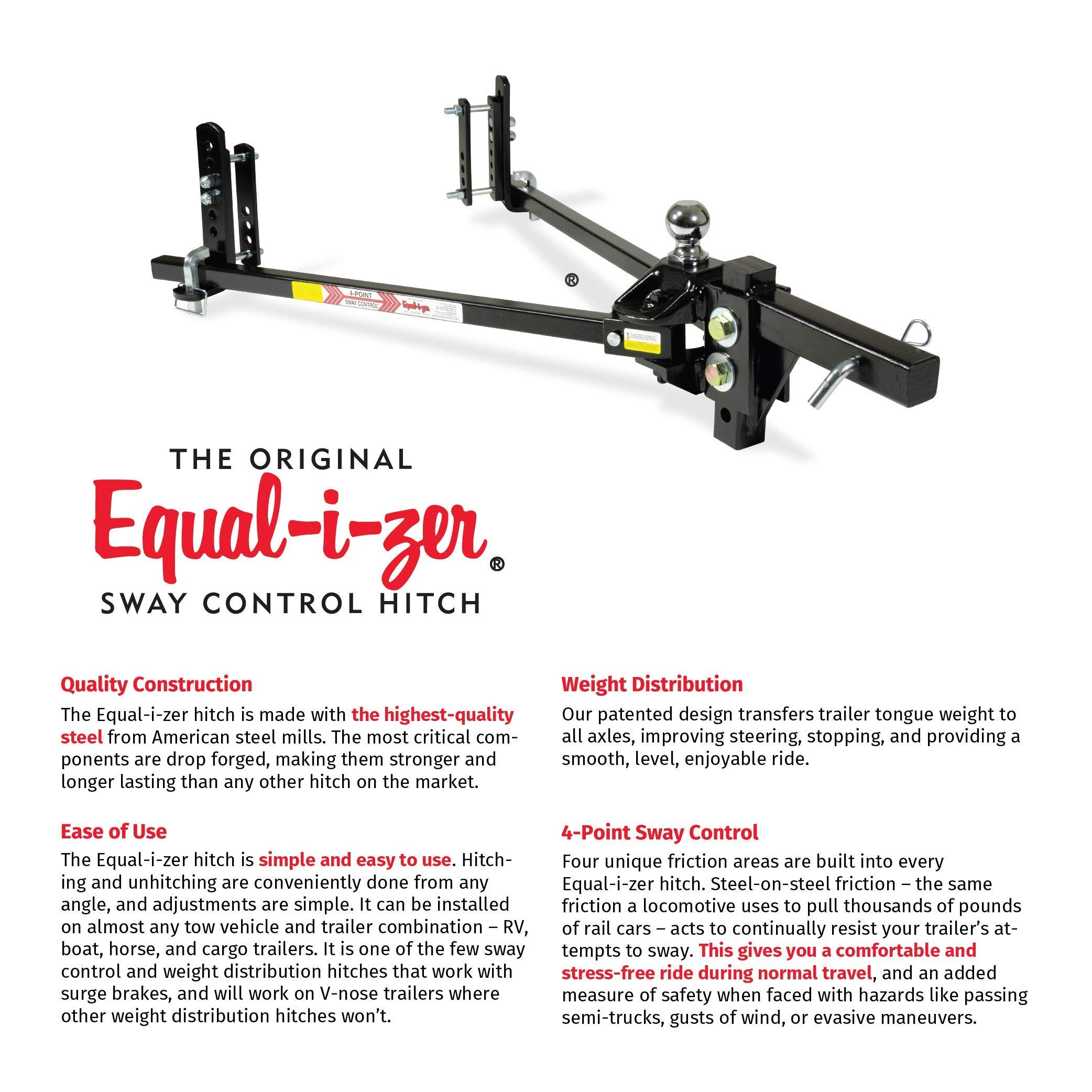

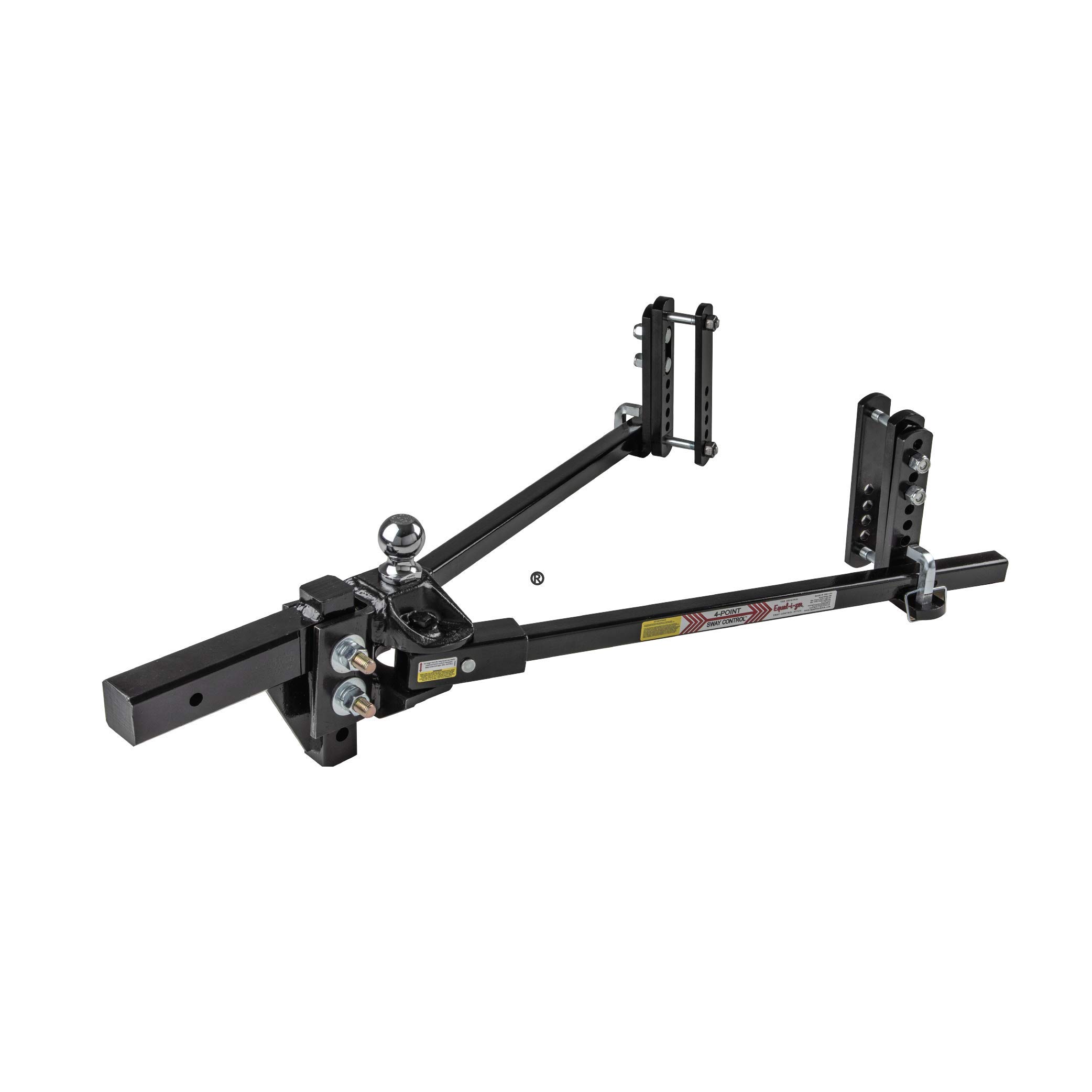

Equalizer 90001600 4-Point Sway Control Weight Distribution Hitch 16,000 Lbs

The Equalizer 90001600 is a heavy-duty weight distribution hitch system designed to improve towing stability and control for trailers up to 16,000 lbs. This complete 4-point sway control system uses advanced trunnion bar technology to effectively distribute tongue weight and eliminate dangerous trailer sway.

Key Features:

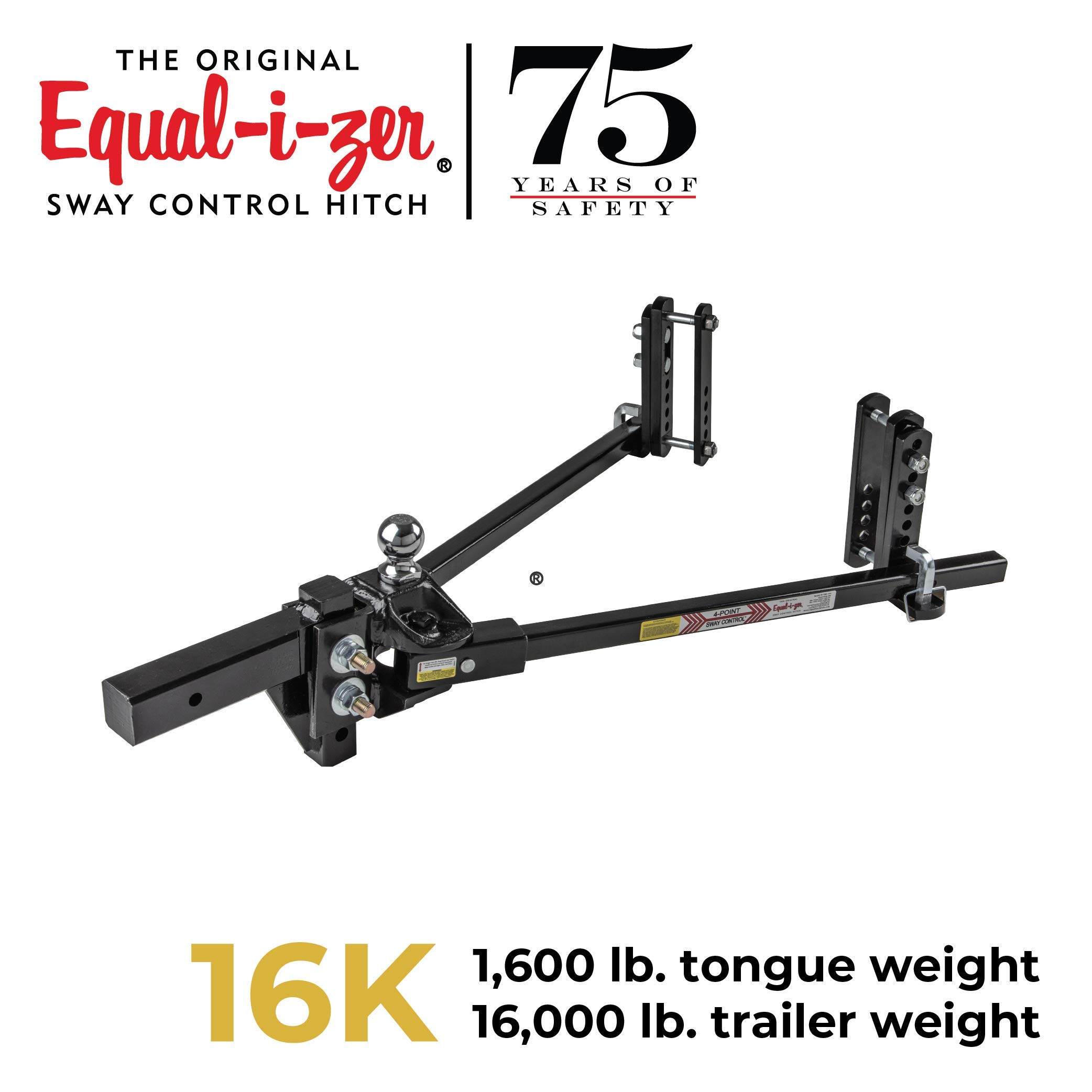

• 16,000 lbs gross trailer weight (GTW) capacity with 1,600 lbs maximum tongue weight rating
• Integrated 4-point sway control system for superior stability in crosswinds and passing traffic
• Trunnion-style spring bars for smooth, quiet operation without binding
• Fits standard 2-1/2 inch receiver hitches
• Includes adjustable shank with 3 inch drop or 6 inch rise capability (12 inch length)
• Designed for use with 2-5/16 inch hitch ball (ball sold separately)

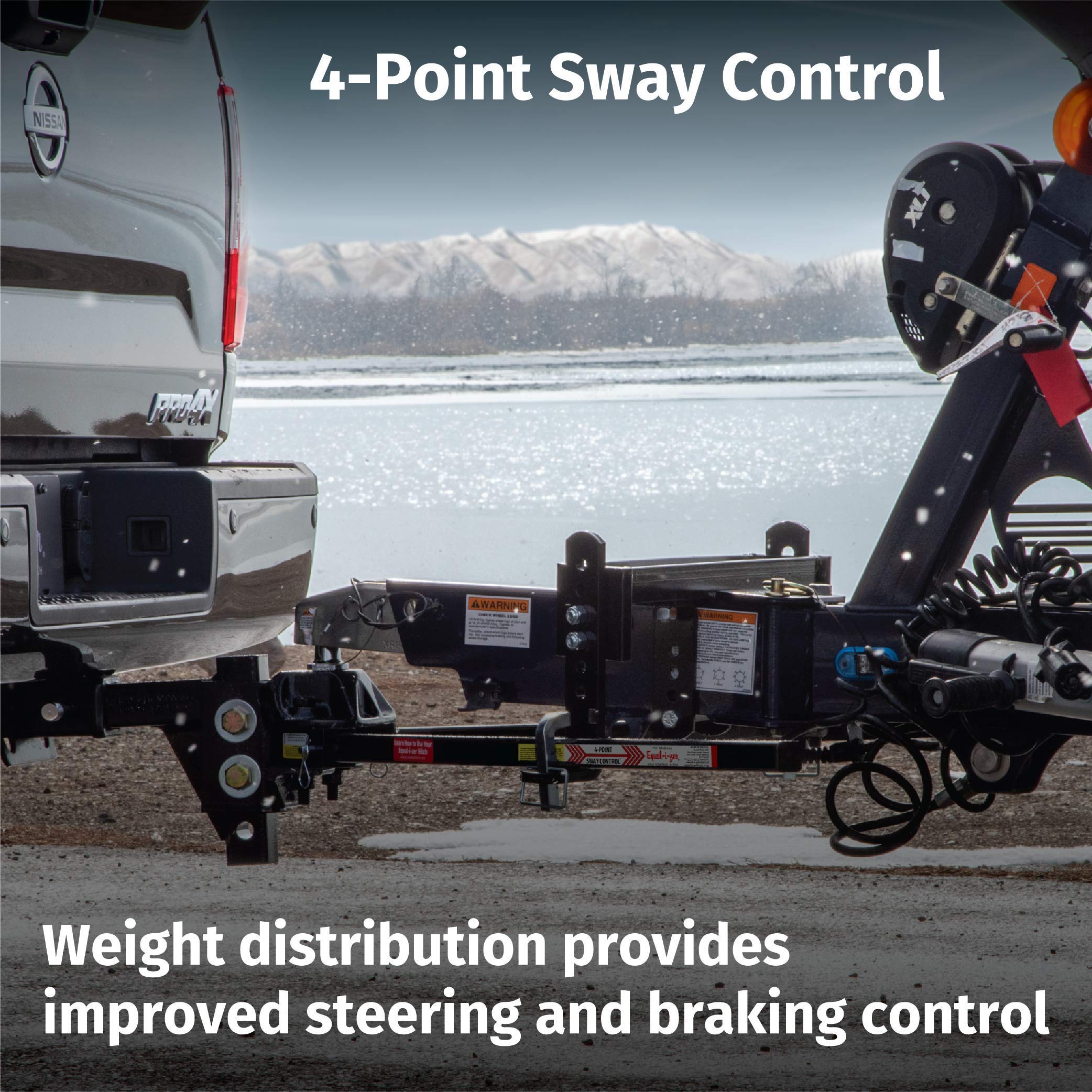

The Equalizer 4-point sway control design provides active sway resistance at all four connection points, significantly reducing trailer movement compared to traditional friction sway control systems. The trunnion bar design allows the spring bars to rotate smoothly during turns and articulation, reducing binding and wear while maintaining consistent weight distribution. This system is ideal for travel trailers, toy haulers, and other recreational trailers in the mid-weight category.

What's Included: Weight distribution head assembly, trunnion spring bars, adjustable shank, mounting brackets, and hardware. Hitch ball not included.
