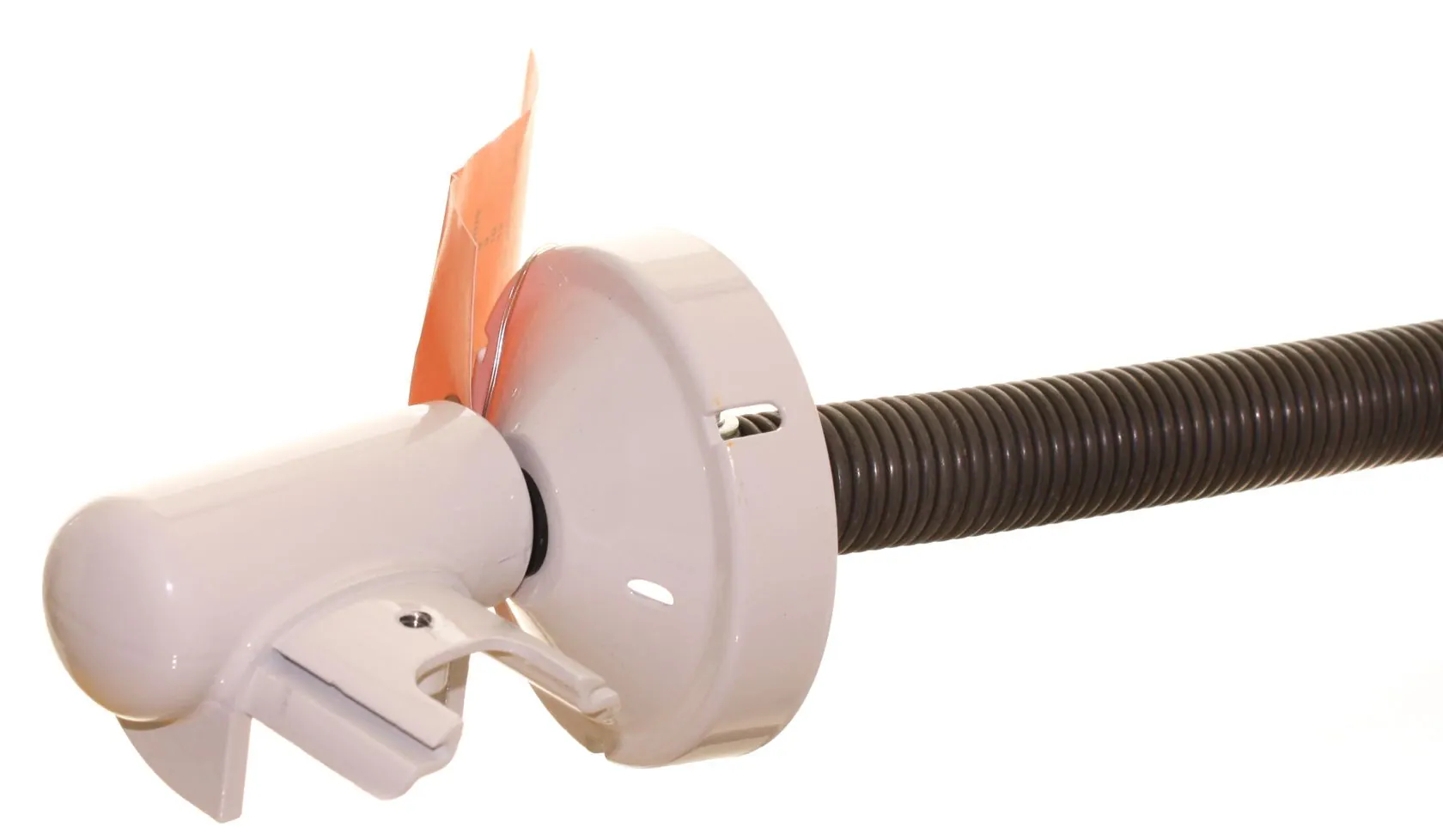

Dometic 3310420.017B Left Hand Torsion Assembly for 9100 Power Awning - Polar White

The Dometic 3310420.017B is a replacement left hand torsion arm assembly designed specifically for Dometic A&E 9100 Series power awnings. This critical component features a wound coil spring that provides consistent tension on the roller tube, enabling the awning to retract smoothly into the travel position.

Complete Assembly Includes:

• Wound coil torsion spring for proper roller tube tension
• Torsion rod and pin drive mechanism
• Top casting in polar white finish
• Three blind rivets for installation
• Detailed replacement instructions

Product Specifications:

• Arm Position: Left hand (driver side)
• Overall Length: 39 inches
• End Cap Outside Diameter: 3-13/16 inches
• Casting Color: Polar White
• Features new style slotted torsion stabilizer design

This genuine Dometic replacement part is compatible with Dometic 9100 Series power awnings, including the WeatherPro Power Awning and 9100 Sport models. The assembly installs on the left side of the awning and serves as a direct replacement for worn, damaged, or broken torsion assemblies.

Important Safety Note: Installation requires careful handling of the tensioned spring mechanism. The rapid casting spin-off can occur if not properly controlled during installation. Do not remove the cotter pin in the end cap until the top casting is securely fastened to the mounting hardware. Professional installation is recommended for those unfamiliar with awning spring tension systems.
