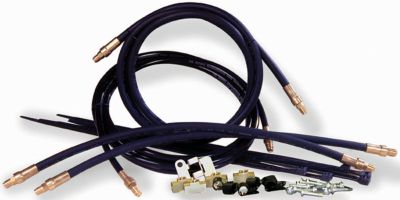

Dexter K71-G02-58 Single Axle Hydraulic Brake Line Kit

The Dexter K71-G02-58 is a complete flexible hydraulic brake line kit designed for single-axle trailers equipped with either drum or disc brakes. This comprehensive kit provides everything needed to connect your brake actuator to the axle brakes on leaf spring and torsion-style axle trailers.

Key Features:

• DOT-approved flexible brake hoses rated for 3000 PSI working pressure
• 20-foot (240-inch) main line runs from brake actuator to axle tee fitting
• Corrosion-resistant brass union fittings for marine and trailer applications
• Compatible with surge brake actuators and power brake actuators (vacuum/hydraulic, air/hydraulic, electric/hydraulic)
• Approved for use with floating caliper disc brakes and drum brakes
• Includes all necessary hardware for complete installation

Kit Includes:

• (2) 24-inch DOT flex hoses
• (1) 76-inch DOT flex hose
• (1) 240-inch (20-foot) DOT flex hose
• (5) Cable ties
• (2) Brass tee fittings (3-way female)
• (1) Tee plug
• (4) Cable clamps
• (8) Self-tapping screws
• (2) Tee clamps

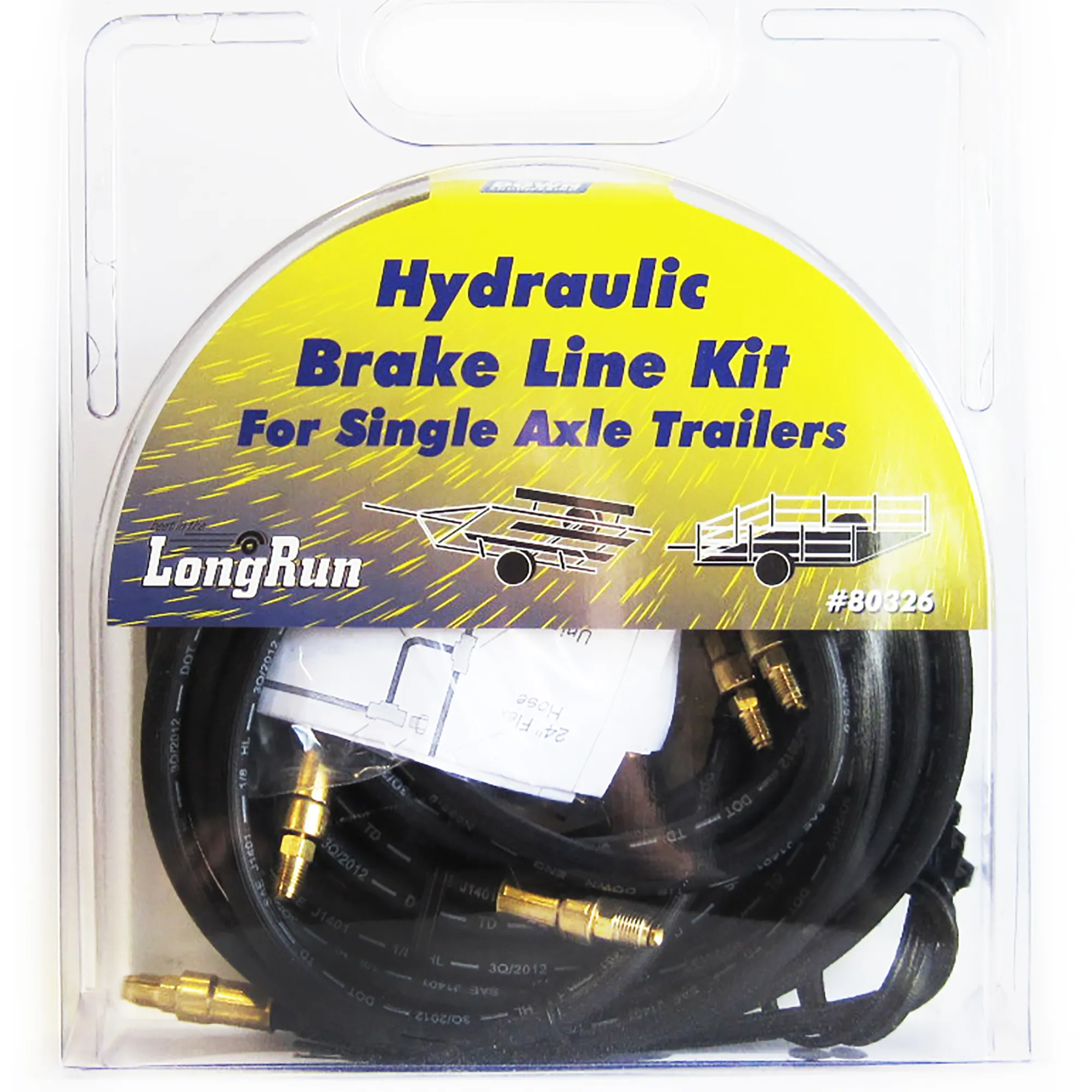

This kit replaces Dexter part number 80326 and provides a complete hydraulic brake line solution for single-axle trailer applications. Use only DOT 3 brake fluid with this system.
