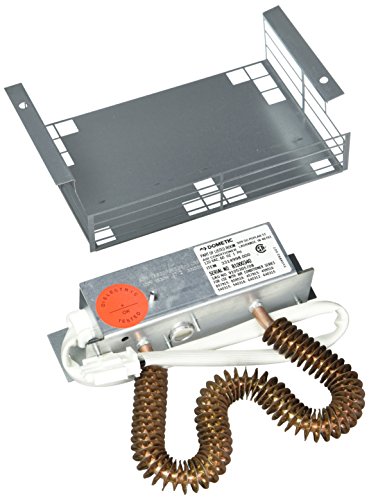

Dometic 9105305708 Non-Ducted Heat Strip Kit for RV Air Conditioners

The Dometic 9105305708 Non-Ducted Heat Strip Kit (also known as part number 3314998.000) is a supplemental heating upgrade designed for select Dometic Brisk Air II and Penguin II rooftop air conditioners. This 120-volt electric heat strip delivers 5,600 BTU of heating output, providing an efficient way to add warmth to your RV without running the propane furnace.

Key Features:

• 5,600 BTU heating capacity at 120 volts
• 12.7 amp draw for efficient operation
• Includes safety limit switch to prevent overheating
• Comes with safety grille for secure installation
• Mounts directly under the Air Distribution Box (ADB)
• Plugs into the control box for integrated thermostat control
• Propane-free heating solution for cooler weather

Compatibility: This non-ducted heat strip requires ceiling assembly/ADB part numbers 3314850.000 or 3314851.000 and is compatible with Dometic air conditioner models 457915, 459516, 540315, 540316, 640312, 640315, B57915, and B59516. Not compatible with heat pump model air conditioners. Note that heat strips are designed to supplement, not replace, a primary heating system and may not provide adequate heat in temperatures below 40°F.

The kit includes the heating element, limit switch, and all necessary components for installation in compatible non-ducted ceiling assemblies.
