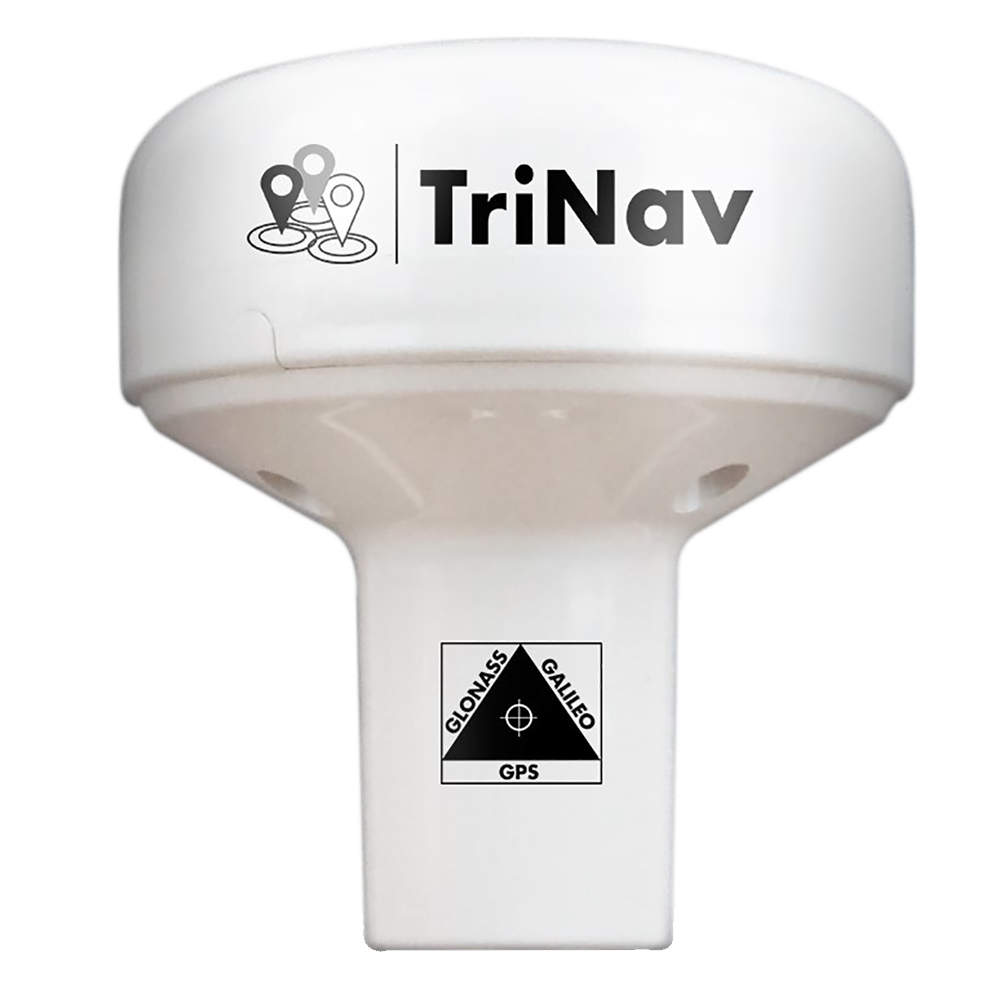

Digital Yacht ZDIGGPS160 GPS160 TriNav Multi-GNSS Positioning Sensor NMEA 0183

The Digital Yacht GPS160 is a high-performance positioning sensor utilizing GPS, Galileo, and Glonass satellite systems for exceptional positioning accuracy and redundancy. TriNav technology allows all three systems to be simultaneously utilized for navigation, providing typical accuracy better than 1 meter and data output at up to 18Hz for smoother plotter track displays.

Key Features:

• 72-channel GPS, Glonass, and Galileo GNSS positioning receiver
• Sophisticated anti-spoofing algorithm for robust positioning performance and interference rejection
• User/field selectable 4800, 38400, and 115200 baud operation through simple internal DIP switches
• Field programmable for various modes such as single GNSS operation (e.g., Galileo only) and configurable output settings
• Multiple formats of NMEA data output including datum information—user configurable through internal DIP switches
• Input for MOB switch/system—when activated generates synthetic AIS MOB NMEA output to activate MOB position on plotter
• Professional system (ECDIS) support with datum sentence structure (DTM/GBS/GNS/GRS/GSA/GST)
• Puck installation or fits 3rd party industry standard 1" x 14TPI threaded mount

This NMEA 0183 version features a versatile interface compatible with most marine navigation systems. The GPS160's TriNav technology combines satellite signals from multiple global positioning systems to deliver optimal fix accuracy and reliability, even in challenging conditions with potential spoofing or local interference.
