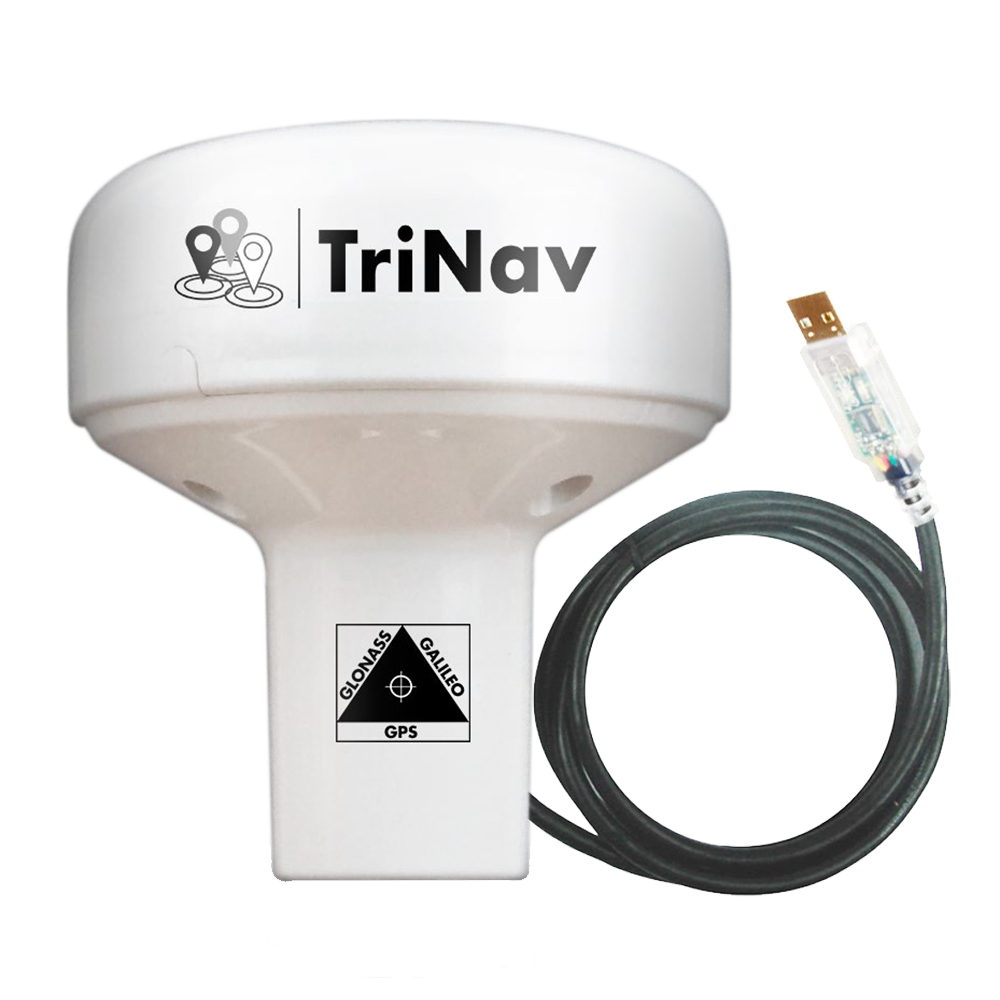

Digital Yacht ZDIGGPS160USB GPS160 TriNav Multi-GNSS Sensor USB

The GPS160 is a high performance positioning sensor using GPS, Galileo and Glonass satellite systems for exceptional positioning accuracies and redundancies. Updated models now feature QuadNav technology supporting GPS, GLONASS, Galileo, and Chinese Beidou satellites, utilizing signals from over 100 satellites for improved accuracy and reliability.

Key Features:

• 72 channel GPS, GLONASS, Beidou and Galileo GNSS positioning receiver
• Typically sub 1m accuracy thanks to QuadNav technology which combines all satellite data for optimum accuracy
• Ships with 16 ft USB cable and is self powered from the USB source (PC, MAC or Linux)
• Once installed, the host PC creates a virtual COM port so navigation programs can receive positioning data
• Field programmable for single GNSS operation (e.g. Galileo only) as well as output configurations such as update rate and NMEA sentence structure
• Improved current consumption (less than 25mA) and robust operation against jamming and spoofing

TriNav technology combines signals from all three systems to compute the best possible fix accuracy and reliability. Data can output at up to 18Hz for smoother plotter track displays. The sensor also features sophisticated anti-spoofing algorithms for robust positioning performance.
