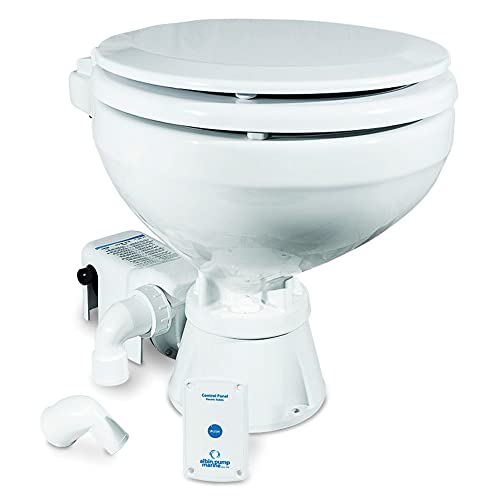

Albin 07-02-004 Marine Electric Toilet EVO Compact 12V Single Operation

The Albin EVO Compact is a standard electric marine toilet featuring a combined 12V macerator and pump system that handles waste disposal and flushing in one single operation. This compact design is ideal for boats with limited head space while maintaining full functionality.

Key Features:

• Single operation electric system with integrated macerator and pump (12V)
• Easy-to-clean white ceramic bowl with white wooden seat
• One-touch electrical control panel for simple operation
• Stable base design for robust installation in marine environments
• Port connections: inlet 19mm (3/4"), outlet 25mm or 38mm (1" or 1.5")
• Plug and play installation, interchangeable with Jabsco 37010-0090, Johnson Pump 80-47435-01, and other single operation electric toilet models

Specifications:

• Voltage: 12V DC
• Weight: 9 kg (19.8 lbs)
• Dimensions: 420mm L x 390mm H x 335mm W (16.5" x 15.35" x 13.2")
• Bowl Material: White ceramic
• Seat Material: White wood
• Inlet Connection: 19mm (3/4")
• Outlet Connection: 25mm or 38mm (1" or 1.5")

Certifications:

• CE marked 94/25/ECC
• ISO 8846 Small Craft compliant
• Electromagnetic compatibility 89/336/EEC
• EN 51014 1993 radio disturbance compliance

This compact marine toilet offers reliable performance with easy maintenance, making it an excellent choice for sailboats, powerboats, and yachts where space efficiency is essential.
