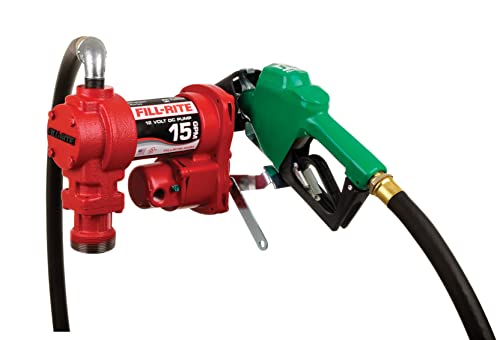

Fill-Rite FR1210HA1 12V DC Fuel Transfer Pump 15 GPM with Hose and Auto Nozzle

The Fill-Rite FR1210HA1 is a heavy-duty 12-volt DC fuel transfer pump designed for efficient diesel, gasoline, kerosene, E15, and biodiesel (up to B20) transfer applications. With a flow rate of up to 15 gallons per minute (57 LPM), this electric pump delivers fast, reliable fuel transfer for agricultural, construction, fleet, and mobile fueling operations.

Key Features:

• Durable cast iron construction for long-lasting performance
• 12V DC electric operation drawing 20 amps
• 15 GPM maximum flow rate for efficient fuel transfer
• 1-inch NPT inlet and 3/4-inch NPT outlet connections
• 16 PSI maximum operating pressure
• Operating temperature range: -17°F to 105°F
• Compatible with diesel, gasoline, kerosene, E15, and biodiesel up to B20

Complete Kit Includes:

• 3/4-inch diameter x 12-foot static wire hose with automatic nozzle
• Steel telescoping suction pipe for tank access
• 18-foot power cable for flexible installation
• 3/4-inch NPT street elbow fitting
• Ground wire for safe operation
• PTFE tape roll and two wire nuts for installation

This pump arrives as a complete fuel transfer system ready for installation. The automatic nozzle provides hands-free operation with auto-shutoff when your container is full, while the static wire hose ensures safe grounding during fuel transfer. The telescoping suction pipe allows easy access to tanks of varying depths, making this an ideal solution for mobile refueling applications.
