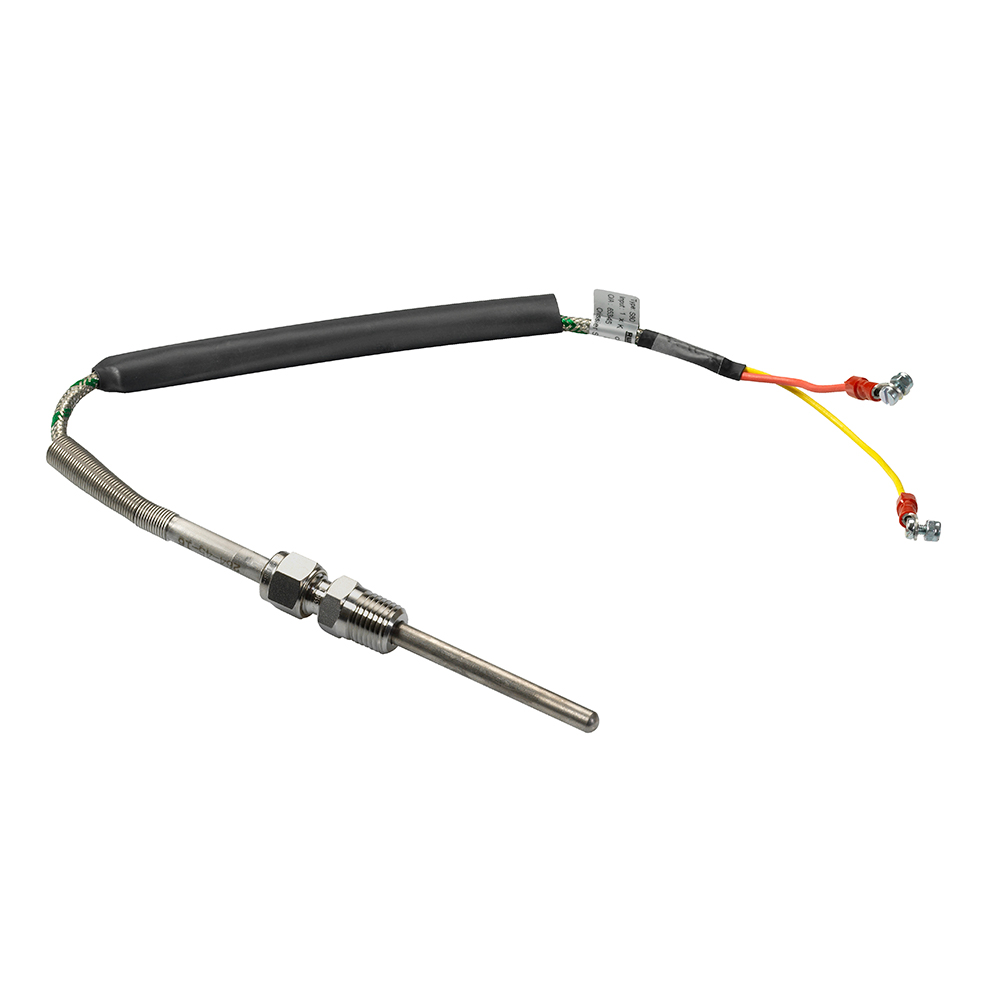

VDO Gauges N03-320-264 Marine Pyrometer Sensor Thermocoupler Element NMEA 2000

The VDO Gauges N03-320-264 is a marine-grade pyrometer sensor with thermocoupler element designed for use with Veratron LinkUp Gateway Module systems. This NMEA 2000® certified sensor provides accurate temperature monitoring across a wide measurement range of 100-900°C (250-1650°F), making it ideal for monitoring exhaust gas, coolant, water, air, engine oil, transmission oil, and fuel temperatures in marine applications.

Key Features:

• NMEA 2000® certified for seamless integration with marine networks
• Plug-and-play installation and configuration with LinkUp Gateway Module
• Wide operating voltage range of 6-24 VDC for versatile compatibility
• Adjustable sender element length up to 60 mm for flexible installation
• LIN bus input signal with 0-37 mV TC analog signal output
• Compact 6 mm sensor diameter for easy mounting

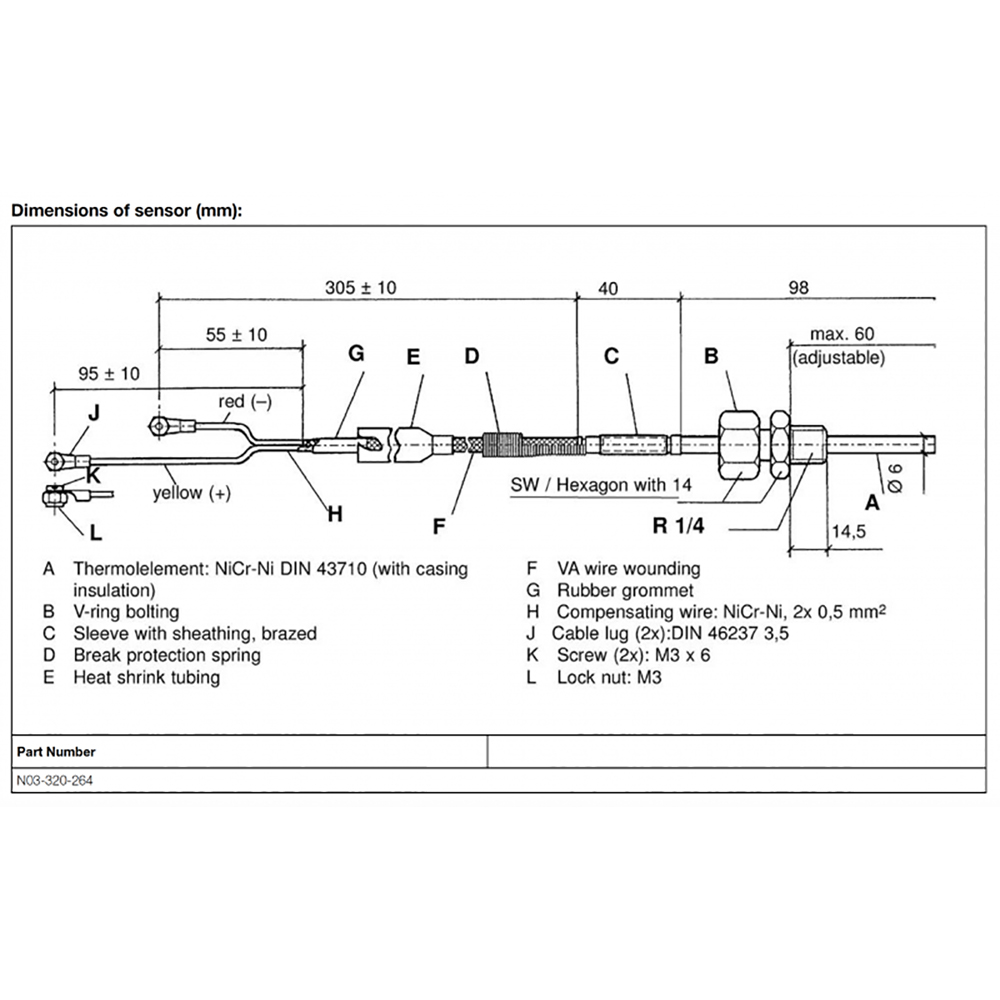

Technical Specifications:

• Measurement Range: 100-900°C / 250-1650°F
• Thread Type: R 1/4" Male
• Sensor Connector: Ring tongue terminal
• Maximum Element Length: Adjustable up to 60 mm (including thread)
• Recommended Torque: 20 Nm
• Operating Voltage: 6-24 VDC
• Communication: Analog output via LIN bus interface

This pyrometer sensor is particularly useful for monitoring critical engine temperatures in marine diesel applications, providing real-time data through your NMEA 2000 network. The thermocoupler element delivers reliable performance in harsh marine environments where accurate temperature measurement is essential for engine protection and performance monitoring.

Sold as individual sensor unit.
