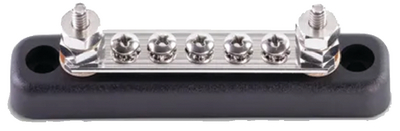

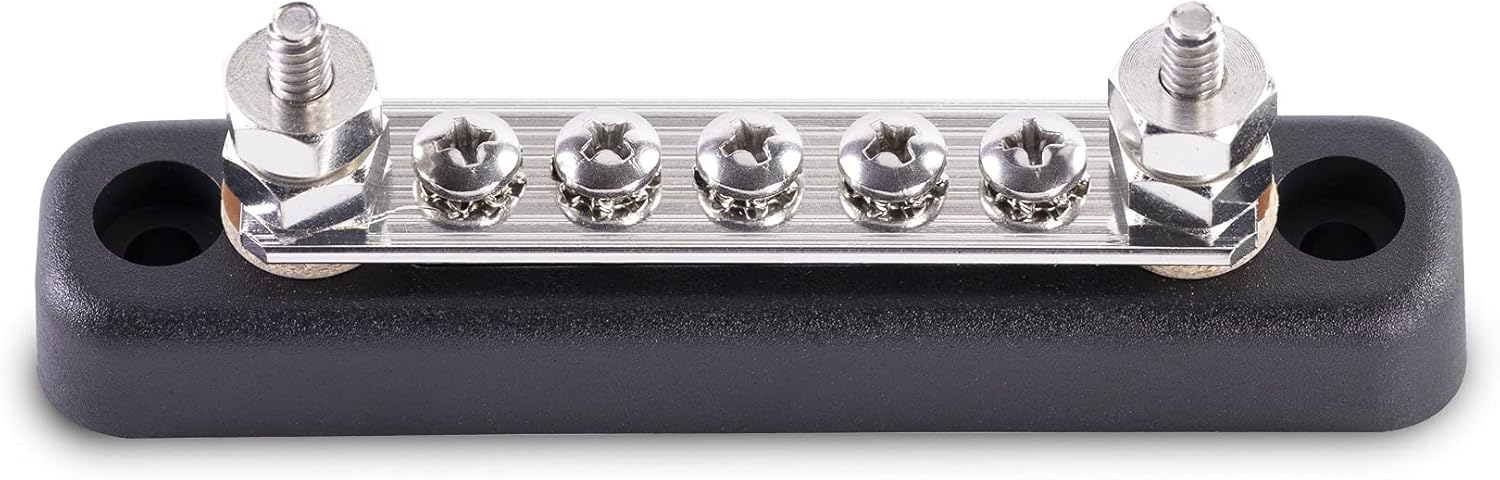

Sierra FS46680 Mini Bus Bar 100A 5 Gang Marine Electrical Distribution

The Sierra FS46680 is a compact 100-amp, 5-gang mini bus bar designed for marine and automotive electrical distribution in space-constrained applications. This professional-grade power distribution block provides a reliable central connection point for multiple electrical circuits while maintaining maximum current capacity.

Key Features:

• 100-amp maximum continuous current capacity with 48VDC voltage rating
• 5 gang configuration with 3/16-24 SAE threaded studs for secure connections
• Tin-plated copper bus bar for superior conductivity and corrosion resistance
• Stainless steel screws and studs prevent corrosion in marine environments
• Flame retardant ABS base provides electrical insulation and safety
• Protective cover included to prevent accidental contact and debris intrusion
• Compact dimensions (4.2" x 0.88" x 1.37") ideal for tight installation spaces

Perfect for boats, RVs, and other applications where multiple electrical circuits need to be connected to a common power source in limited space. The tin-plated copper construction ensures excellent electrical performance while the marine-grade materials provide long-lasting durability in harsh environments.
