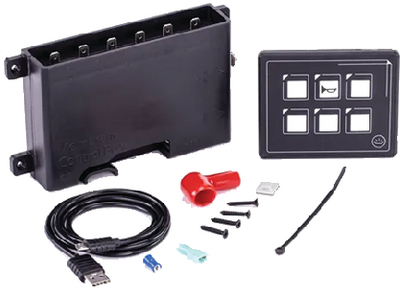

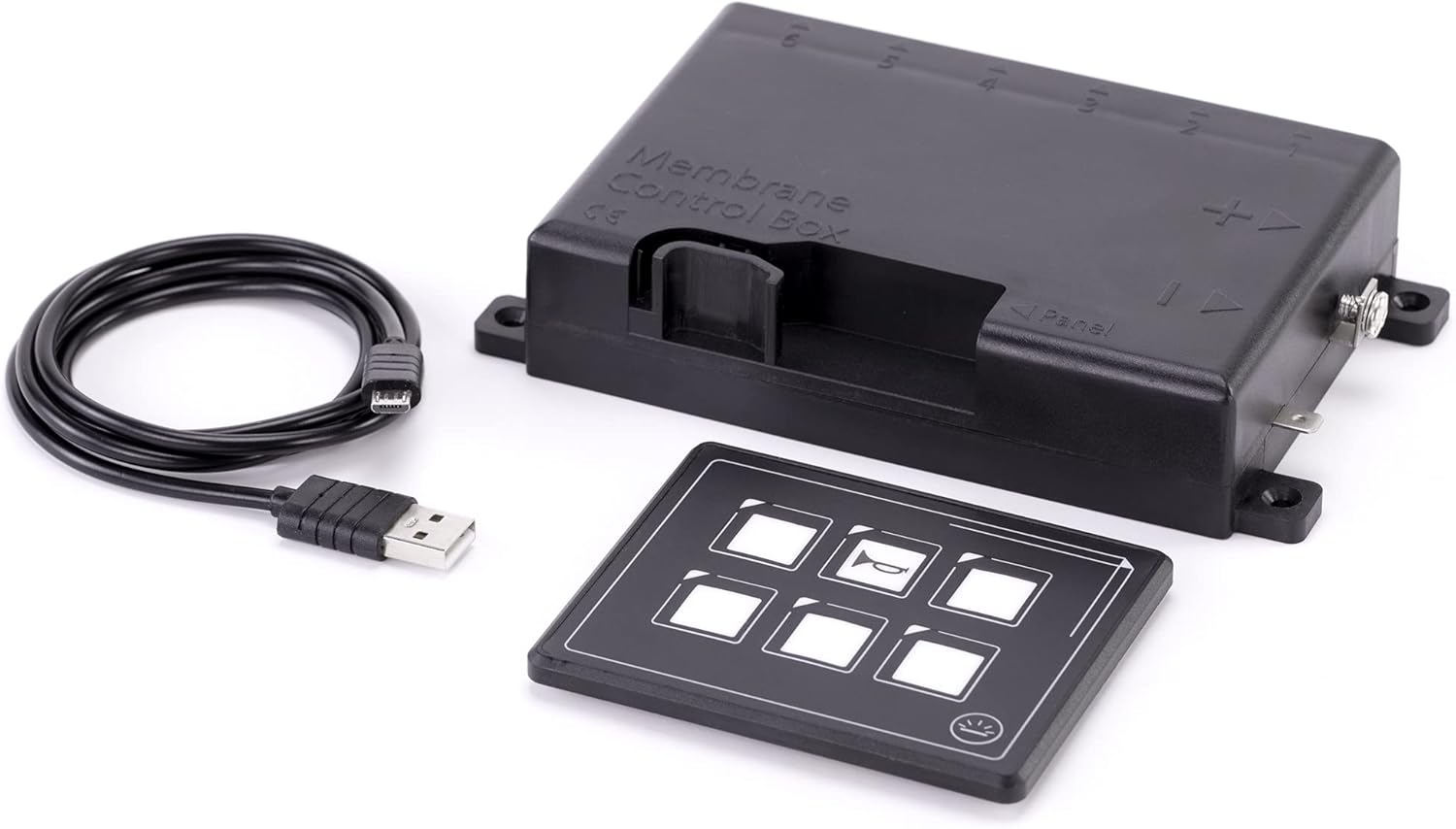

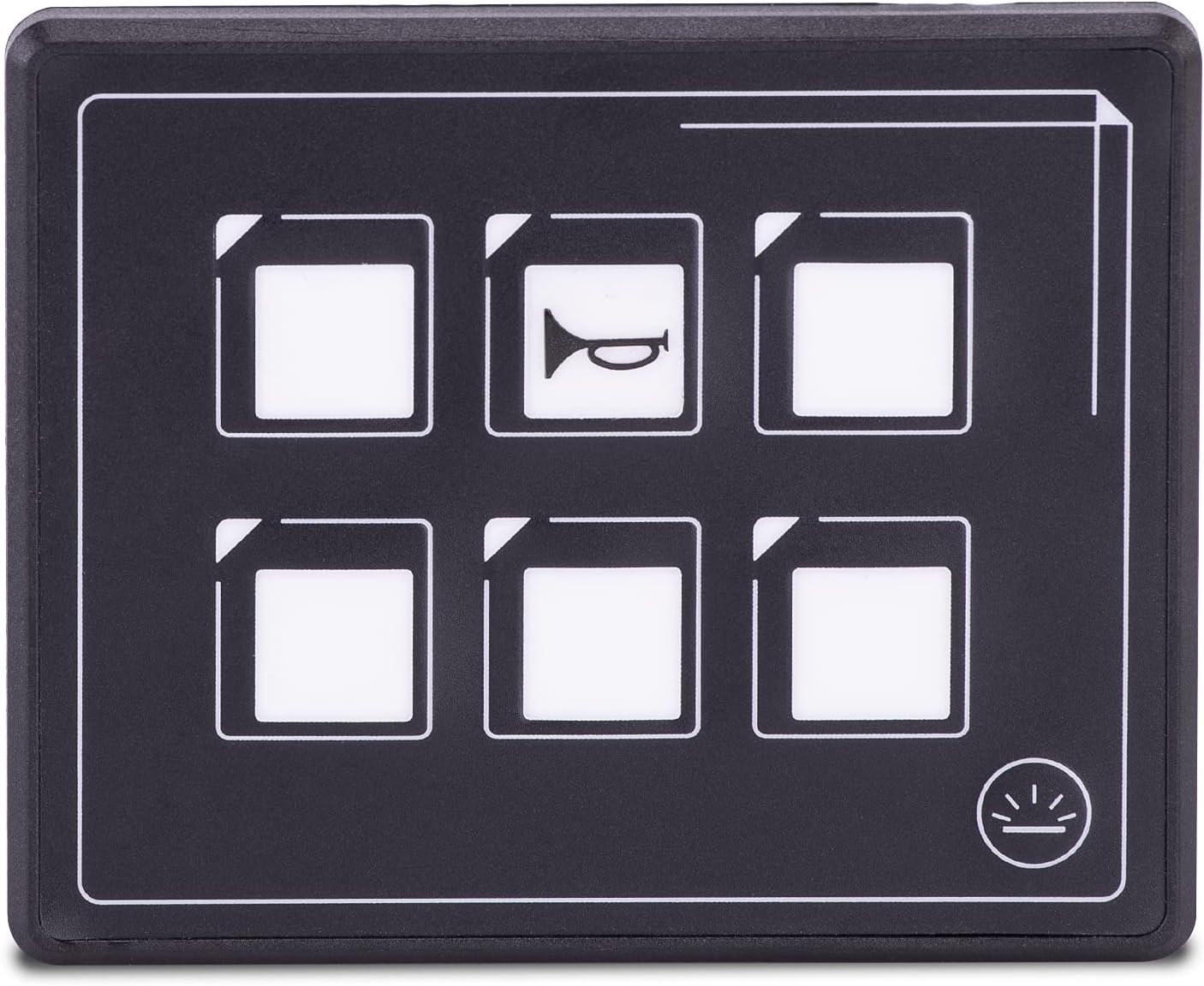

Sierra SP21020 Panel 6 Function Touch 12v/24v

• Panel Cut-Out: 15mm hole


• Circuit Protection: Built-in Resettable Fuse (PPTC)


• Switch Ratings: 10A per function at 12VDC


• Panel Rating: Max Cumulative Amp: 35A


• Voltage Rating: 11-30VDC


• Membrane Touch Control Panels designed for the harsh Marine Environment


• Ultra Compact panel size up to 60% smaller than traditional panels


• Easy to install; almost no mounting depth required


• Uses micro-USB cable instead of bulky cables


• Flexible wiring allows the control relay hub to remote mount up to 1 meter away from the touch panel


• LED- ON indication


• 10A Self-resettable fuse for each function


• Backlit push buttons allow for easy readability in the dark


• Uses very low standby current


• Programmable buttons allow each function to be programmed as a latching or momentary circuit

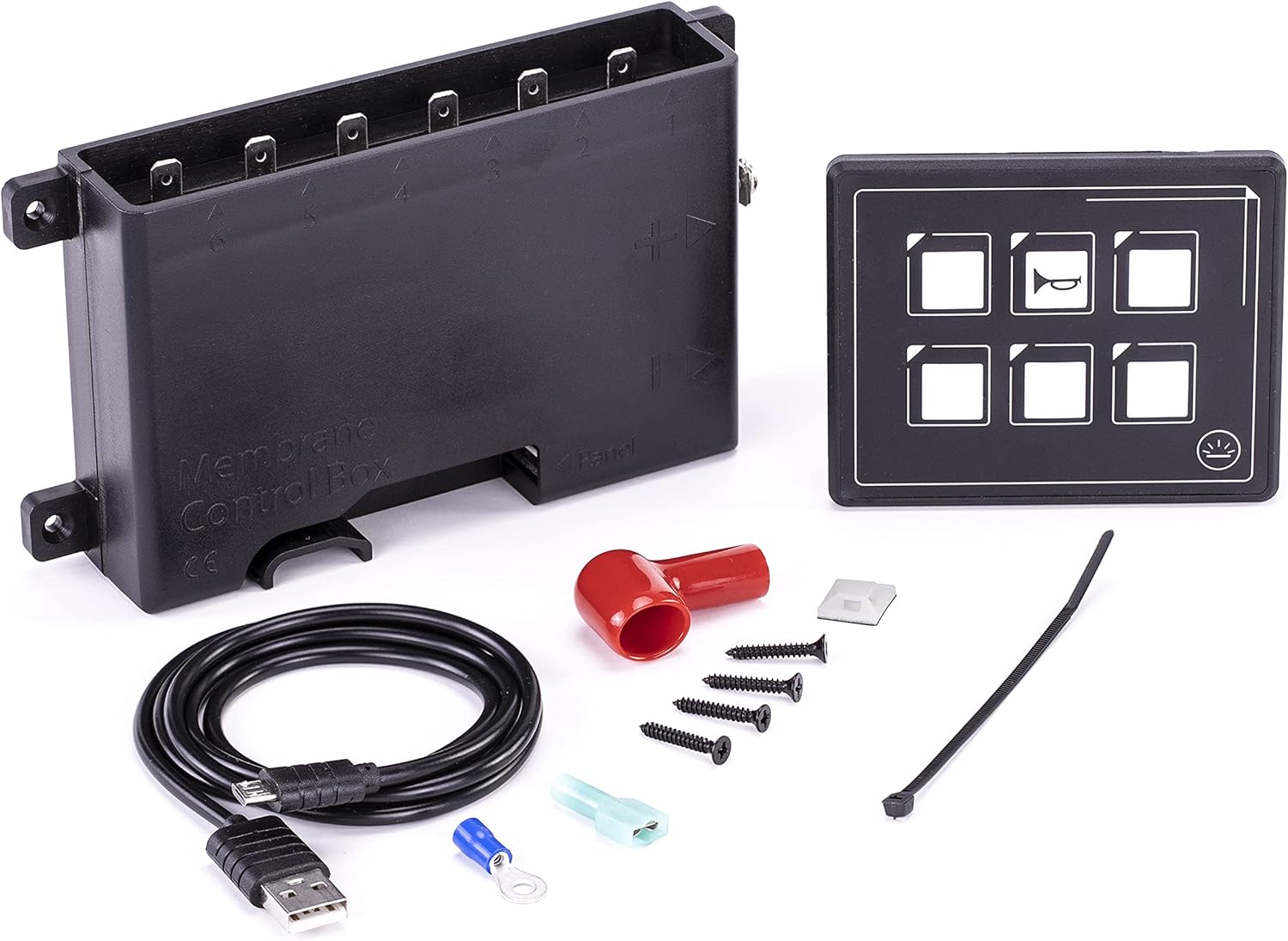

• Includes a 60 piece assortment of graphic and text labels


• Faceplate PET membrane touch panel


• CE Certified; Panel only is IP 67 Rated
