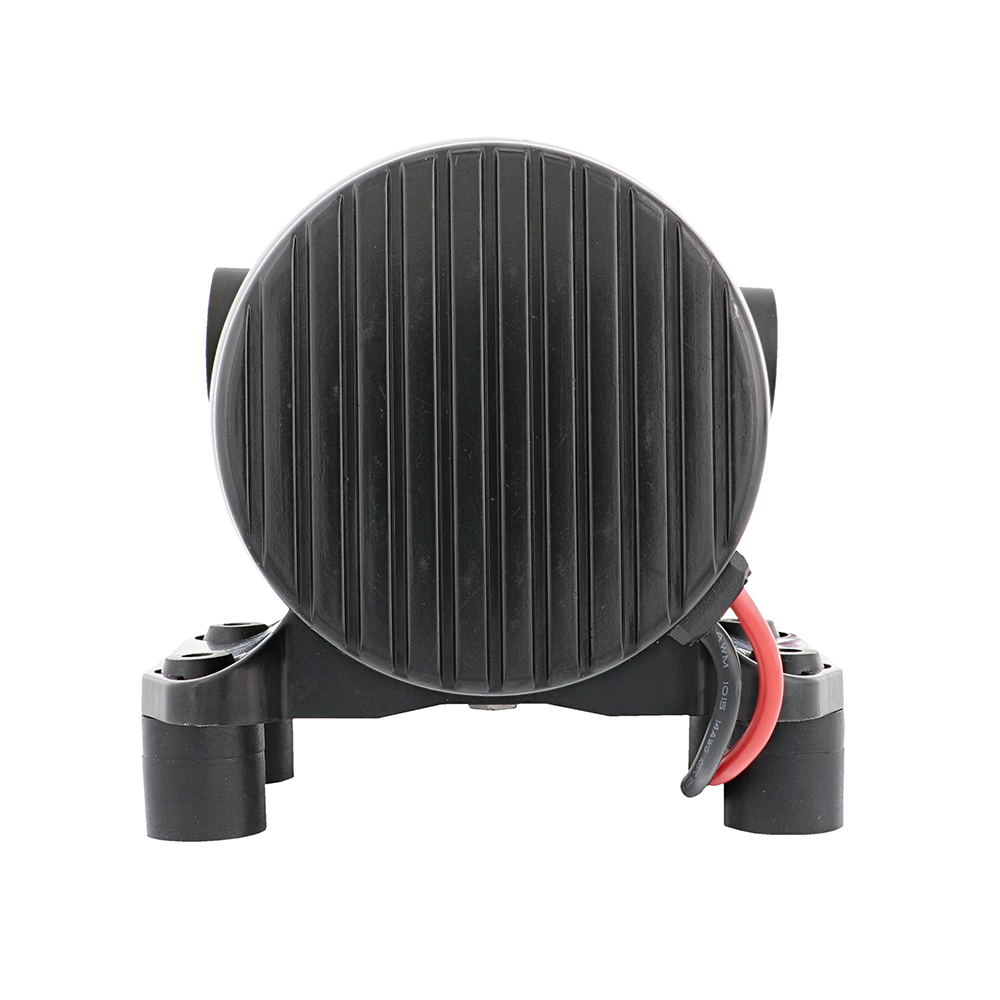

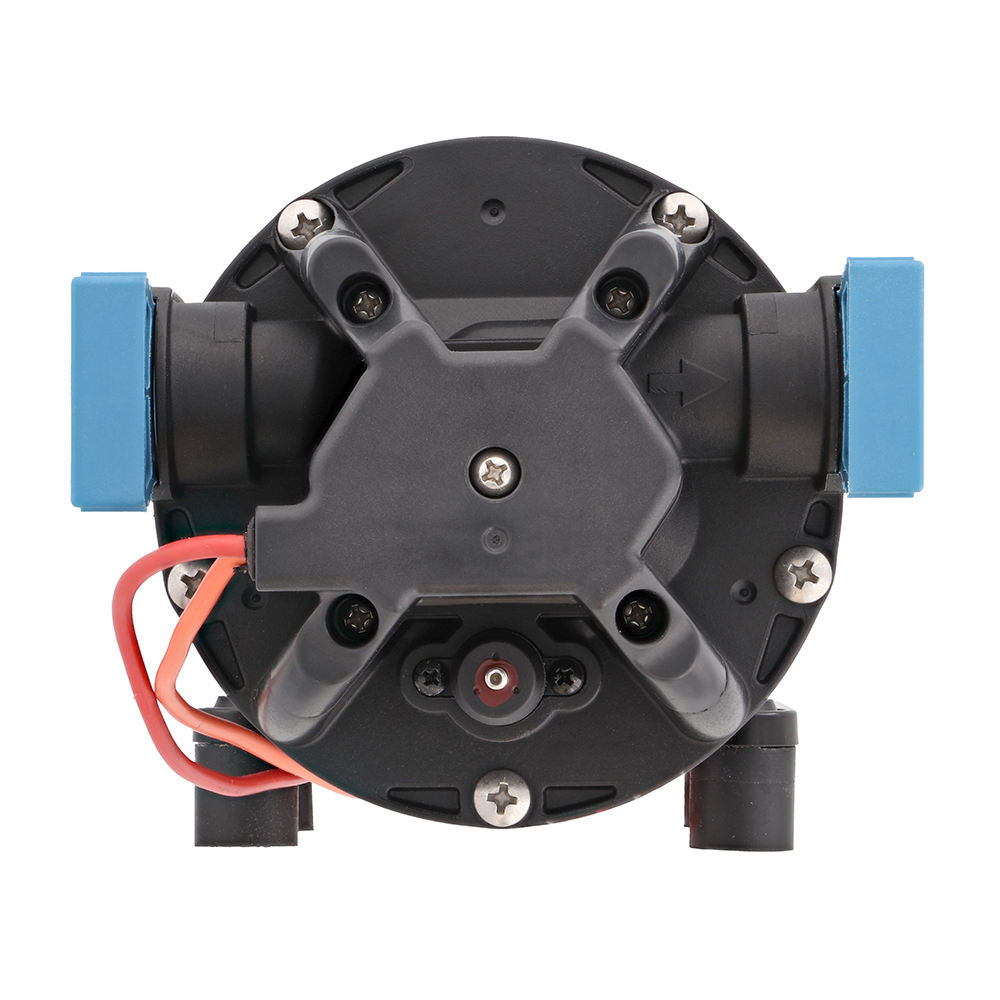

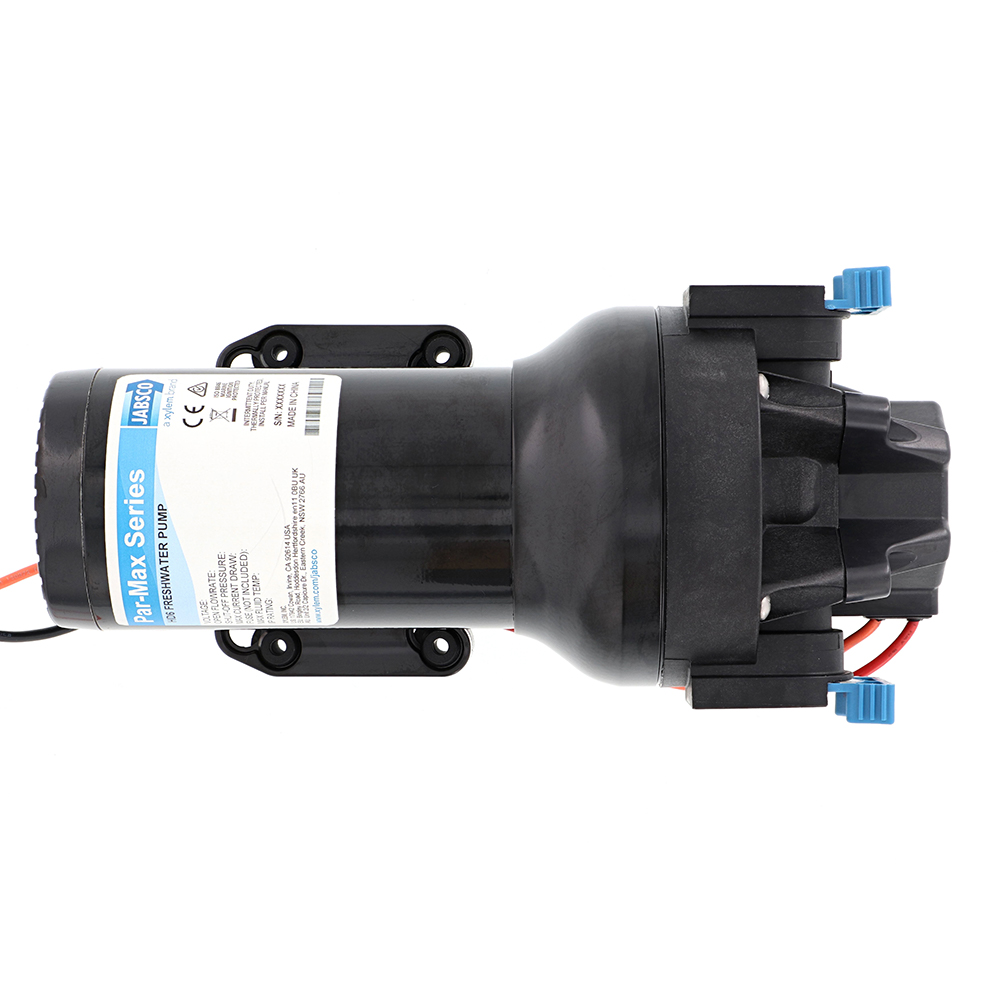

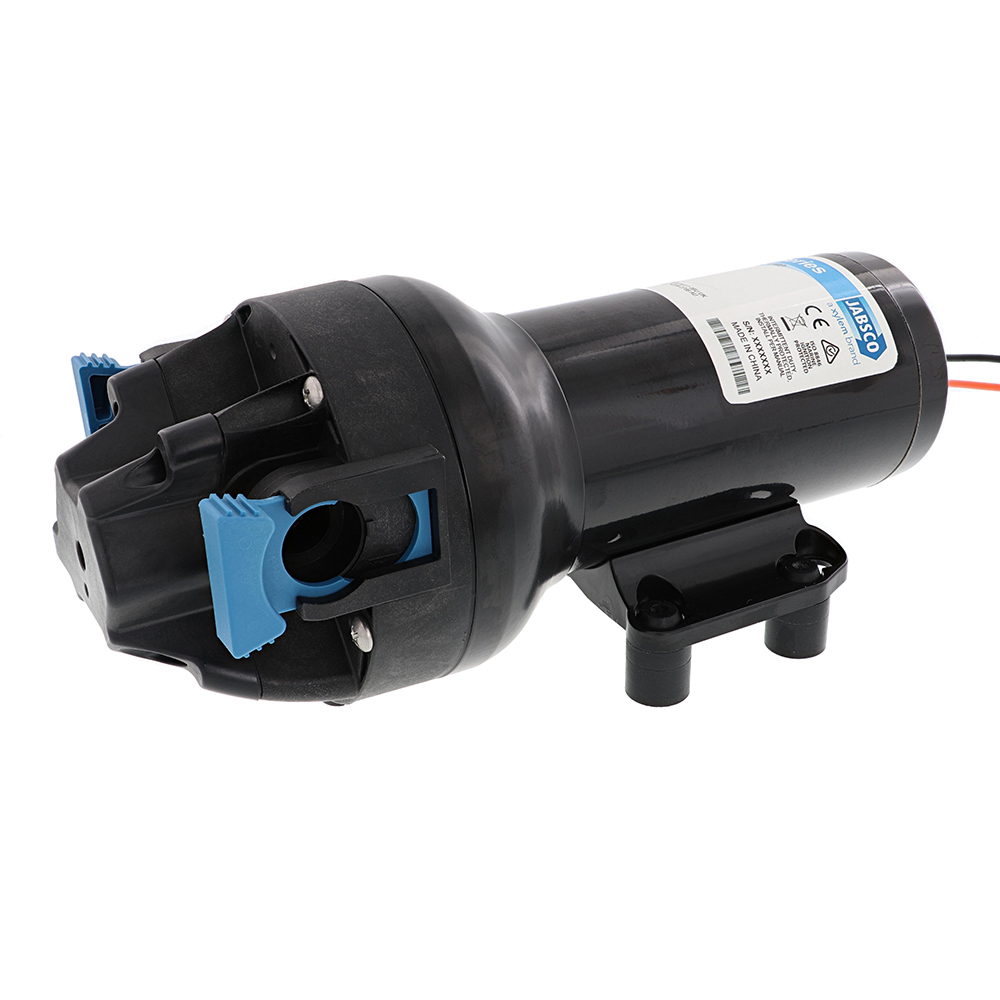

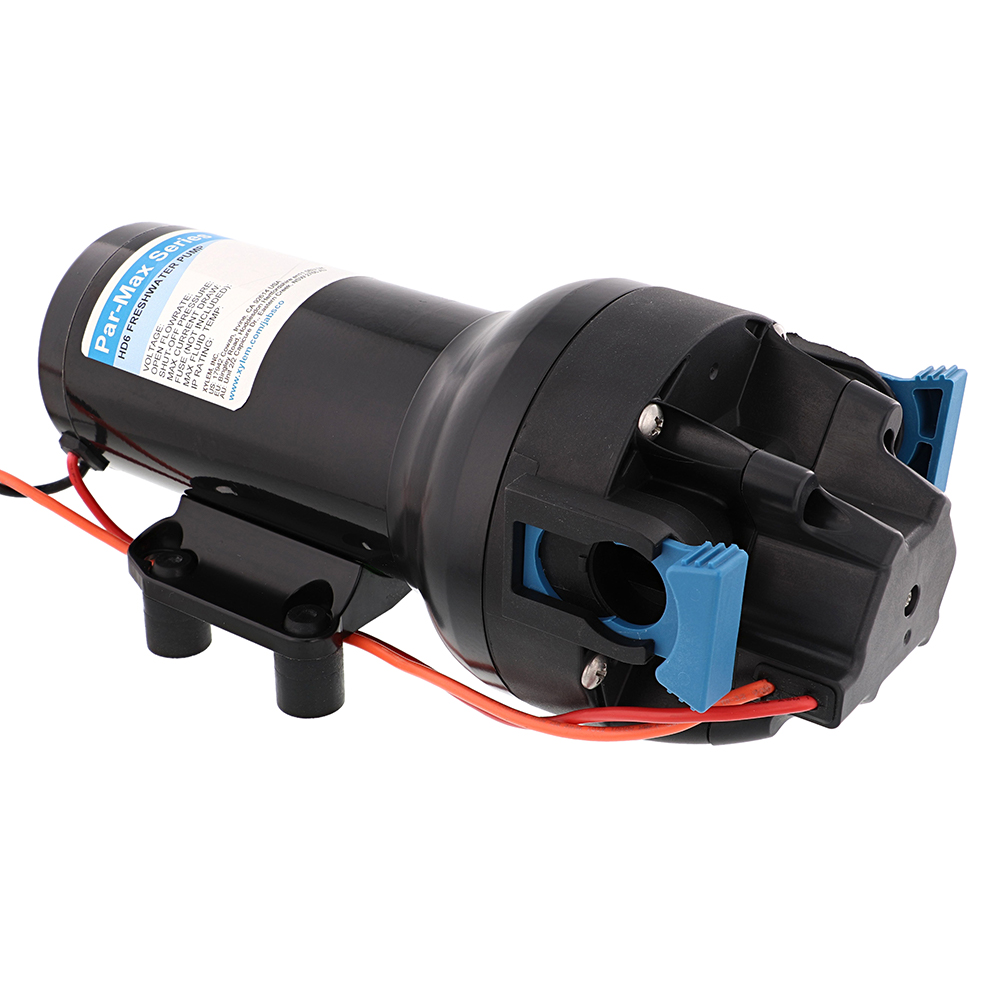

Jabsco P601J-215S-3A Parmax HD6 12V Water Pressure Pump 6 GPM 40 PSI

The Jabsco Parmax HD6 is a heavy-duty freshwater delivery pump designed for demanding marine and RV applications. This 12-volt system pump delivers 6 gallons per minute at 40 PSI, providing reliable water pressure for vessels with multiple outlets.

Heavy Duty Construction:

The HD series features a wider diameter motor with powder-coated shell, cast aluminum endbells, and lower housing for superior pressure capability and extended service life. This robust construction allows the pump to maintain performance even under high-pressure conditions.

Key Features:

• Co-molded TPV diaphragm technology for exceptional durability and long service life
• Cast aluminum lower housing for heavy-duty performance at high pressures
• Integrated sealed pressure switch provides automatic on-demand operation
• Self-priming capability up to 7 feet allows flexible installation options
• Can run dry without damage to internal components
• Quick-connect ports simplify installation, servicing, and maintenance
• Vibration dampening mounting feet reduce noise and vibration
• Integrated bypass module minimizes cycling and ensures smooth, consistent flow
• Efficient brushed permanent magnet motor for quiet operation

Technical Specifications:

• Voltage: 12V DC
• Flow Rate: 6 GPM (23 LPM)
• Pressure: 40 PSI (2.76 Bar)
• Motor: Brushed permanent magnet, TENV design
• Pumphead Housing: Glass fiber reinforced polypropylene
• Check Valves: EPDM rubber
• Maximum Inlet Pressure: 30 PSI (2.1 Bar)
• Fluid Temperature Range: 32°F to 140°F (0°C to 60°C)
• Self-Priming: 7 feet minimum (2.13 meters)
• Ingress Protection: IPX6 rated
• Certifications: CE, ISO 8846, RCM compliant

Ideal for marine vessels, RVs, and off-grid applications requiring reliable freshwater delivery with multiple outlet capability.
