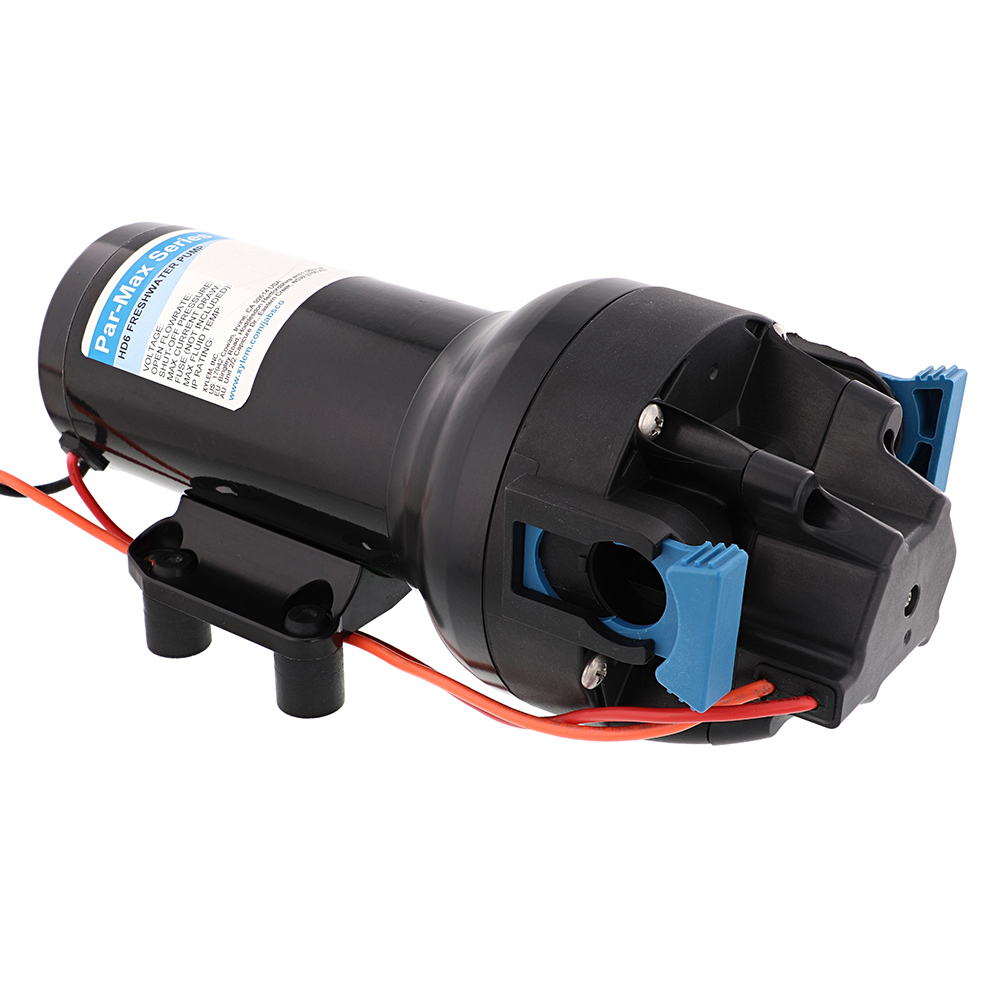

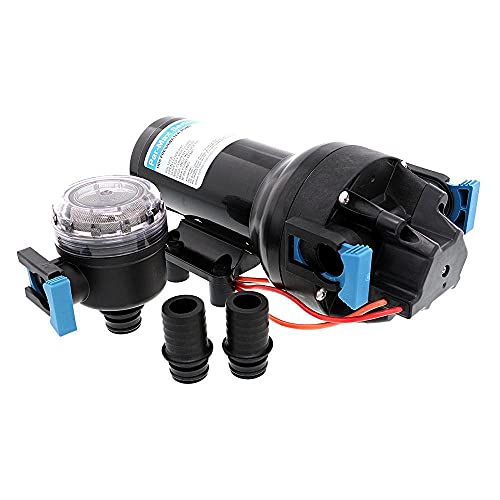

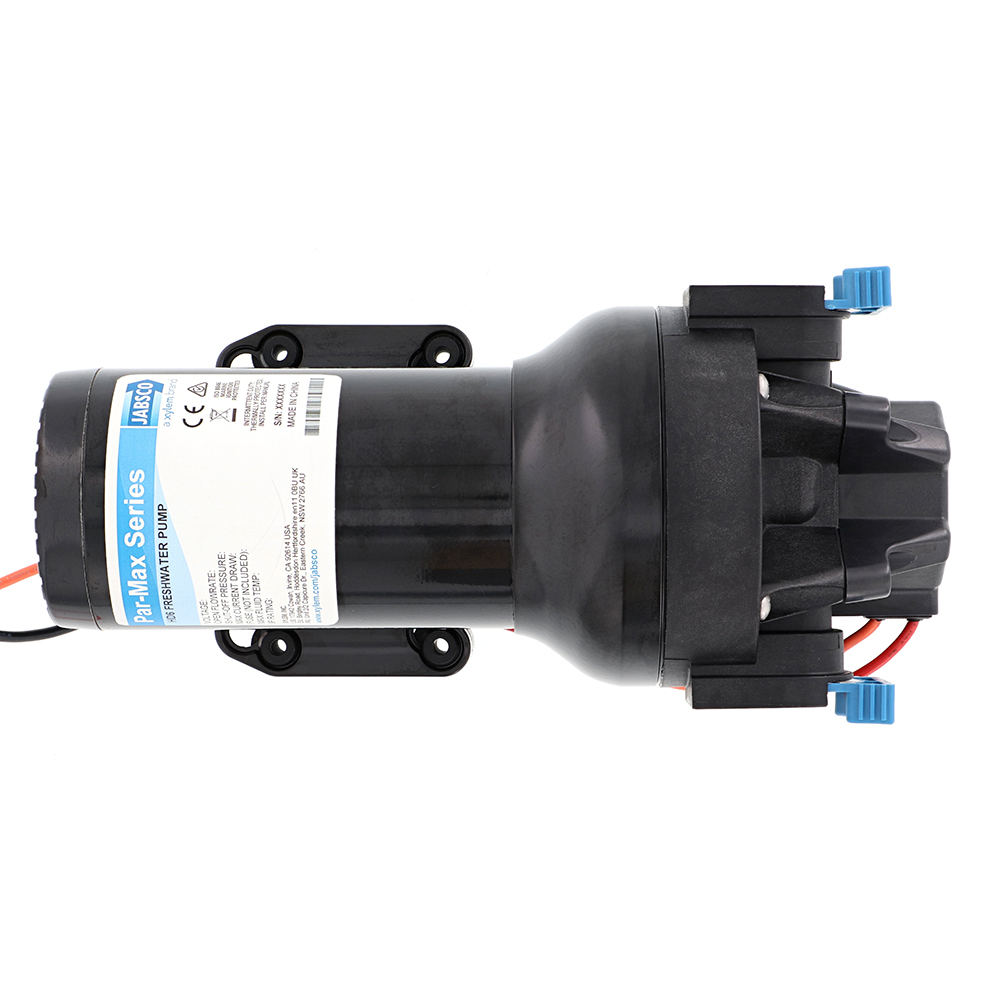

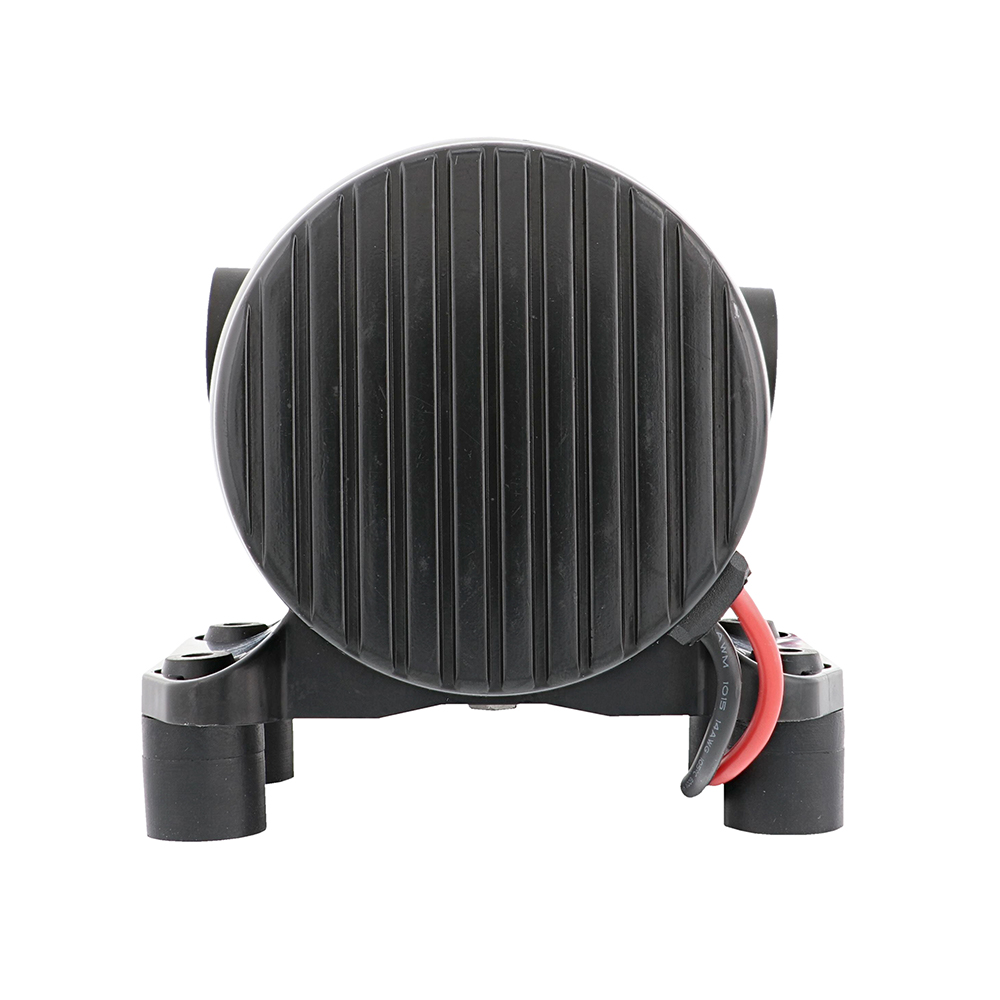

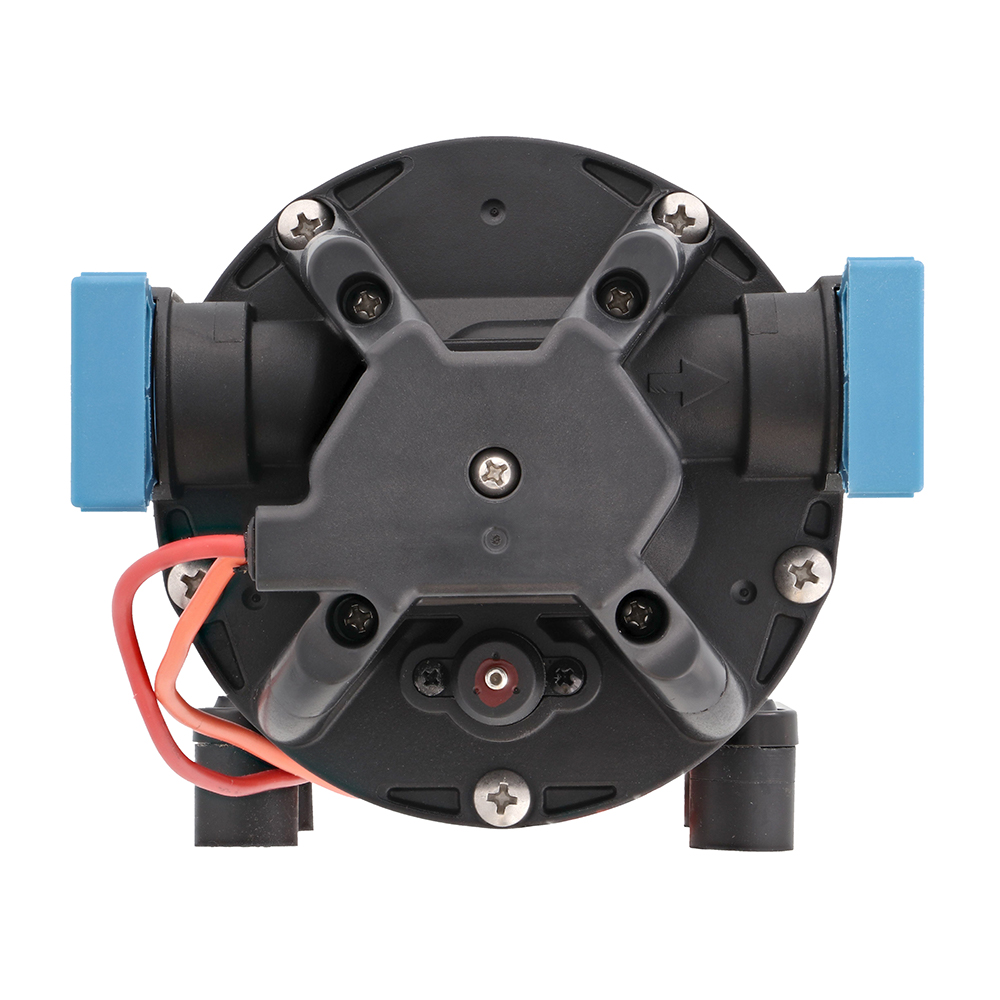

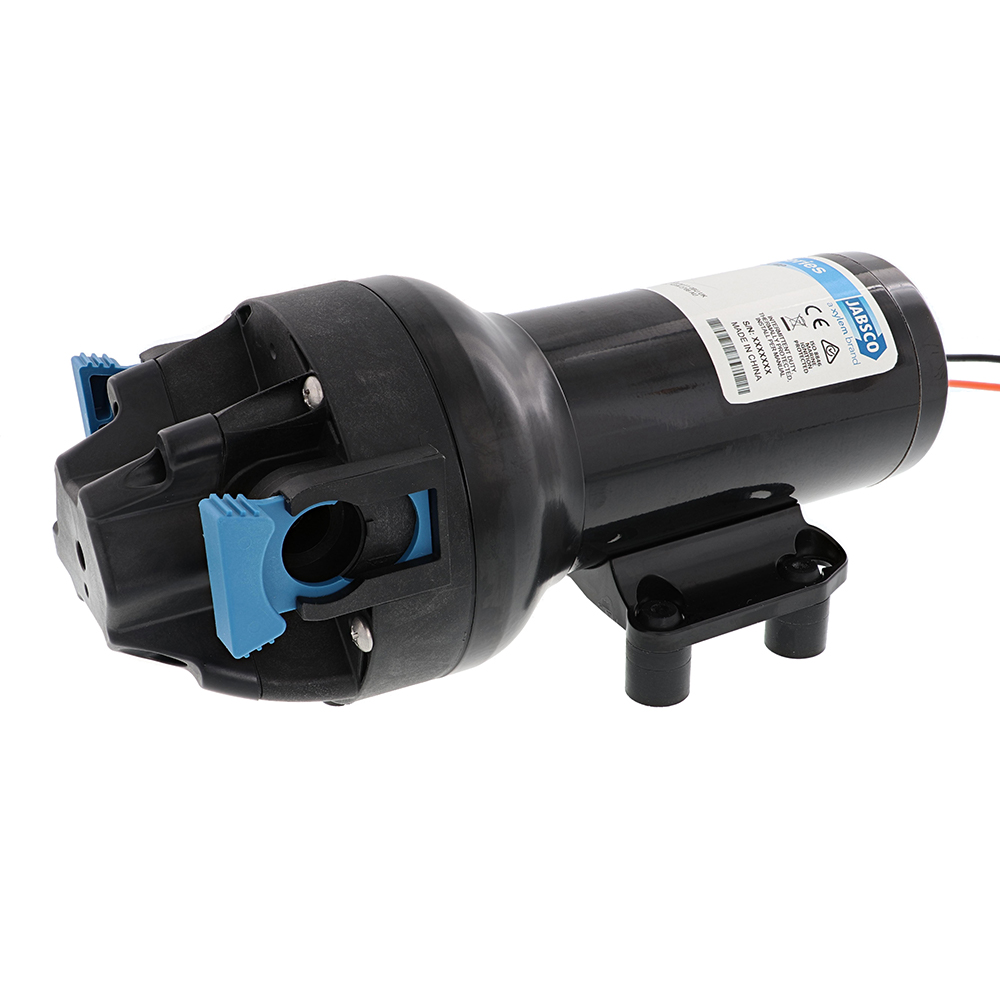

Jabsco P602J-215S-3A Parmax HD6 24V Water Pressure Pump 6 GPM 40 PSI

The Jabsco Parmax HD6 Heavy Duty Water Pressure Pump delivers exceptional performance for marine and RV freshwater systems. Engineered with professional-grade components, this 24-volt pump provides reliable on-demand water delivery at 6 gallons per minute with 40 PSI maximum pressure, ideal for vessels and vehicles with multiple outlets.

Heavy Duty Construction:

The HD (Heavy Duty) series features a wider diameter motor with powder coated shell, cast aluminum endbells, and cast aluminum lower housing for superior pressure capability and extended service life. This robust construction ensures consistent performance even under demanding conditions and high-pressure applications.

Key Features:

• Co-molded TPV diaphragm technology for exceptional longevity and durability
• Heavy duty brushed permanent magnet TENV motor with cast aluminum lower housing
• Integrated sealed pressure switch provides automatic on-demand operation
• Self-priming up to 7 feet minimum (2.13m/min) allows flexible installation locations
• Can run dry without damage to pump components
• Quick connect ports simplify installation, servicing, and maintenance
• Vibration dampening mounting feet reduce noise and wear
• Integrated bypass module minimizes cycling and ensures smoother water flow
• Quiet and efficient operation for comfort

Technical Specifications:

• Voltage: 24V DC
• Flow Rate: 6 GPM (23 LPM)
• Maximum Pressure: 40 PSI (2.8 Bar)
• Maximum Inlet Pressure: 30 PSI (2.1 Bar)
• Pumphead Upper Housing: Glass fiber reinforced polypropylene
• Check Valves: EPDM rubber
• Fluid Temperature Range: 32°F to 140°F (0°C to 60°C)
• Certifications: CE, ISO8846, RCM
• Ingress Protection: IPX6 rated

Perfect for demanding marine, RV, and mobile applications where reliable freshwater delivery is essential. The combination of high flow rate, durable construction, and automatic pressure switching makes this pump an excellent choice for systems with 3 or more outlets.
