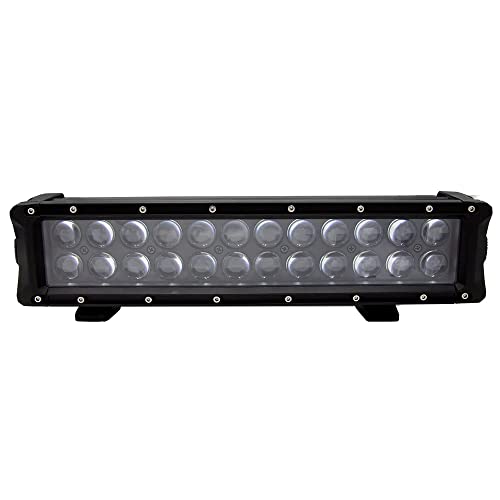

HEISE LED Lighting Systems HE-INFIN14 Infinite Series 14" RGB Backlit Dual Row LED Light Bar

The HEISE Infinite Series 14" RGB Backlit Dual Row LED Light Bar combines powerful pure white illumination with customizable RGB backlighting for both function and style. Featuring 24 high-output LEDs, this compact light bar delivers 4560 raw lumens of crisp 6000K white light with an 8-degree spot beam pattern, perfect for long-range visibility in off-road, marine, and powersports applications.

RGB Backlighting with Mobile App Control:

The standout feature is the integrated RGB backlight system offering 16 million selectable colors, controlled via mobile app. The RGB lighting uses the same controller as HEISE's popular RGB accent lights, allowing you to synchronize multiple lights for coordinated lighting effects. Note that the HE-CBRGB controller is sold separately and required for RGB functionality.

Built for Extreme Conditions:

• Die-cast aluminum housing with black powder-coated finish
• Virtually unbreakable polycarbonate lens
• Military-grade breather port allows moisture to escape, preventing internal condensation
• IP67 waterproof rating for submersion protection
• Operating temperature range: -40°C to +60°C (-40°F to +140°F)
• Stainless steel 316 mounting hardware resists corrosion
• Reverse polarity protection safeguards electronics

Technical Specifications:

• Power: 36W, 2.6 amps @ 13.8V
• Input voltage: 10-30V DC (compatible with 12V and 24V systems)
• Output: 4560 raw lumens, 660 LUX @ 10 meters
• Beam pattern: 8-degree spot for distance illumination
• Dimensions: 14" length × 4.8" height × 3.5" depth
• Adjustable die-cast aluminum mounting brackets
• Mounting hole spacing: 13.25" (brackets inward) or 15.5" (brackets outward)
• Mounting bolt size: 0.25" diameter

The integrated, epoxy-encapsulated electronics ensure long-term reliability in harsh environments. Whether you're lighting up trails, job sites, or the water, the HEISE Infinite Series delivers professional-grade performance with eye-catching RGB customization.
