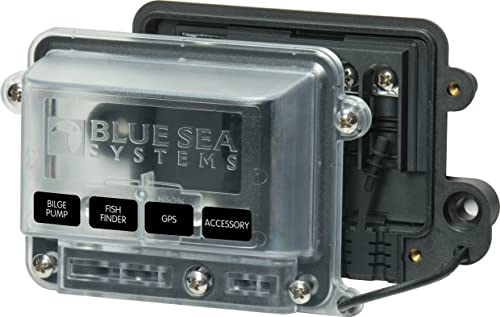

Blue Sea Systems 2356 Water Resistant BusBar 100A with Cover

The Blue Sea Systems 2356 Water Resistant BusBar provides secure, water-resistant bussing for harsh marine, RV, and automotive environments. This 100 amp busbar features a single-side nesting design that allows wire entry from one side to maximize limited space in electrical panels.

Key Features:

• Water-resistant design accepts standard ring or fork terminals for simple installation with common tools
• Accommodates wire sizes from 8 AWG to 16 AWG across input and load connections
• Includes 3 wire plugs to maintain water-resistant rating when fewer than 4 circuits are connected
• Nests with other Blue Sea Water-Resistant 100A BusBars and ST-Blade fuse blocks for compact installations
• Tin-plated copper C11000 bus construction resists corrosion in marine environments
• Insulating cover meets ABYC and USCG requirements for electrical safety
• Includes four write-on circuit identification labels

Technical Specifications:

• Continuous Rating: 100A AC / 100A DC
• Maximum Voltage: 300V AC / 48V DC
• Bus Material: Tin-Plated Copper C11000
• Terminal Configuration: (1) #10-32 input stud, (4) #8-32 load screws
• Wire Capacity: 8-4 AWG input / 16-10 AWG loads
• Mounting: 1/4" (6mm) screw holes

Ideal for positive distribution circuits or for collecting negative and AC ground wiring in boats, RVs, and other applications requiring weather-resistant electrical connections.
