Marinco 37110 Heavy Duty Waterproof Marine Wiper Motor 12V 2.5" Shaft 110° Sweep

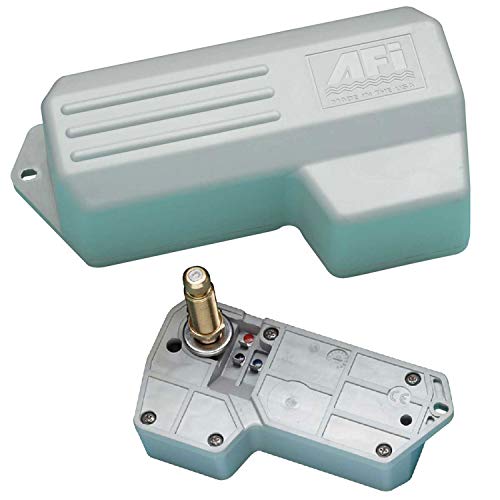

The Marinco 37110 Afiafi-1000 Series is a heavy-duty waterproof marine wiper motor designed for reliable performance in harsh marine environments. This 12-volt motor features a fully sealed waterproof housing constructed from UV-stabilized, high-temperature, high-impact thermoplastic that stands up to constant exposure to sun and saltwater.

This motor powers 18" deluxe wiper arm and blade combinations at sweep settings of 80° or less, or 16" deluxe arm and blade combinations at 110° sweep settings. The motor comes factory pre-set with a 110° sweep angle and includes a 2.5" shaft length (which includes 0.5" of knurled arm fitting).

Key Features:

• Adjustable sweep angles: 50°, 65°, 80°, or 110° (factory pre-set at 110°)
• 0.625" (16mm) diameter shaft with knurled drive surface and solid brass arm drive nut
• Heavy-duty 12V motor with anti-rotation drive shaft
• Coast-to-park feature with adjustable right or left self-parking capability
• RF shielded circuitry to minimize electrical interference
• Includes 5 amp fuse and holder (on/off switch sold separately)
• Compact dimensions: approximately 6.625"L × 3.375"W × 2"D
• High performance: 55 in-lbs stall torque (6.2 Nm)
• Efficient operation: 0.8-1.2 amps no-load current, 9.8-10.0 amps stall current

This professional-grade wiper motor delivers dependable performance for boats, yachts, and other marine vessels requiring durable windshield wiper systems.
