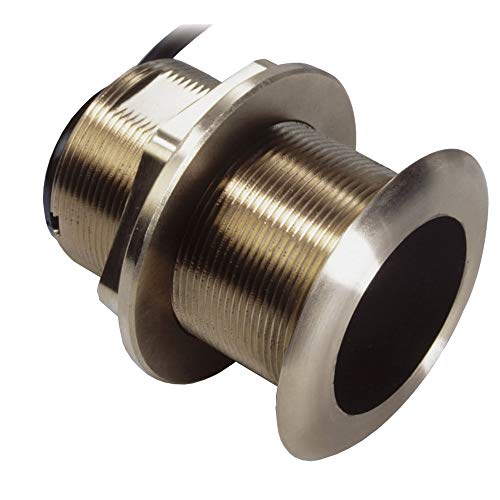

Airmar B60-12-HB Bronze Thru-Hull Transducer with Humminbird 7-Pin Plug 12°

The Airmar B60-12-HB is a bronze thru-hull transducer engineered for center-console and trailered boats up to 25 feet. This 12-degree transducer features a built-in deadrise compensation design that tilts the ceramic element inside the housing, producing a vertical beam for exceptional echo returns and accurate depth readings on hulls with up to 24 degrees of deadrise.

Key Features:

• Low-profile bronze housing with minimal drag - only 5mm (3/16") extends below the hull
• Vertical beam design eliminates the need for a fairing block
• Built-in temperature sensor for water temp monitoring
• Humminbird #9 7-pin connector for direct compatibility
• Arrow on cap indicates proper keel alignment during installation
• Urethane acoustic window for reliable signal transmission
• No impact on boat running performance or speed

Specifications:

• Beam Angle: 12 degrees
• Hull Deadrise Compatibility: Up to 24 degrees
• Maximum Boat Length: 8m (25 feet)
• Housing Material: Bronze
• Connector: Humminbird #9 7-pin plug
• Weight: 3 lbs

Ideal for coastal and offshore fishing applications where durability and accuracy are essential. The bronze construction provides excellent corrosion resistance in saltwater environments.
