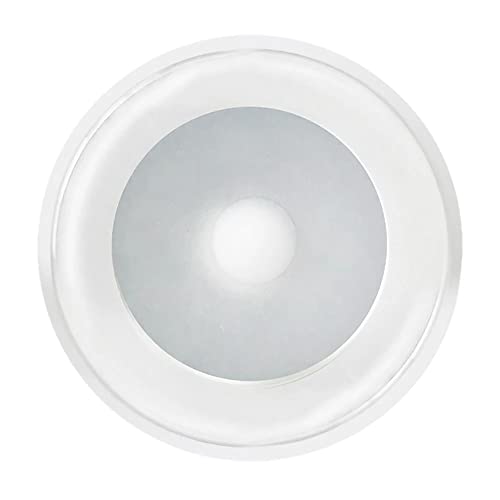

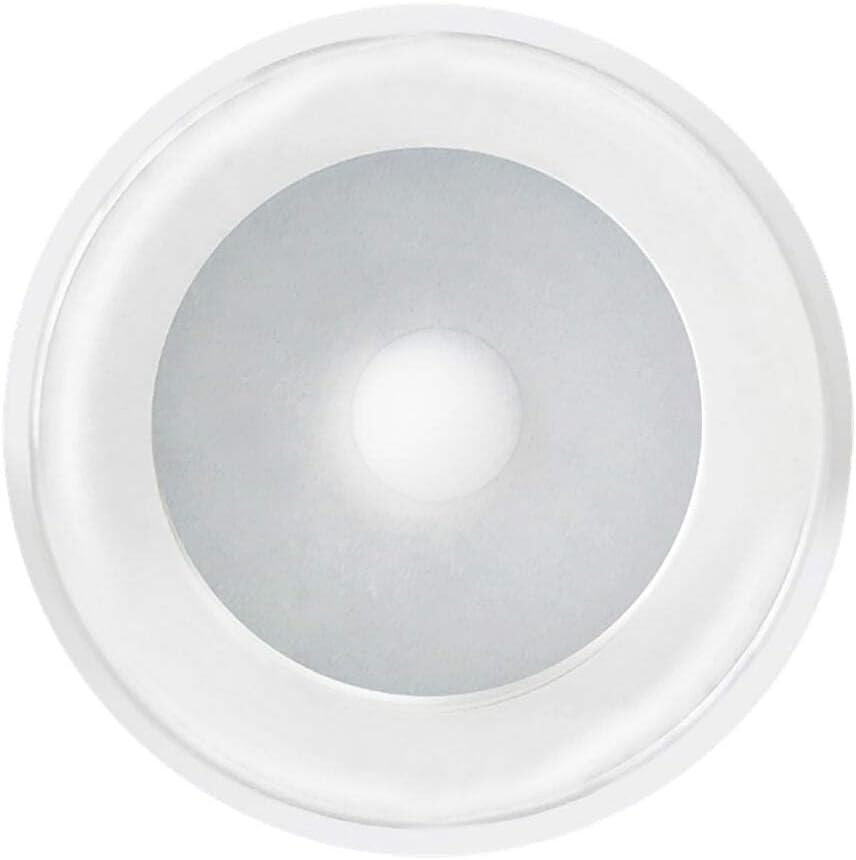

Shadow-Caster SCM-DLX-WBR-WH LED Down Light - White Housing with White/Blue/Red

The Shadow-Caster SCM-DLX Series Down Light delivers versatile marine lighting with three color options in a sleek white powder-coated housing. This premium LED down light features a 3-inch overall diameter with an all-glass reveal, making it perfect for T-tops, cabins, towers, and both interior and exterior overhead applications on boats and yachts. The tri-color design allows you to switch between white, blue, and red lighting to match your mood or functional needs.

Key Features:

• Three color options: white, blue, and red with easy switching capability
• Soft start technology that gently ramps brightness over 2 seconds
• Power toggle feature for adjusting brightness and changing colors
• 120-degree wide-angle viewing for optimal light spread
• True white LED technology for superior color performance
• High-efficiency switch mode power supply for reliable operation
• Waterproof IP67-rated low-profile aluminum housing
• All-glass reveal provides a modern, premium appearance
• Shadow-NET interface included for advanced control options

Technical Specifications:

• Light output: 300 lumens
• Beam angle: 120 degrees
• Power consumption: 3 watts
• Input voltage: 10-30V DC (250mA at 12V, 125mA at 24V)
• Color temperature: 6200 Kelvin cool white
• Overall diameter: 3 inches (76mm)
• Mounting height: 0.175 inches (4mm)
• Required mounting hole: 2 inches
• Durable glass lens with IP67 waterproof protection

Package Includes:

• SCM-DLX-WBR-WH down light fixture
• Flush-mounting bracket with three #4 x 0.5-inch SS316 Phillips head screws
• Quick start installation guide
• Standard 2-year manufacturer warranty
