The REDARC RedVision Manager30 Kit (TVMSKIT05-NA) combines REDARC's award-winning Manager30 Battery Management System with the innovative RedVision total vehicle management system to deliver comprehensive control and monitoring of your auxiliary power system. This complete solution allows you to manage on-board devices and track battery state of charge through an intuitive in-vehicle display or mobile app.
RedVision Total Vehicle Management System
The RedVision system provides centralized control and monitoring for your entire auxiliary power setup. Control lights, inverters, water pumps, televisions, electric steps, refrigerators, and other devices directly from the touchscreen display or mobile app. Monitor up to 6 separate water tank levels and temperature sensors. When integrated with the Manager30, you gain real-time visibility into battery voltage, current flow, state of charge, and power consumption data.
Manager30 Battery Management System
The Manager30 is a 30-amp DC-DC battery charger designed for charging auxiliary batteries in recreational vehicles, marine vessels, and off-grid applications. This multi-stage charger accepts inputs from vehicle alternator, 110V AC shore power, and solar panels to optimize charging performance. Compatible with all major battery types including Lithium, AGM, Gel, Calcium, and traditional Lead Acid batteries.
Key Features:
- Integrated power distribution, protection, and control in a single system
- 30-amp DC-DC charging from alternator, AC, and solar inputs

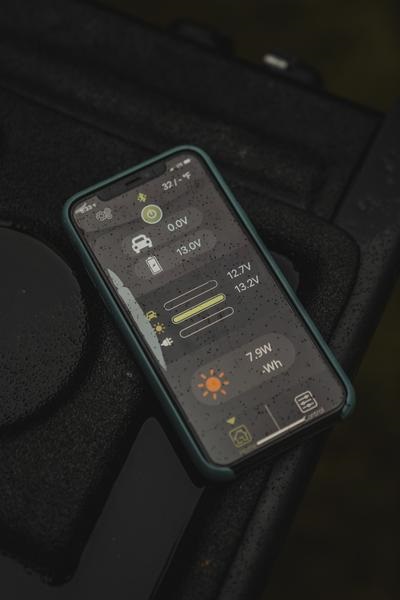

- Bluetooth connectivity for iOS and Android mobile app control
- Touchscreen in-vehicle mounted display with customizable home screen
- Monitor up to 6 water tank levels and temperature sensors
- Switch devices on/off remotely including lights, pumps, and appliances
- Real-time battery monitoring with voltage, current, and state of charge data
- Functions as battery isolator, load disconnect controller, and solar regulator
- Multi-stage charging algorithm optimized for auxiliary battery health

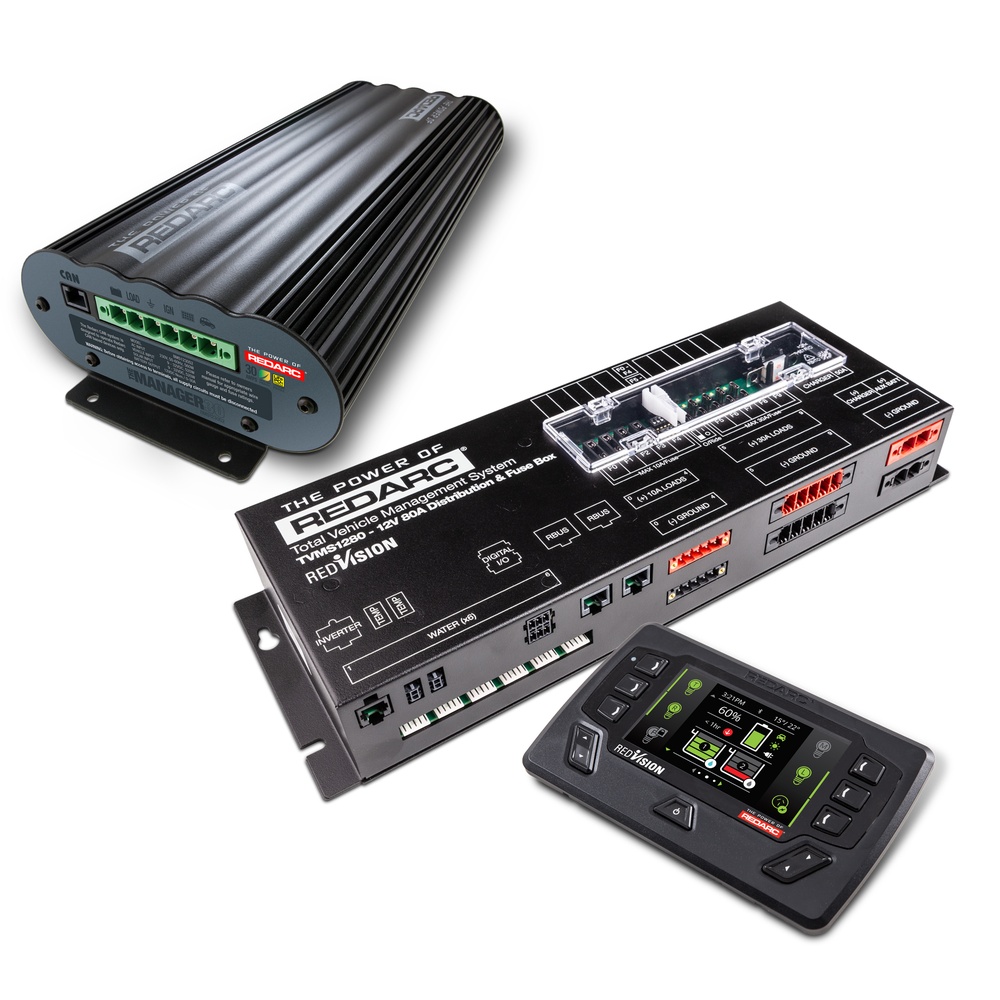

Kit Includes:
- RedVision Distribution Box with integrated power management
- RedVision In-Vehicle Mounted Touchscreen Display
- Manager30 Battery Management System main unit
Ideal for RVs, camper vans, overland vehicles, boats, and off-grid applications requiring sophisticated battery management and device control capabilities.
