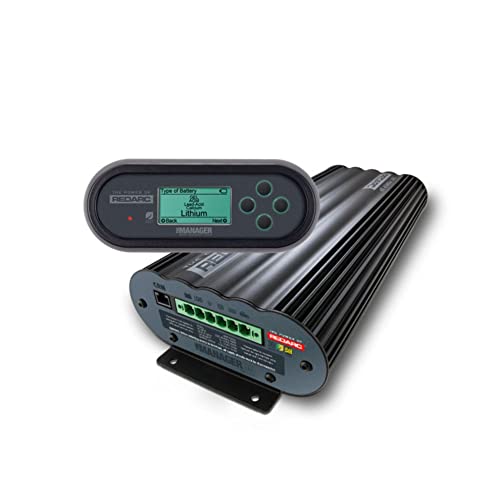

The REDARC Manager30 S3 (BMS1230S3-NA) is an advanced, all-in-one battery management system designed for automotive, RV, marine, and off-road applications. This intelligent unit combines a 30-amp DC-DC battery charger, solar regulator (up to 25A), and load disconnect functionality into a single compact housing, providing complete battery charging and maintenance for auxiliary battery systems.
Key Features:
- 30-amp DC-DC charging from vehicle alternator with smart multi-stage charging algorithm
- Integrated 25-amp MPPT solar regulator for optimal solar panel efficiency
- Universal battery compatibility: lead acid, gel, calcium, AGM, and lithium iron phosphate (LiFePO4)
- Automatic load disconnect protection prevents over-discharge of auxiliary battery
- Remote monitoring capability via Bluetooth using the REDARC RedVision app
- Advanced Green Power Priority mode maximizes solar charging before alternator engagement
- Suitable for 12V auxiliary battery systems with input voltage range of 9-32V DC
- IP67 weatherproof rating for harsh environmental conditions
The Manager30 S3 automatically selects the optimal charging profile for your specific battery type, ensuring maximum battery life and performance. Its intelligent charging algorithm adjusts voltage and current based on battery condition, temperature, and state of charge. The integrated solar input maximizes renewable energy harvest while the vehicle alternator provides backup charging when needed, making it ideal for extended off-grid adventures, work vehicles, and recreational applications.
This North American version (BMS1230S3-NA) is specifically configured for the US and Canadian markets with appropriate voltage settings and compliance certifications. Installation requires basic electrical knowledge, and the unit includes multiple safety protections including reverse polarity, over-temperature, over-voltage, and short circuit protection.
