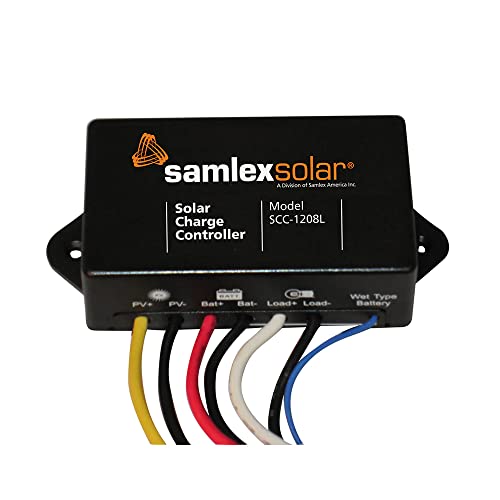

Samlex SCC-1208L 12V 8A Solar Charge Controller

The Samlex SCC-1208L is a microcontroller-based solar charge controller designed for 12V nominal solar panel systems and 12V battery banks. This intelligent controller manages up to 150 watts of solar power using advanced 3-stage charging (Bulk, Absorption, Float) to ensure complete battery capacity restoration and extended battery lifespan.

Key Features:

• Microcontroller-based automatic operation for intelligent solar power management
• 3-stage charging algorithm (Bulk, Absorption, Float) for optimal battery health
• Compatible with flooded/wet cell and sealed AGM batteries
• Totally sealed weather-resistant design with IP65 ingress protection rating
• Built-in automatic light control turns lights on at dusk and off at dawn
• MOSFET-based reverse current blocking prevents nighttime battery discharge
• Comprehensive protection: overload, over-temperature, battery under/over voltage, and reverse polarity
• Wide operating temperature range from -40°C to +60°C (-40°F to +140°F)

Technical Specifications:

• Nominal system voltage: 12V DC
• Maximum charging current: 8 amps
• Maximum solar panel capacity: 150 watts
• Dimensions: 3.8" L × 1.8" W × 1.0" H
• Weight: 0.28 lbs
• Certifications: FCC, CE, IP65
• Warranty: 5-year limited

Ideal Applications:

• Off-grid mobile and rural power systems
• Remote equipment power supply
• Oil and gas industry monitoring systems
• Traffic control, security, and environmental monitoring
• Solar water pumping systems
• Remote signaling and communications equipment

The compact, splash-proof design makes the SCC-1208L perfect for marine, RV, and remote installation applications where reliable solar charging is essential.
