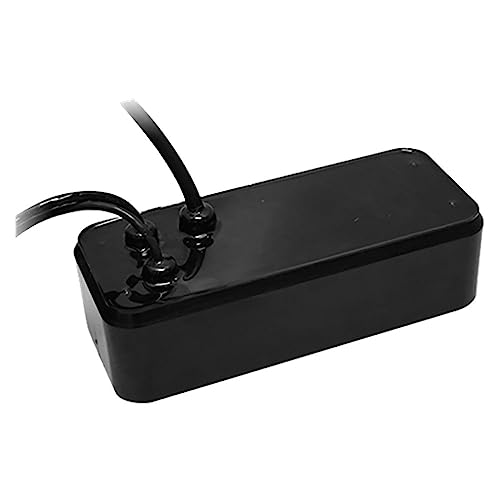

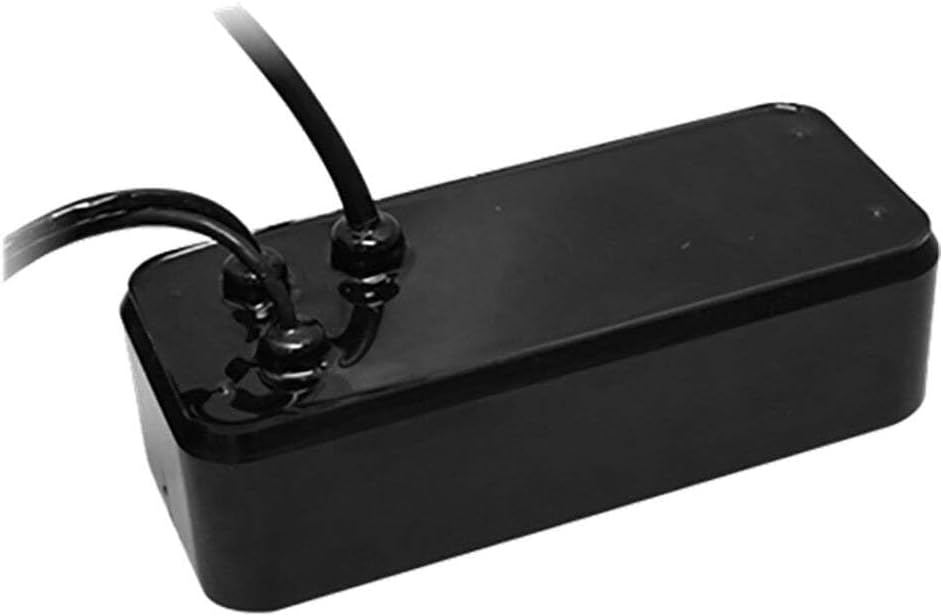

Furuno 165T/275LHW-12P Pocket Mount CHIRP Transducer for DFF3D

The Furuno 165T/275LHW-12P is a pocket mount combination transducer designed specifically for use with DFF3D sonar and TZT3 multi-function displays. This innovative transducer integrates both DFF3D multi-beam sonar elements and dual-frequency CHIRP elements in a compact housing measuring 12" L x 5" W x 3.5" H, making it ideal for installations where space is at a premium.

Key Features:

• DFF3D multi-beam sonar operating at 165 kHz for detailed 3D underwater imaging
• Low-frequency CHIRP range: 42-65 kHz with 25° to 16° beamwidth for deep water performance
• High-frequency CHIRP range: 150-250 kHz with 25° beamwidth for superior target separation
• Built-in motion sensor for accurate orientation and heave compensation
• Integrated temperature sensor for water temp monitoring
• 12-meter (39.4 ft) cable length included
• Pocket mount design for clean, through-hull installation

This transducer is optimized for boats equipped with both a TZT3 display and DFF3D sonar module, providing comprehensive fishfinding and bottom mapping capabilities. The combination of traditional CHIRP sonar with DFF3D's multi-beam technology delivers exceptional underwater visualization from shallow to deep water applications.
