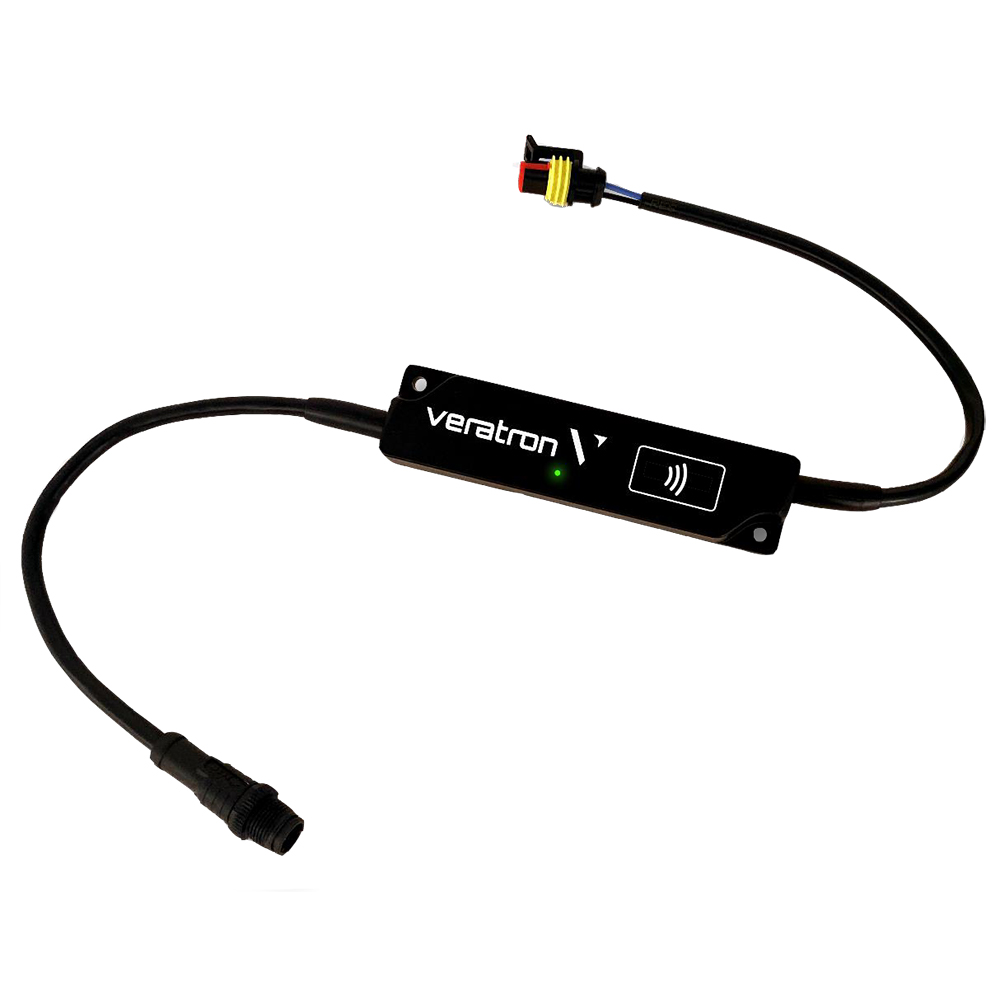

VDO Gauges B00042201 Veratron LinkUp Gateway Analog to NMEA 2000 Converter

The VDO Veratron LinkUp Gateway provides a seamless solution for converting analog sensor data to NMEA 2000 format, enabling integration of traditional resistive-type sensors with modern marine electronics networks. This compact gateway device eliminates the need for complex rewiring while maintaining full NMEA 2000 certification compliance.

Key Features:

• Wireless NFC configuration using free LinkUp mobile app for iOS and Android devices
• Tap-to-configure technology transfers sensor parameters instantly without external power
• Powered directly from NMEA 2000 backbone, simultaneously supplying power to connected sensor
• Bi-directional communication allows programming and data recovery
• LED status notification for easy troubleshooting
• IPX7 waterproof rating for reliable marine environment performance
• No NMEA 2000 certification required for installation

Compatible Sensor Types:

• Fuel level monitoring
• Oil and boost pressure
• Fresh water and waste water tank levels
• Oil, gear oil, and coolant temperature
• Trim tab position
• Rudder angle indication

Technical Specifications:

• Operating voltage: 6-16.5V DC (nominal 12V from NMEA 2000 network)
• NMEA 2000 connection: Standard M12 plug with 25cm cable
• Sensor connection: Superseal 2-pin female connector with 25cm cable
• Built-in passive NFC antenna for wireless configuration
• IPX7 waterproof protection rating

The LinkUp Gateway simplifies the integration of analog sensors into NMEA 2000 networks by replacing traditional gauge wiring with a single intelligent interface. Configure sensor type, instance number, and warning thresholds using your smartphone, then tap the device to instantly transfer settings—no additional power source needed for programming.

Sold individually. Mating sensor connector (Superseal 2-pin male) required for installation.
