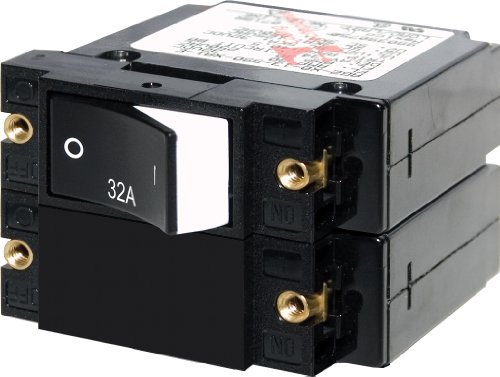

Blue Sea Systems 7575 A-Series Double Pole 32A Circuit Breaker

The Blue Sea Systems 7575 A-Series Raised Rocker Circuit Breaker provides reliable overcurrent protection for marine electrical systems. This double pole, 32-amp circuit breaker features magnetic hydraulic technology with a trip-free design that cannot be held in the "ON" position during fault conditions, ensuring superior safety and protection.

Key Features:

• Double pole configuration for complete circuit isolation
• Raised rocker actuator with color indicator for "OFF" position
• Trip-free magnetic hydraulic design prevents override during faults
• International ON/OFF symbols support vertical or horizontal mounting
• Wide operating temperature range: -40°C to 85°C
• High interrupt capacity: 3000A @ 240V AC, 5000A @ 32V DC
• Stainless steel terminals and mounting hardware for corrosion resistance

Technical Specifications:

• Amperage Rating: 32A AC/DC
• Maximum Voltage: 120V AC / 240V AC / 32V DC
• Number of Poles: 2
• Terminal Screws: #10-32 stainless steel (14 in-lb torque)
• Mounting Screws: #6-32 stainless steel (6 in-lb torque)
• Switching Cycles: 10,000
• Weight: 0.38 lbs

Ideal for marine, RV, and other mobile applications requiring reliable circuit protection in demanding environments. UL 1077 recognized and meets industry standards for supplementary overcurrent protection.
