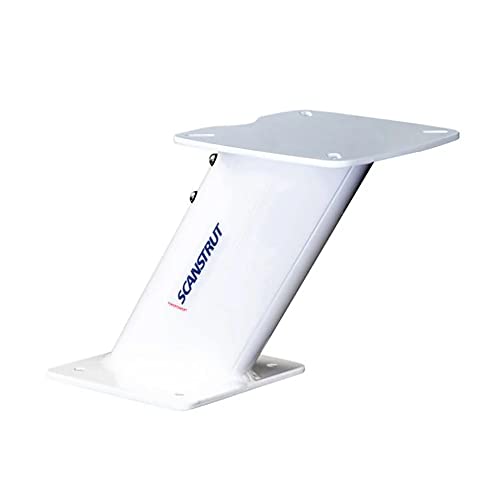

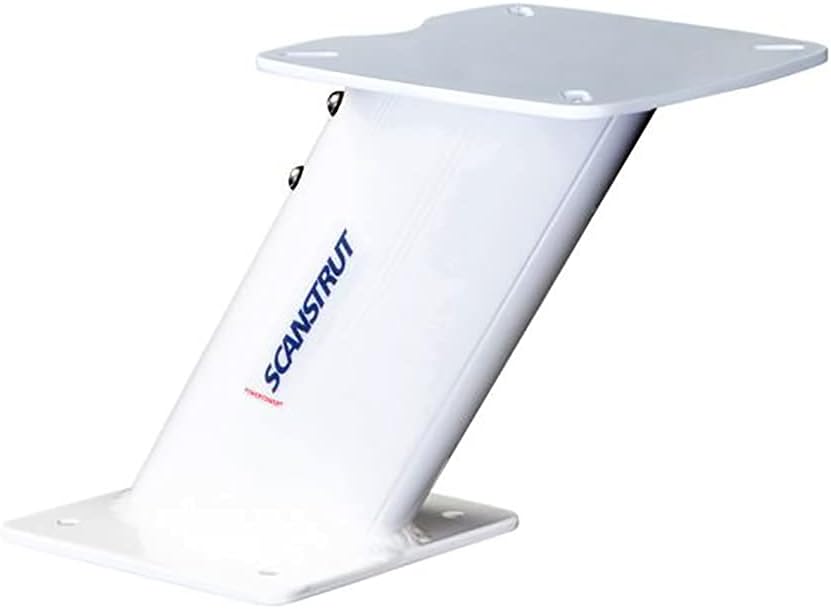

Scanstrut APT-F-250-02 Aluminum PowerTower Radar Mount 10" Forward Lean

The Scanstrut APT-F-250-02 Aluminum PowerTower is a premium forward-leaning radar mount engineered to elevate dome-style radar antennas for optimal performance. Designed for installation on powerboat roofs, T-tops, flybridges, or radar arches, this mount provides a clear view of the horizon while maximizing radar range and target detection in all conditions.

Key Features:

• Monocoque construction from marine-grade aluminum with no joints for superior strength and durability
• Forward-leaning design at 33° angle positions radar for optimal coverage
• 10-inch (250mm) height elevates antenna clear of obstructions
• Pre-drilled mounting holes allow direct radar installation without modifications
• Cable-friendly design eliminates need to cut or remove connectors during installation
• Compatible mounting points on rear for accessory light bars
• Premium marine finish resists corrosion in harsh saltwater environments

Wide Compatibility:

• Furuno: 1621, 1622, 1623, 1715, 1724, 1734, 1824, 1832, 1834, 1835, DRS2D, DRS2D-NXT, DRS42DL, DRS42DL+, DRS4D, DRS4D-NXT, DRS4W, 18" and 24" NavNet models
• Humminbird: AS 21RD4KW
• Lowrance: 3G/4G, LRA-1800, RB714A, DX42, LRA-2400 HD
• Simrad: 3G/4G, GB40, NX40/45, NSE8/12, RB712A, DX42S, DX64S
• Also compatible with: Intellian i1, Interphase Mini RE-1/RE-8, JRC 1000/1500/1800/2000 series, Koden 2kW 12", Navman 8000 series, Nobletec 2kW, Northstar M Series/8000i, Seiwa SWR-1/8/9, Sitex MDS series, Techmarine T-72 series

Technical Specifications:

• Material: Marine-grade aluminum
• Height: 9.84 inches (250mm)
• Mounting angle: 33° forward lean
• Radar type compatibility: Dome-style radars

Package Includes:

• PowerTower mount
• Mounting hardware (surface mounting screws not included)
• Installation manual

The APT-F-250-02 PowerTower delivers professional-grade radar mounting with exceptional strength, clean aesthetics, and versatile compatibility across major marine electronics brands.
