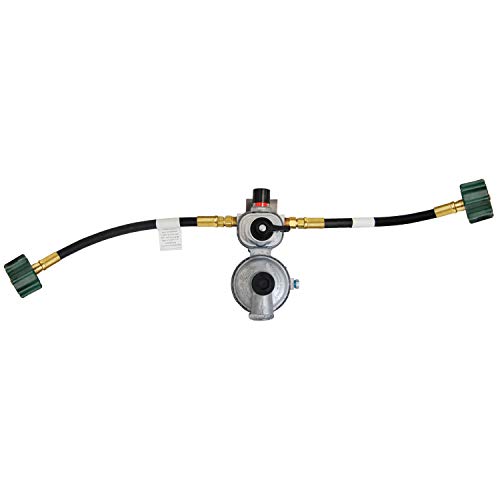

AP MEGR-253P-PT15 Excela-Flo 2-Stage Auto Changeover LP Regulator with 15" Hoses

The AP MEGR-253P-PT15 Excela-Flo is a two-stage automatic changeover LP regulator kit designed for RVs, motorhomes, trailers, small cottages, and cabins with dual-tank propane systems. This complete kit includes one MEGR-253 standard capacity automatic changeover regulator and two 15-inch propane pigtail hoses, assembled in a retail clamshell package.

Automatic Changeover Operation: This regulator automatically redirects LP gas vapor flow from an empty service cylinder to a reserve cylinder without interruption of service, ensuring continuous propane supply to your appliances. The easy-to-read visual indicator displays green during normal operation and changes to red when the service cylinder needs to be refilled.

Key Specifications:

• Capacity: 225,000 BTU Stage I / 150,000 BTU Stage II
• Inlet: 1/4" female inverter flare connection
• Outlet: 3/8" FNPT (female pipe thread)
• Set Point: 100 PSIG inlet @ 11" W.C. outlet flowing @ 30 SCFH
• Construction: Unfinished zinc die-cast body
• Relief Type: Internal spring-loaded diaphragm
• Hose Length: Two 15-inch pigtail hoses included

Safety and Compliance: This regulator meets UL, RVIA, and NFPA requirements and features internal relief for added safety. Backed by a limited 5-year warranty, the MEGR-253P-PT15 provides reliable, code-compliant propane regulation for your recreational vehicle or seasonal property.
