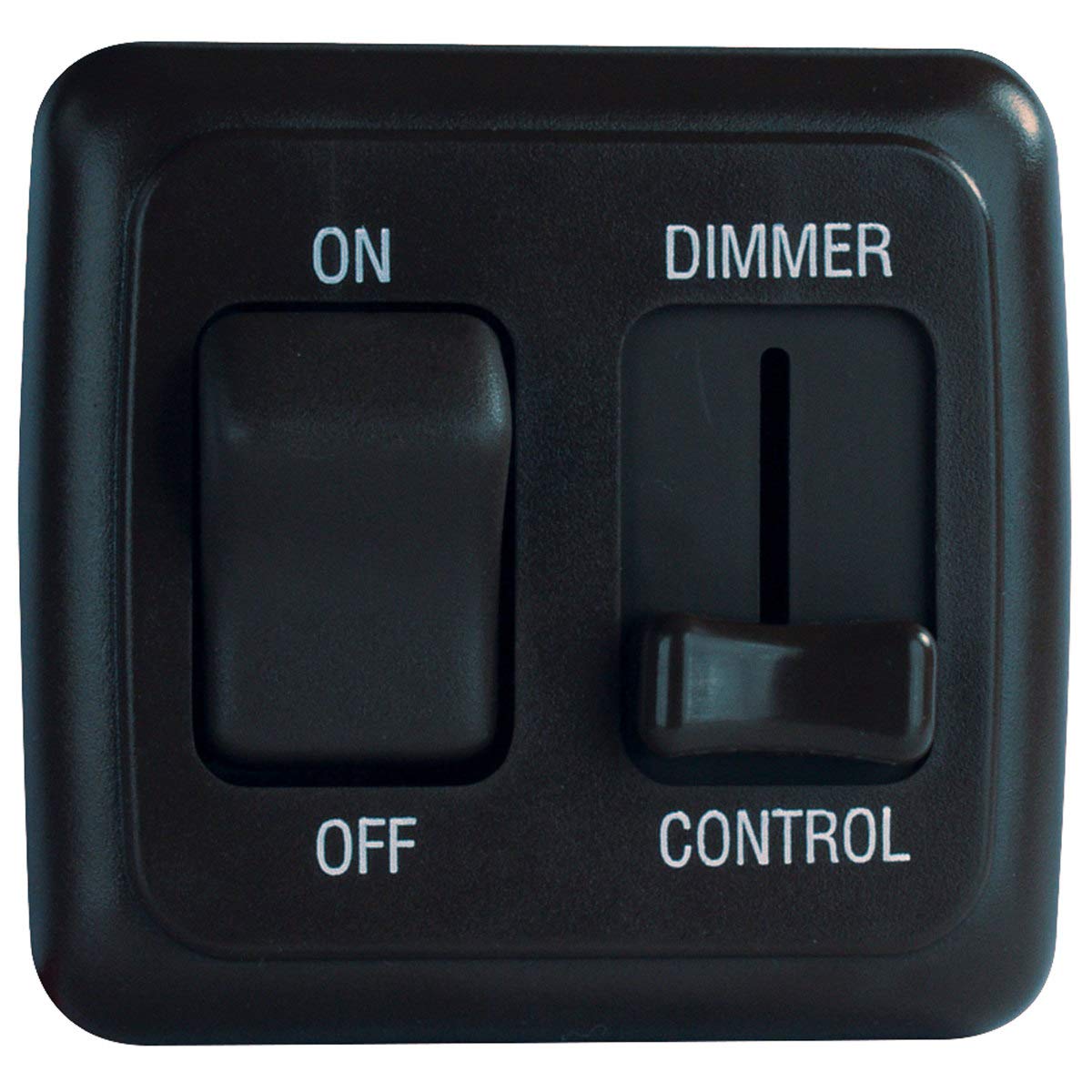

Valterra DGLD25VP Pulse Wave LED Dimmer Switch with On/Off - Black 12V DC

The Valterra DGLD25VP is a high-performance pulse wave modulation LED dimmer switch designed specifically for RV and marine applications. This versatile dimmer provides complete dimming control of any LED-compatible bulb or fixture, allowing you to adjust light output from full brightness down to 10 percent.

Key Features:

• Pulse wave modulation technology ensures smooth, flicker-free dimming of LED lights
• Integrated on/off rocker switch for convenient operation
• Easy 3-wire installation with standard wiring configuration
• Rated for 15 amp/12 volt DC applications
• Black finish complements modern RV interiors
• Slide dimmer function provides precise light control

Specifications:

• Overall dimensions: 2 inches x 3 inches
• Cutout required: 1-3/4 inches x 2-1/4 inches
• Mounting depth: 1 inch
• Voltage rating: 12 volt DC
• Maximum amperage: 15 amps (must be fused at no more than 10 amps)
• Minimum wire gauge: 14 AWG (10 AWG may be required for higher loads)

This Diamond Group dimmer switch by Valterra is ideal for upgrading RV interior lighting systems to modern LED technology while maintaining full dimming capability. Compatible with LED bulbs and fixtures rated for pulse wave modulation dimming.
