AP MEGR-253HP-PT15 Excela-Flo High Capacity 2-Stage LP Gas Regulator with 15" Hoses

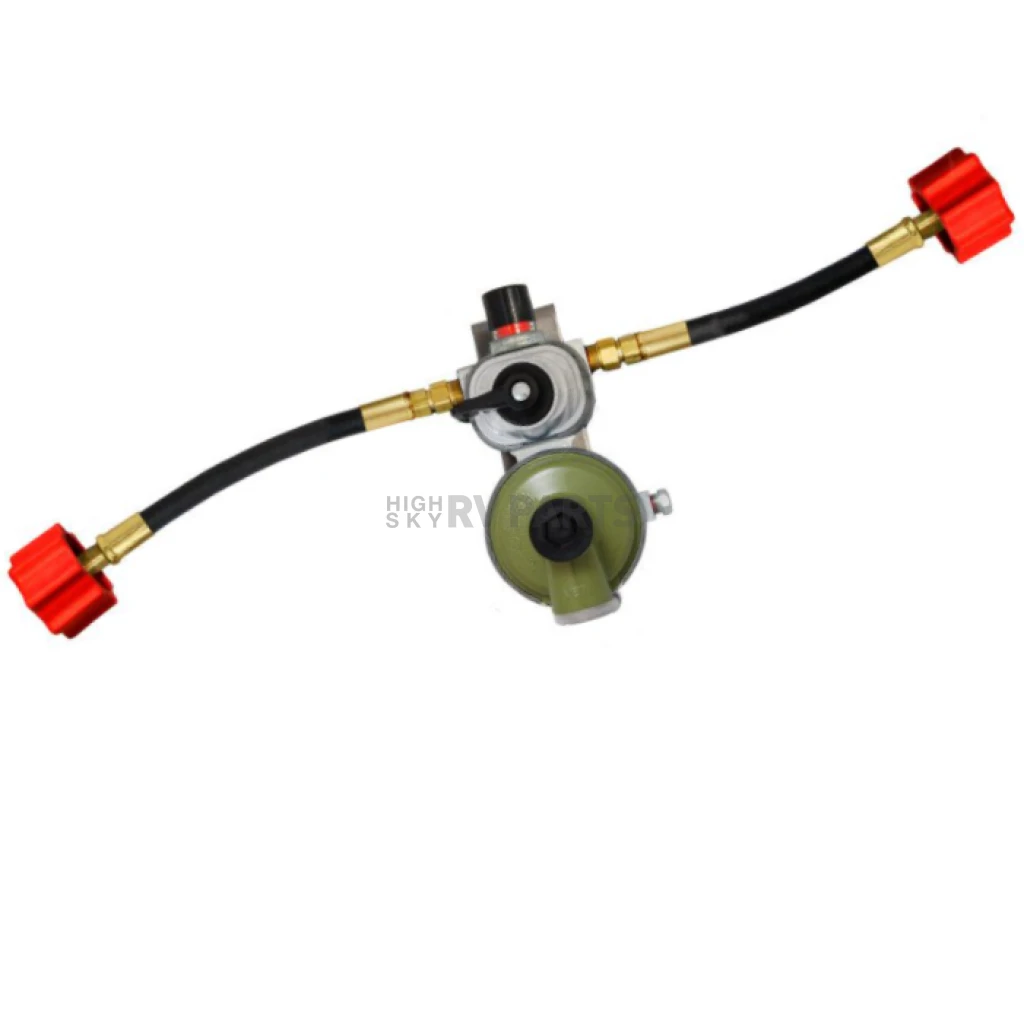

The AP MEGR-253HP-PT15 Excela-Flo is a high-capacity two-stage automatic changeover propane regulator kit designed for RVs, motorhomes, and trailers that require high BTU output. This complete kit includes the regulator body and two 15-inch high-flow Type I pigtail hoses with red nuts, specifically engineered for applications requiring more than 200,000 BTUs.

Key Features:

• Two-stage automatic changeover design redirects LP gas flow from empty service cylinder to reserve cylinder without service interruption
• High capacity output: 350,000 BTU first stage / 200,000 BTU second stage
• Easy-to-read visual indicator: green when in service, red when cylinder needs refilling
• 1/4-inch FNPT inlet x 3/8-inch FNPT outlet connections
• 11-inch water column outlet pressure, 100 PSIG inlet set point
• Zinc construction for durability and corrosion resistance
• Vertical mount configuration
• Includes two 15-inch high-flow pigtail hoses with excess flow and thermal link safety features
• UL, RVIA, and NFPA approved for safety compliance
• Five-year limited manufacturer warranty

The MEGR-253HP high-flow regulator system is ideal for modern RVs with multiple LP gas appliances operating simultaneously. The automatic changeover feature ensures uninterrupted propane supply while the color-coded indicator provides clear visual status of your propane system.
