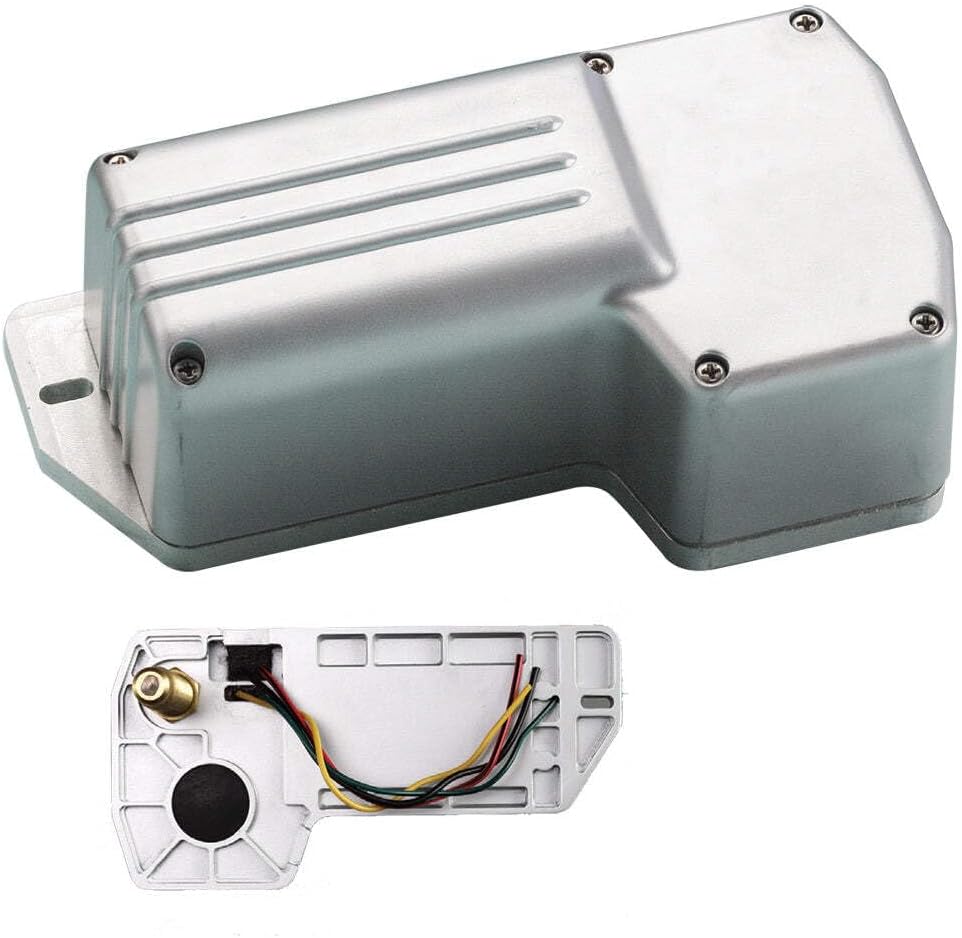

Marinco 71082 AFI 12V Waterproof Wiper Motor 2.5" Shaft 80° Sweep

The Marinco 71082 is a professional-grade 12V waterproof wiper motor designed for marine applications. Featuring a fully sealed powder-coated aluminum base and housing, this two-speed motor delivers reliable performance in harsh saltwater environments. The 2.5" shaft length and factory-set 80° sweep angle power a 22" Deluxe arm and blade combination or 20" Premier arm and blade combination.

Key Features:

• Fully sealed waterproof construction with powder-coated aluminum housing
• Chrome-plated solid brass knurled drive nut with brass and stainless steel driveshaft
• Two-speed operation with coast-to-park function
• Factory pre-set 80° sweep angle, adjustable to 45° or 60°
• Adjustable right or left self-parking
• 0.625" (16mm) diameter shaft with 2.5" length
• RF shielded circuitry to minimize electrical interference
• Sealed 6" wire leads, 16 AWG
• Includes 5 amp fuse and holder (operating switch sold separately)

Technical Specifications:

• Voltage: 12V DC
• Stall torque: 109 in-lbs (125 kgf/cm; 12.3 Nm)
• Stall current: 11.5-13.0 amps
• No load current: 0.5-1.2 amps
• Dimensions: Approximately 7.75" L × 4" W × 2.75" D
• Direct replacement for AFI 2000 motor

This rugged wiper motor is engineered for continuous duty on boats, providing dependable windshield clearing in all weather conditions.
