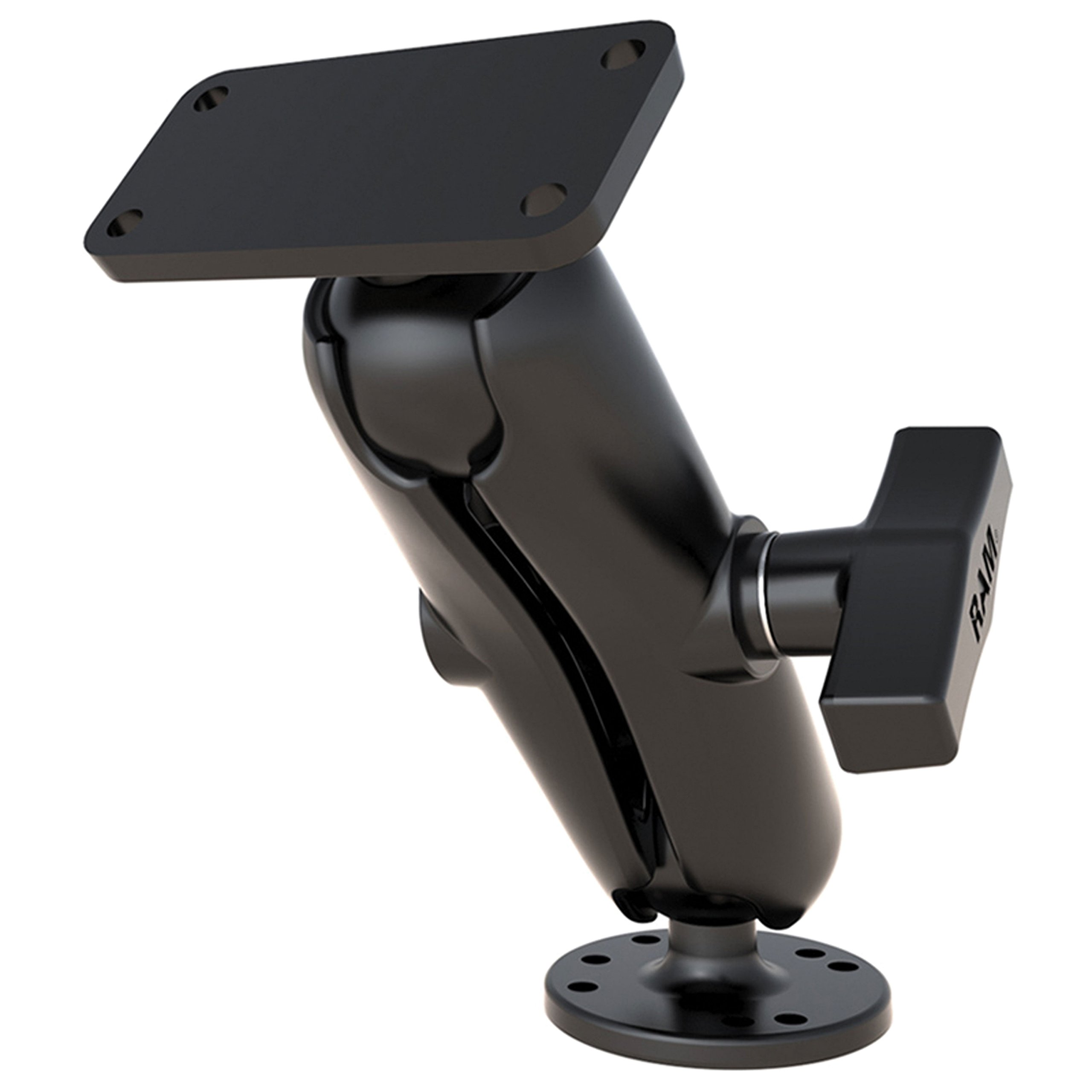

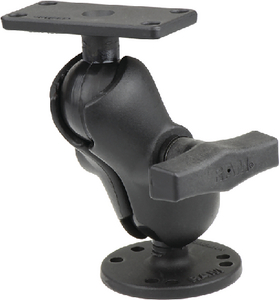

Ram Mounts RAM-202-153-B-202 Drill-Down Double Ball Mount for Humminbird Helix 5 Short Arm

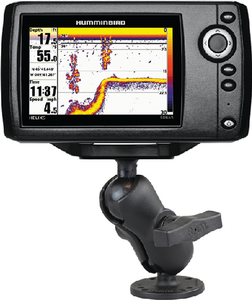

The RAM Mounts RAM-202-153-B-202 is a drill-down double ball mount designed specifically for the Humminbird Helix 5 fishfinder. Built from powder-coated, marine-grade aluminum, this mount delivers a rugged, corrosion-resistant solution for securing your electronics on the water.

Key Features:

• Short double socket arm with a 2.5" socket-to-socket length provides near-infinite adjustability while keeping a low-profile footprint
• 2.5" diameter round base features the Universal AMPs hole pattern for straightforward drill-down installation on flat surfaces

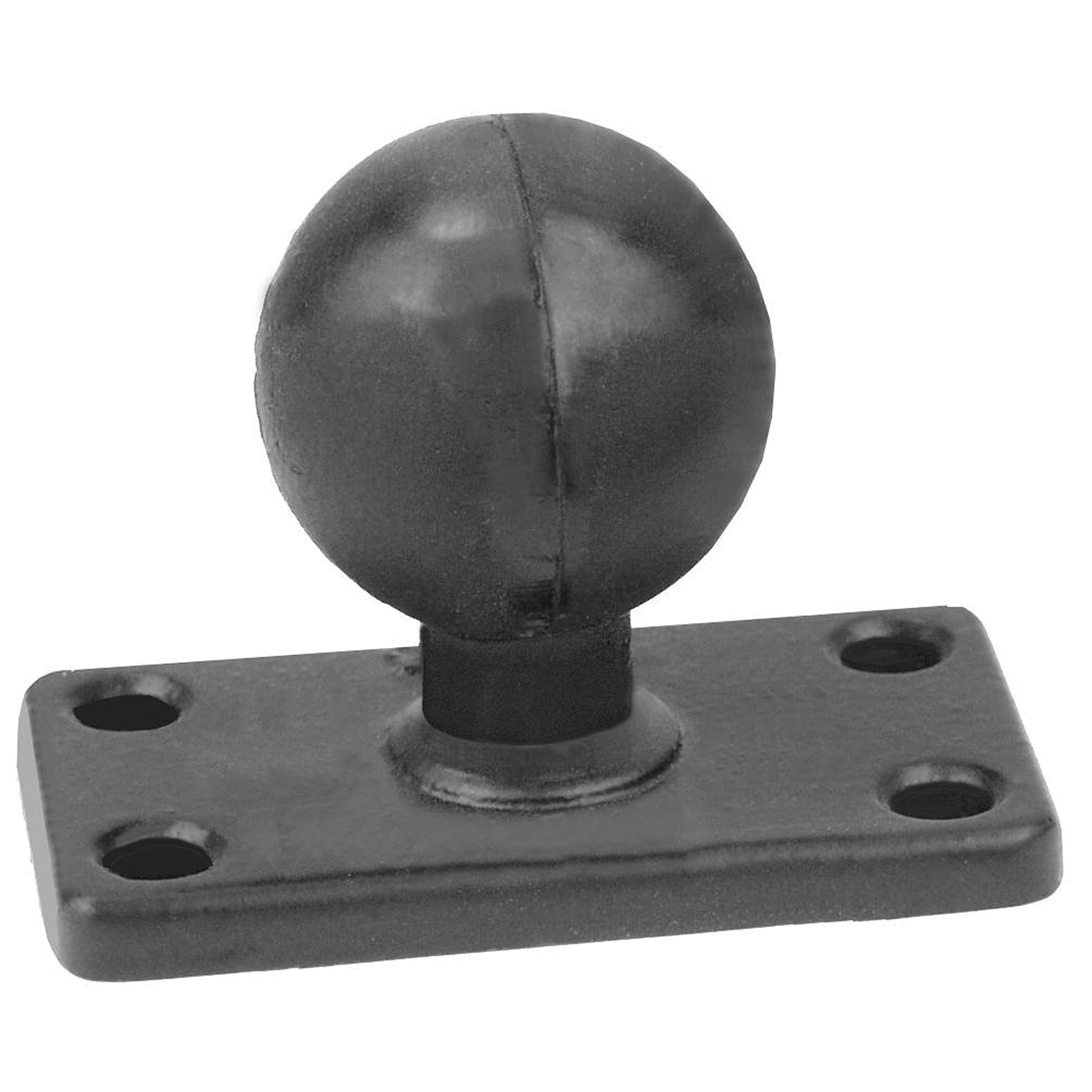

• 1.5" × 3" rectangular mounting plate designed to interface directly with the Humminbird Helix 5 gimbal bracket
• Rectangular plate includes four mounting holes with a 1" × 2.5" center-to-center hole pattern
• C size (1.5") ball system with overmolded rubber ball helps absorb shock and vibration
• Supports up to 10 lbs. in most standard applications
• Marine-grade aluminum construction resists corrosion in harsh saltwater and freshwater environments

Specifications:

• Overall Height: 5.225"
• Socket-to-Socket Length: 2.5"
• Round Plate Hole Pattern: 4-Hole AMPS (1.181" × 1.496") & 3-Hole 120° (1.812" diameter)
• Rectangular Plate Hole Pattern: 1" × 2.5"
• Ball Size: C Size (1.5")
• Weight Capacity: 10 lbs.
• Weight: 0.93 lbs.

Note: Mounting screws for attaching to the fishfinder gimbal bracket are not included. For marine installations, stainless steel hardware is recommended to prevent corrosion. The fishfinder itself is not included.
