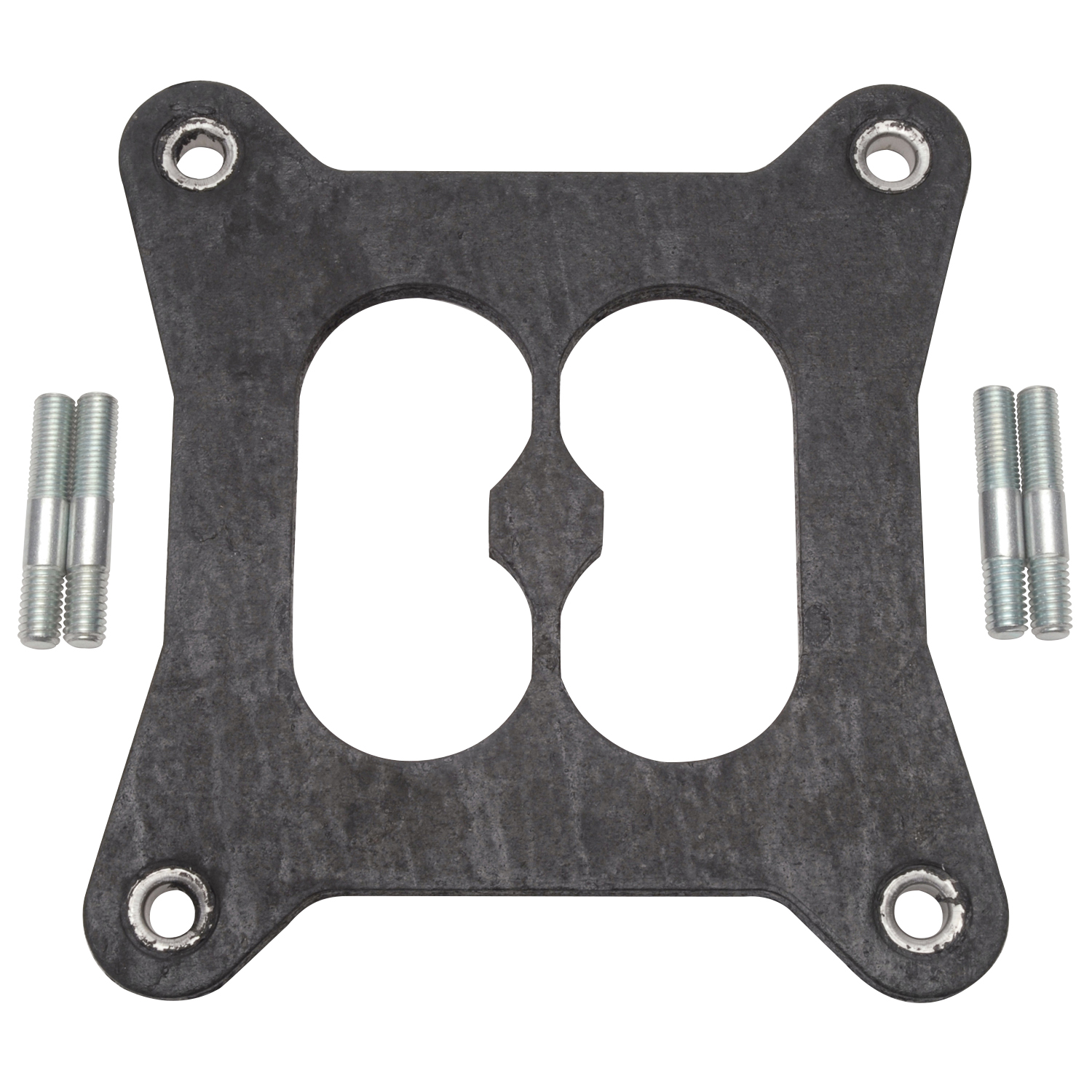

Edelbrock 9266 Heat Insulator Gasket Divided 4150 Square-Bore 0.320" Thick

The Edelbrock 9266 Heat Insulator Gasket is engineered to eliminate fuel percolation issues on Edelbrock Performer Series carburetors subjected to extreme under-hood temperatures. This 0.320-inch thick phenolic gasket creates a thermal barrier between the carburetor and intake manifold, preventing heat transfer that can cause fuel boiling and vapor lock conditions.

Key Features:

• Divided center design specifically for dual-plane Performer and RPM intake manifolds
• Compatible with 4150-style square-bore carburetors
• 0.320" thickness provides effective heat insulation
• Rigid phenolic construction eliminates the need for separate adapter plates
• Can replace Edelbrock square-bore adapter plate #2732
• Requires longer carburetor mounting studs (not included)

Installation Notes:

Before installation, verify adequate air cleaner-to-hood clearance to accommodate the additional 0.320" height. Installation requires removal of existing short carburetor studs and replacement with longer studs to accommodate the gasket thickness. The gasket mounts directly against the intake manifold with the carburetor installed on top.

This heat insulator gasket is essential for high-performance applications where engine bay temperatures can cause fuel delivery problems, ensuring consistent carburetor performance in demanding conditions.
