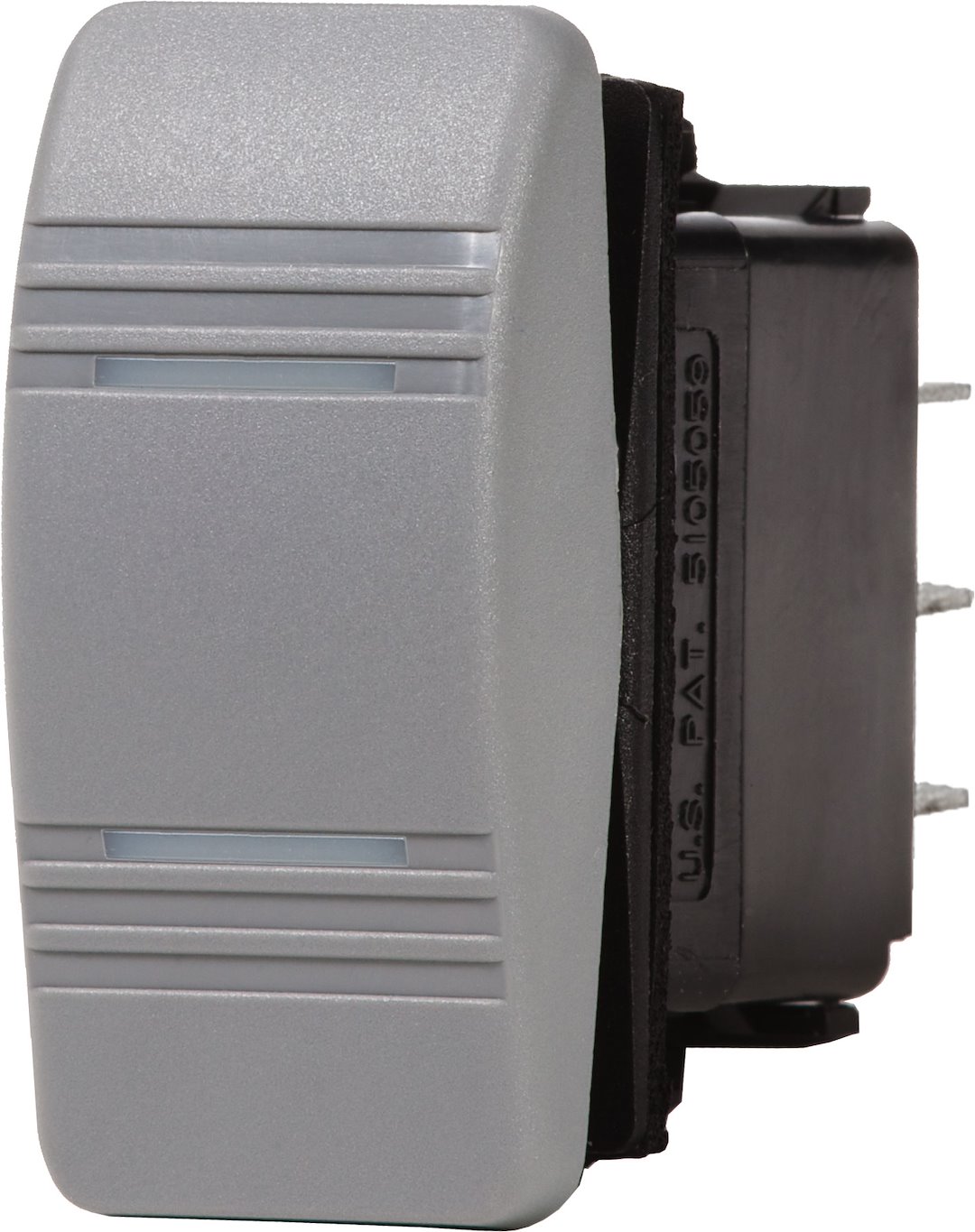

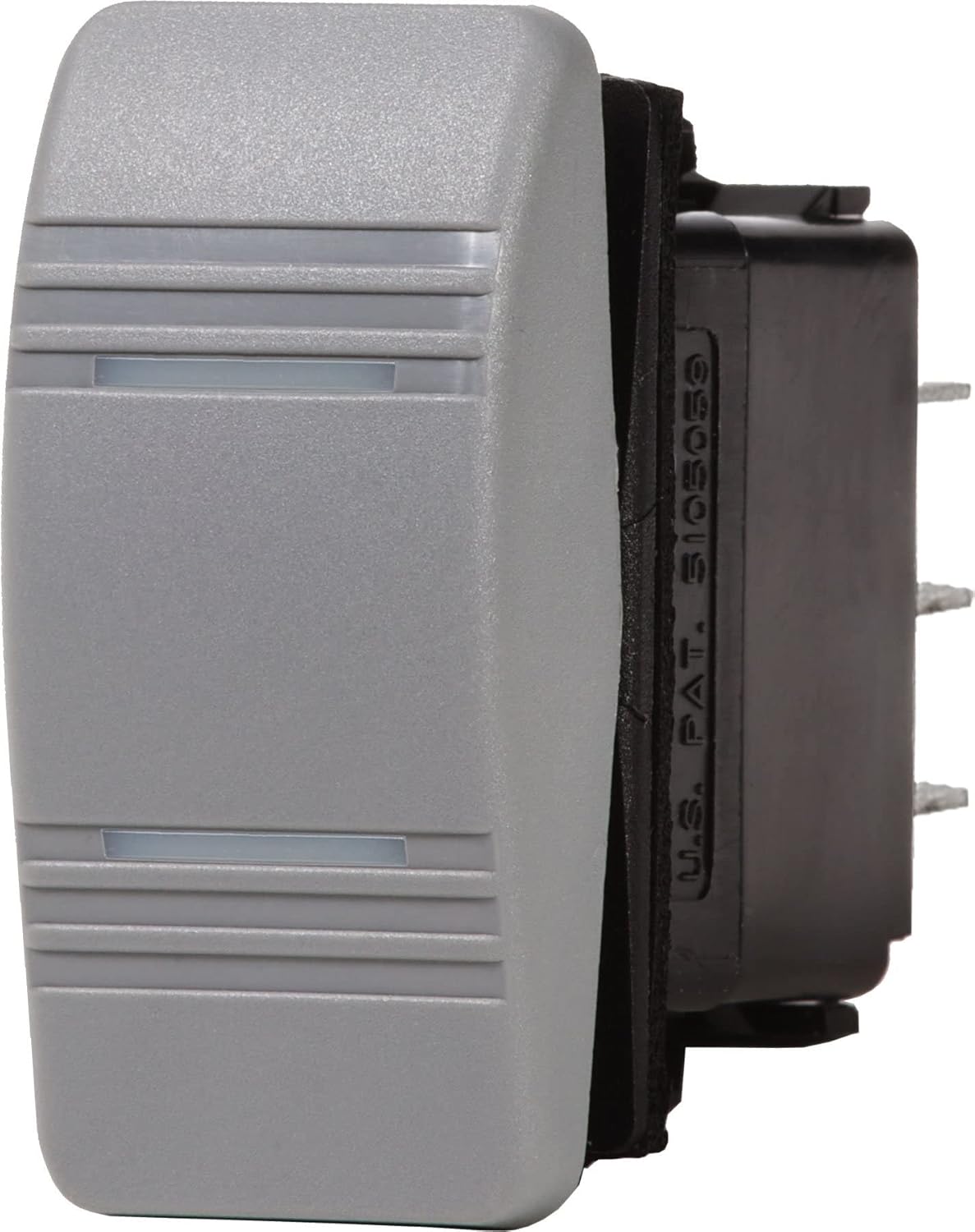

Blue Sea Systems 8232-BSS Water Resistant Contura III SPDT Switch Gray On-Off-On

The Blue Sea Systems 8232 Contura III water-resistant rocker switch is engineered for demanding marine, RV, and powersports electrical systems. This single-pole, double-throw (SPDT) switch features an On-Off-On configuration that allows independent control of two separate circuits from a single gray actuator.

Key Features:

• Rated for 20 amps at 12V DC or 15 amps at 24V DC
• Embedded dual LED indicators illuminate to show "On" position (18mA current draw)
• Vibration, shock, thermoshock, moisture, and salt spray resistant construction
• Internal and external gasket panel seals for superior water resistance
• Ignition protected—safe for installation aboard gasoline-powered boats
• Meets UL 1500 and ISO 8846 ignition protection requirements, CE marked
• Wide temperature range: -40°C to 85°C (-40°F to 185°F)
• Long-life LEDs rated for 100,000 hours half-life

Designed specifically for mounting in Blue Sea Systems Contura water-resistant panels and switch mounting panels. The rectangular mounting hole measures 1.45" x 0.83". Ideal for navigation lights, bilge pumps, accessories, and other dual-circuit marine applications requiring reliable switching in harsh environments.
