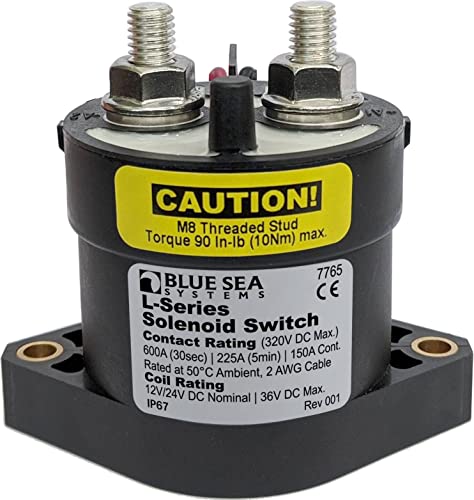

Blue Sea Systems 7765 L-Series Solenoid Switch 150A 12/24V DC

The Blue Sea Systems 7765 L-Series Solenoid Switch is a heavy-duty remote switching solution designed for medium to high-amperage DC applications. Rated for 150 amps continuous duty at 12V or 24V DC, this solenoid switch is ideal for controlling thrusters, windlasses, DC subpanels, inverters, and other power-hungry electrical loads on boats and marine vessels.

Key Features:

• 150A continuous duty rating for reliable performance
• 12V/24V DC compatible for versatile applications
• SPST (Single Pole Single Throw) normally open configuration
• Hermetically sealed contacts prevent corrosion and contamination in marine environments
• Remote activation via ON-OFF switch (Blue Sea 8230 switch sold separately)
• Advanced coil control circuit reduces heat generation and minimizes amperage draw
• Compact, marine-grade construction built for harsh environments

The L-Series solenoid design provides efficient remote switching without the voltage drop and heat generation associated with mechanical switches handling high amperage loads. The hermetically sealed contacts ensure long service life even in wet, corrosive marine conditions, while the optimized coil control circuit maintains reliable operation with minimal power consumption.
