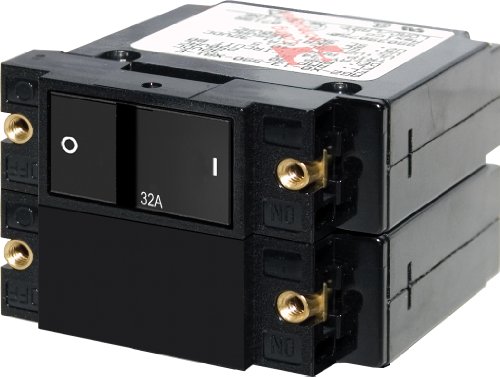

Blue Sea Systems 7415 A-Series Double Pole 32A Flat Rocker Circuit Breaker

The Blue Sea Systems 7415 A-Series circuit breaker provides reliable overcurrent protection for marine electrical systems with its magnetic hydraulic trip-free design. This double pole 32-amp circuit breaker features a distinctive flat rocker actuator with color indication for clear ON/OFF status visibility.

Key Features:

• Double pole configuration for simultaneous protection of two circuits
• Trip-free design prevents breaker from being held in ON position during fault conditions
• Color actuator clearly indicates OFF position for quick status verification
• International ON/OFF symbols support both vertical and horizontal mounting orientations
• Magnetic hydraulic technology provides accurate, temperature-compensated performance
• Stainless steel terminals and mounting hardware for corrosion resistance

Technical Specifications:

• Amperage Rating: 32A AC / 32A DC
• Maximum Voltage: 120V AC / 240V AC / 32V DC
• Interrupt Capacity: 3000A @ 240V AC / 1500A @ 240V AC (TUV) / 5000A @ 32V DC
• Operating Temperature Range: -40°C to 85°C
• Terminal Screw: #10-32 stainless steel (torque: 14 in-lb / 1.58 Nm)
• Mounting Screw: #6-32 stainless steel (torque: 6 in-lb / 0.68 Nm)
• Switching Cycles: 10,000
• Weight: 0.38 lbs (0.17 kg)

Ideal for panel mounting in boats, RVs, and other DC/AC electrical systems requiring reliable circuit protection. The compact flat rocker design fits standard panel cutouts while providing robust overcurrent protection.
