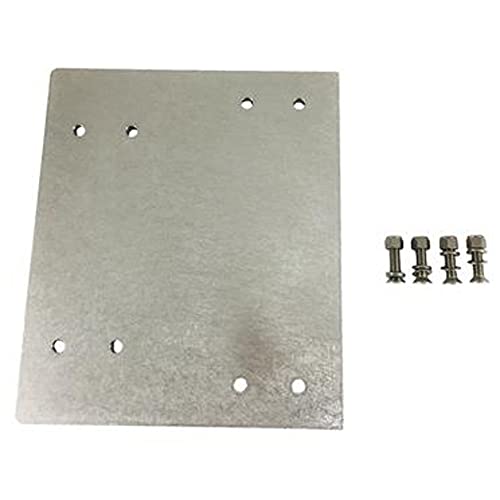

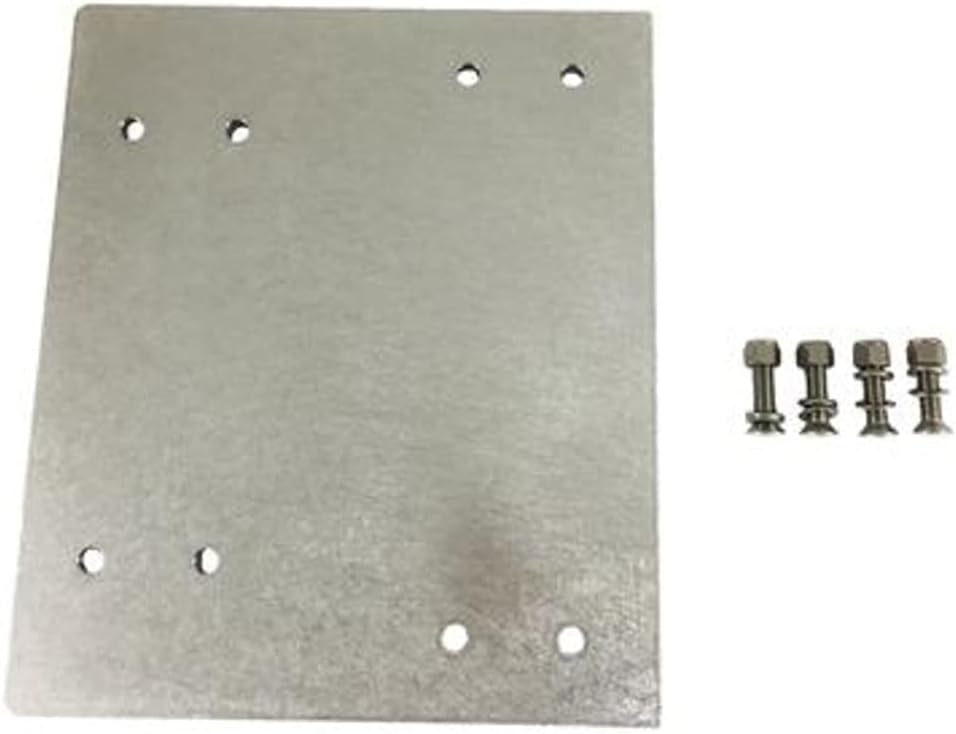

Bob's Machine 100-105001 Clamp-On Motor Adapter Plate for Outboard Motors

The Bob's Machine 100-105001 Clamp-On Motor Adapter Plate is an optional accessory designed for use with Bob's Machine Kick-Back Jac plates, allowing clamp-on style outboard motors to be mounted to the jack plate system. This adapter plate is rated for outboard motors up to 115 HP with BIA bolt pattern compatibility.

Key Features:

• Rated for outboard motors up to 115 HP maximum
• Delrin rollers and bearings for smooth, low-friction operation
• Motor tether attachment points for added safety
• Locking pins to prevent unwanted kickout during reverse operation and trailering
• Greaseable pivot points for easy maintenance
• 45-degree kick-up capability for clearing obstacles
• 5.5-inch offset for optimal motor positioning

Specifications:

• Width: 17.5 inches
• Height: 12 inches
• Weight: 28 lbs
• Offset: 5.5 inches
• Tilt Range: 45 degrees

Important Safety Information: This adapter plate should not be used to encounter obstructions at speeds over 5 MPH and only in the forward direction. It is not designed or intended to encounter obstructions while the boat is being operated in reverse.
