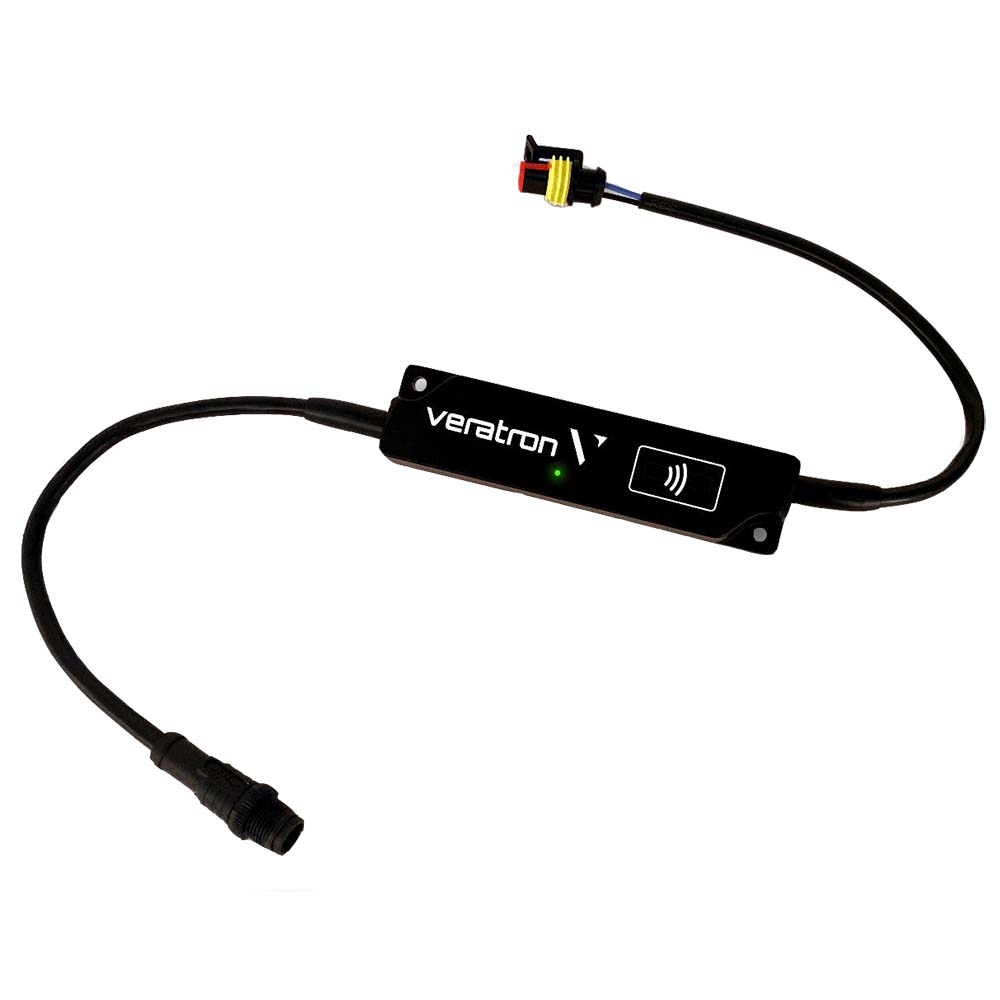

VDO Gauges B00042401 LinkUp J1939 to NMEA 2000 Gateway

The VDO Gauges Veratron LinkUp J1939 to NMEA 2000 Gateway is designed to bridge CAN engine data transmitted on the J1939 bus to the NMEA 2000 standard, making all engine and diagnostic information available on any NMEA 2000-capable display. This gateway converts critical engine data including RPM, engine hours, oil temperature and pressure, coolant temperature, boost pressure, fuel level, transmission data, and much more.

Key Features:

• NMEA 2000 certified gateway with SAE J1939 input signal compatibility
• Wireless configuration via companion mobile app using NFC technology—simply tap your smartphone to the device to transfer settings
• No external power supply required—powered directly from the NMEA 2000 network (≤100mA current draw)
• Standard M12 5-pin connector for plug-and-play NMEA 2000 network connection
• Waterproof sensor connection with IP X9/K protection rating
• Status LED for easy device monitoring and troubleshooting
• Explosion-proof housing certified for engine compartment installation per ISO 8846:1990
• Operating temperature range: -30°C to 80°C (-22°F to 176°F)
• Compact dimensions: 125mm x 32mm with 2x 25cm cables

The LinkUp Gateway eliminates the need for expensive converters and complex wiring, delivering a cost-effective solution for integrating modern engine data into your vessel's NMEA 2000 network. Compatible with engines from Volvo Penta (EVC-B and above), Yanmar, and other manufacturers using the J1939 protocol. Nominal voltage: 12V.

Note: One gateway required per engine. Additional adapter cables may be required depending on your specific engine manufacturer and model.
