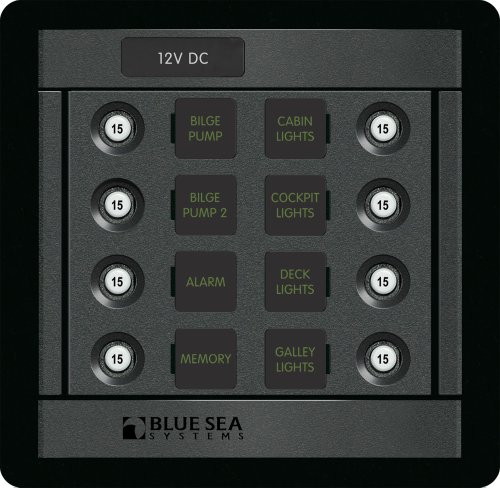

Blue Sea Systems 1450 DC Circuit Breaker Panel 8 Position Square Format

The Blue Sea Systems 1450 is a compact 8-position DC circuit breaker panel designed for high-density circuit protection in marine, RV, and other 12V/24V DC applications. This square-format panel provides organized, reliable protection for multiple electrical circuits in a space-efficient design.

Key Features:

• High-density circuit protection with 8 individual breaker positions
• Push-button reset circuit breakers with quick connect terminals for easy installation
• Square format design maximizes panel space efficiency
• Includes 30-label basic DC label kit for clear circuit identification
• Compatible with both 12V and 24V DC systems
• Maximum system capacity of 90 amps when properly fused and wired

Technical Specifications:

• Positions: 8 circuit breaker locations
• Nominal Voltage: 12V DC / 24V DC
• Maximum Amperage: 90A (dependent on appropriate fuse and wire sizing)
• Dimensions: 4.88" W × 4.75" H × 3.50" D
• Weight: 1.25 lbs

What's Included:

• Eight (8) 7056 push-button reset circuit breakers, 15 amp rating with quick connect terminals
• One (1) 4205 basic DC label kit with 30 black square format labels

This panel is ideal for organizing and protecting DC electrical circuits on boats, RVs, and other vehicles where reliable circuit protection and easy reset capability are essential. The included 15-amp breakers provide immediate functionality, while the labeled design ensures easy circuit identification and troubleshooting.
