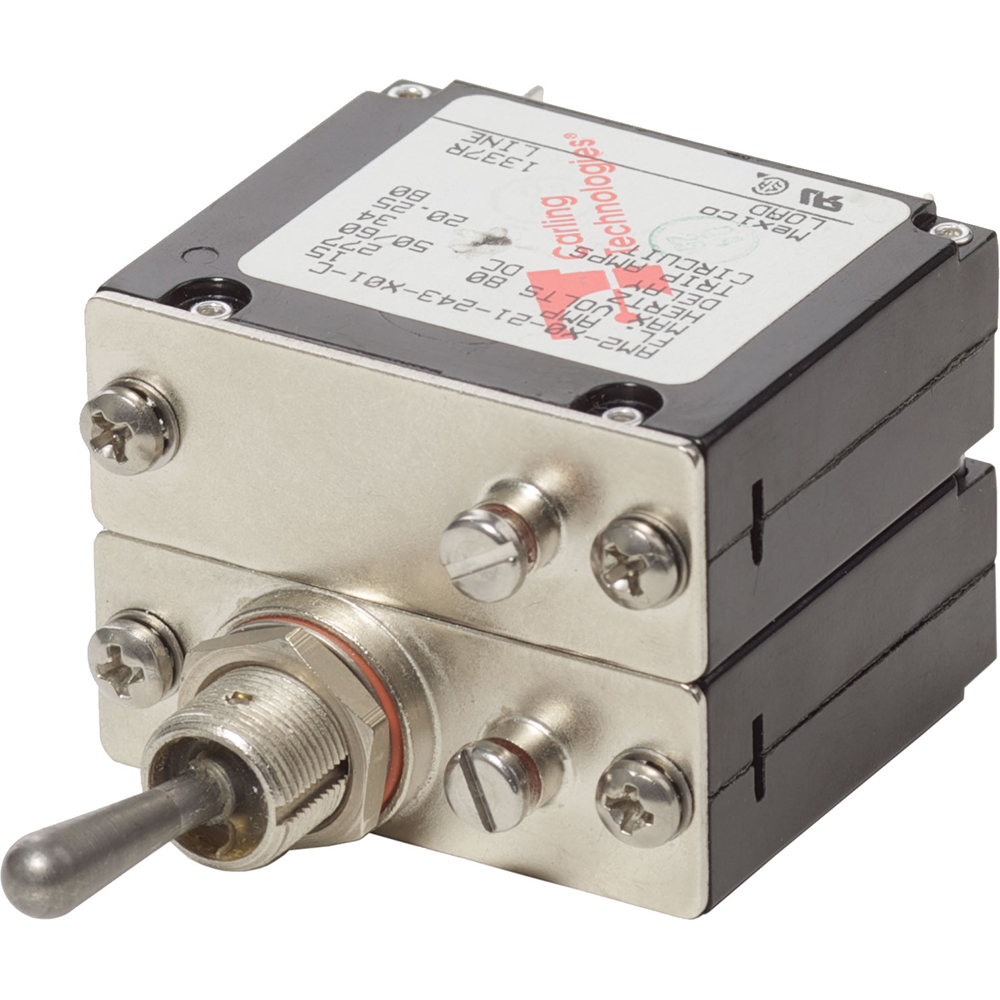

Blue Sea Systems 7312 COTS 15A Military Spec Circuit Breaker

The Blue Sea Systems 7312 is a COTS (Commercial Off-The-Shelf) Military Grade A-Series circuit breaker designed for demanding marine and industrial applications where military specifications may be required under CFR 46. This rugged 15-amp, 2-pole circuit breaker features magnetic hydraulic trip-free technology for reliable overcurrent protection.

Key Features:

• 15A dual-pole circuit breaker with metal toggle actuator for durability
• Rated for 277V AC / 65V DC applications with high interrupt capacity (1500A AC, 7500A DC)
• Magnetic hydraulic trip-free design prevents override during fault conditions
• Wide operating temperature range from -40°C to 85°C for extreme environments
• Stainless steel 1/2-32 hex mounting boss and #10-32 SS terminal screws
• UL 1077 recognized for supplementary overcurrent protection
• 6000 electrical / 4000 mechanical switching cycles for long service life

Specifications:

• Amperage: 15A
• Poles: 2
• Max Voltage: 277V AC, 65V DC
• Interrupt Capacity: 1500A AC, 7500A DC
• Mounting Nut Torque: 30 in-lb
• Terminal Screw Torque: 14 in-lb
• Weight: 0.13 lbs

Ideal for military-grade marine electrical systems, commercial vessels, and applications requiring robust overcurrent protection in harsh environments.
